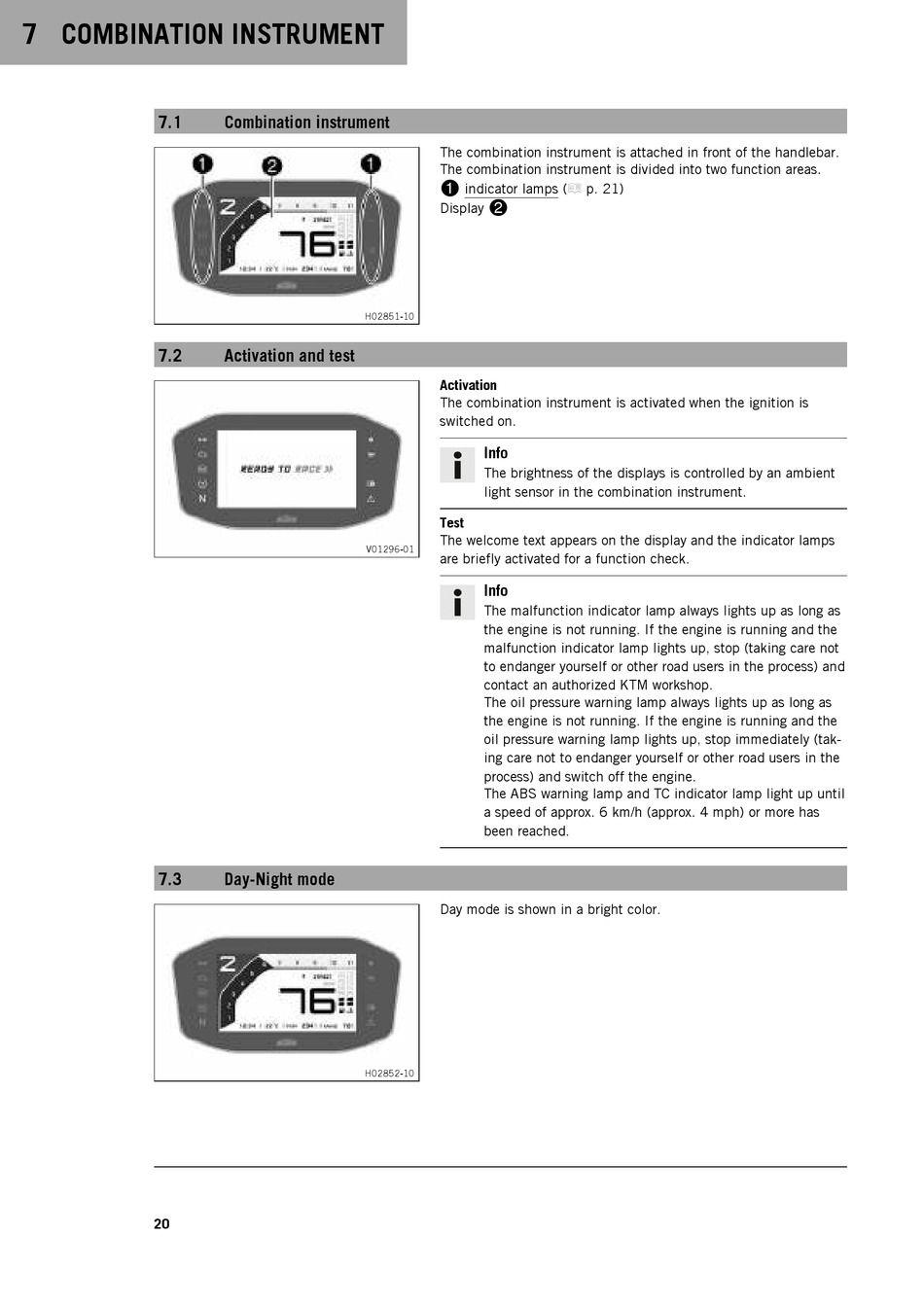

7 COMBINATION INSTRUMENT

7.1
7.2
7.3
20
Combination instrument
H02851-10

Activation and test

V01296-01

Day-Night mode

H02852-10
The combination instrument is attached in front of the handlebar.
The combination instrument is divided into two function areas.
1
indicator lamps ( p. 21)
2
Display
Activation
The combination instrument is activated when the ignition is
switched on.
Info
The brightness of the displays is controlled by an ambient
light sensor in the combination instrument.
Test
The welcome text appears on the display and the indicator lamps
are briefly activated for a function check.
Info
The malfunction indicator lamp always lights up as long as
the engine is not running. If the engine is running and the
malfunction indicator lamp lights up, stop (taking care not
to endanger yourself or other road users in the process) and
contact an authorized KTM workshop.
The oil pressure warning lamp always lights up as long as
the engine is not running. If the engine is running and the
oil pressure warning lamp lights up, stop immediately (tak-
ing care not to endanger yourself or other road users in the
process) and switch off the engine.
The ABS warning lamp and TC indicator lamp light up until
a speed of approx. 6 km/h (approx. 4 mph) or more has
been reached.
Day mode is shown in a bright color.
