RGBlink G3 NET 2K Quick Start Manual page 38

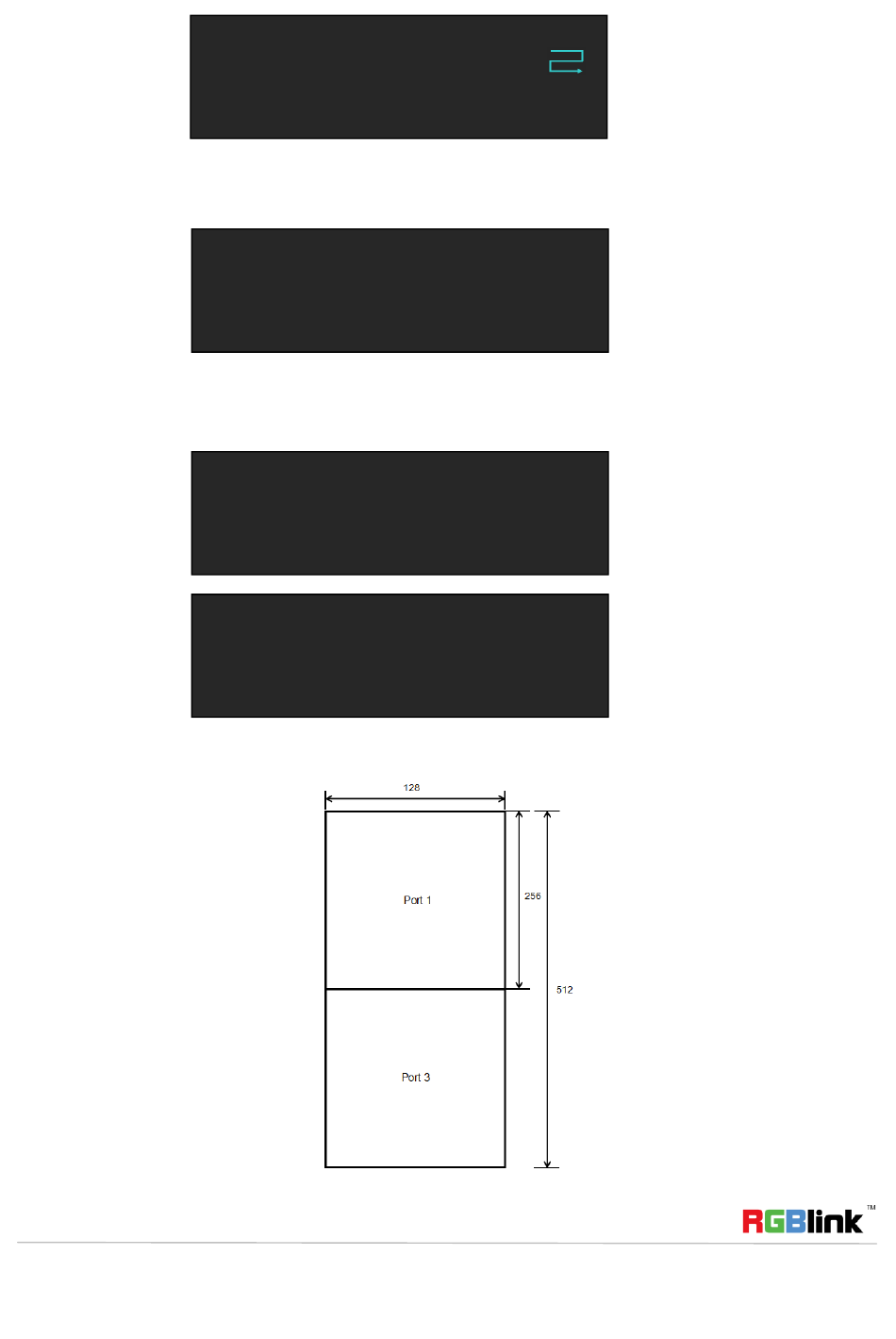

10. Turn the rotary knob, and select <Offset Settings>, push the knob to confirm, turn the rotary knob, and set
Port 1/2 Offset X, Port 1/2 Offset Y, Port 3/4 Offset X as 0, and set Port 3/4 Offset Y as 256, shown as follows:
11. Turn the rotary knob, and select <Position Settings>, push the knob to confirm, turn the rotary knob, and set
all the parameters as 0, shown as follows:
The connection figure is shown as below:
Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen, Fujian Province, P.R.C
Panel Pixel W*H: 128*256
->Connection Type
Save To Port
Port 4
->Port 1/2 Offset X
Port 1/2 Offset Y
Port 3/4 Offset X
Port 3/4 Offset Y
->Port 1 X Position
Port 1 Y Position
Port 2 X Position
Port 2 Y Position
->Port 3 X Position
Port 3 Y Position
Port 4 X Position
Port 4 Y Position
0
0
0
256
0
0
0
0
0
0
0
0
37
