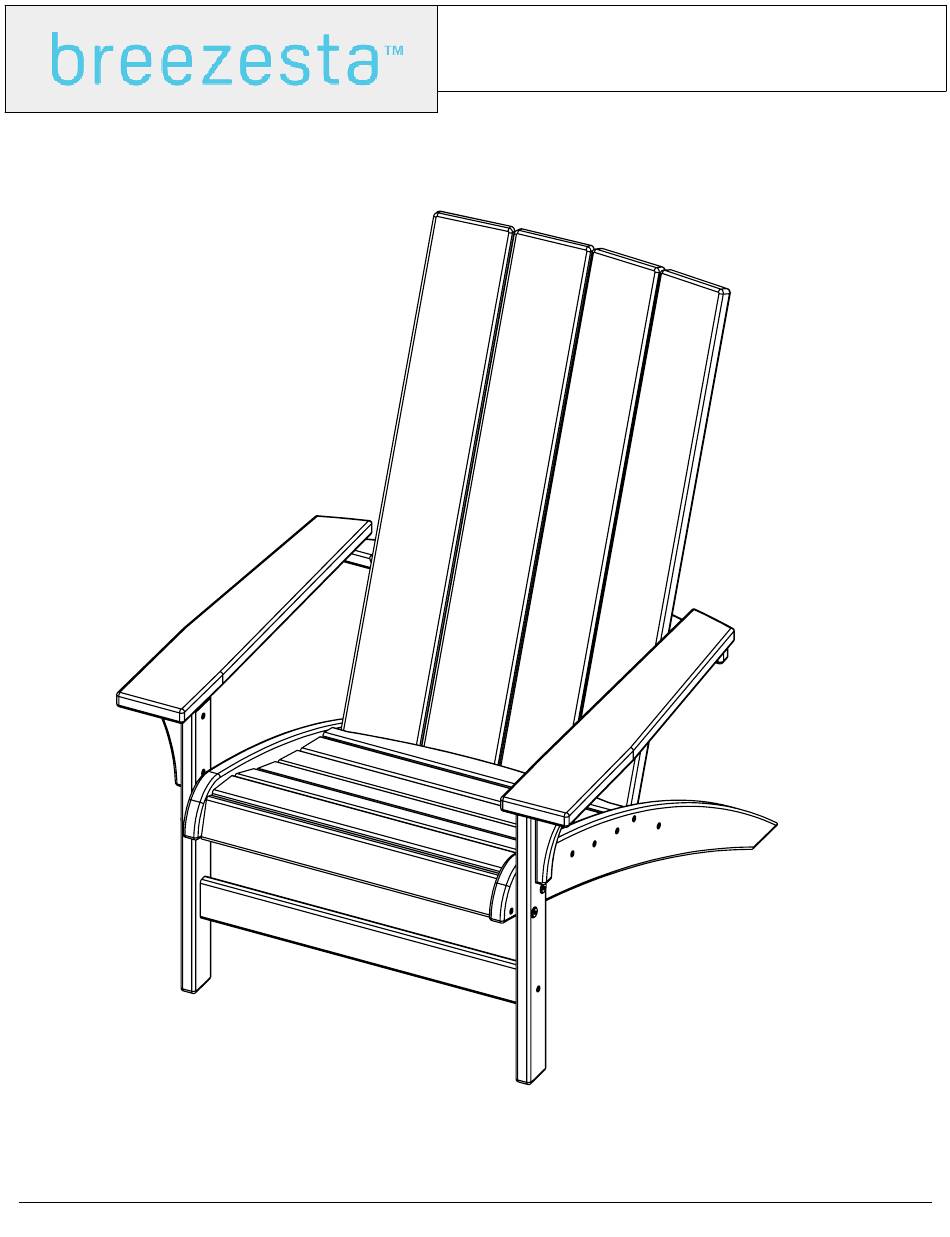

- Page 1 CONTEMPORARY ADIRONDACK AD-0115 REV03-6/19 AD-0115 Assembly...
- Page 2 SA-00022 HARDWARE PART DESCRIPTION PART NO. #8 X 1-1/2" TORX SCREW H-0000-S815 #8 X 2" TORX SCREW H-0000-S82 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0115 Assembly...
- Page 3 Part A clockwise, stopping when the assembly is tight Connect Part C to the assembly using the hardware shown Repeat Steps 1&2 with Parts B, C & E Attach Part F to the previous assemblies using Hardware a AD-0115 Assembly...
- Page 4 Place Part G between the previous assemblies and connect it with Hardware c Slide Part H into the assembly and attach it with the hardware shown AD-0115 Assembly...
