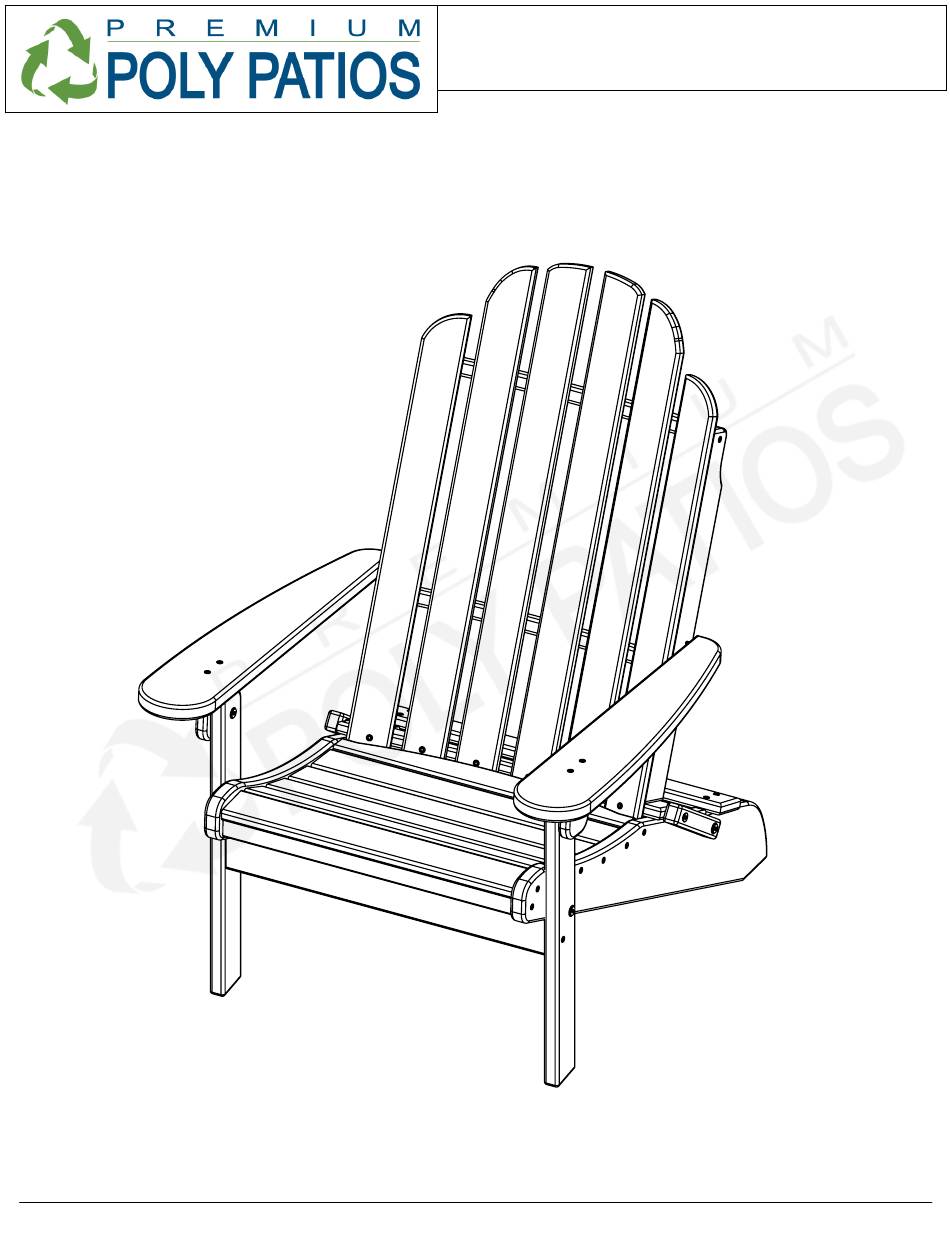

- Page 1 FOLDING ADIRONDACK AD-0106 REV00-1/19 AD-0106 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 PART NO. 1/4"-10 X 3" LAG SCREW H-0000-S103 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 #8 X 1-1/2" TORX SCREW H-0000-S815 LARGE WHITE NYLON WASHER H-0000-LWNW T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0106 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Attach Part D between parts are placed correctly Parts A & B with Hardware b Connect Part E using Hardware c; ensure the part is correctly positioned before attaching Attach Parts H & I as shown AD-0106 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Place Part F on Part D & connect it to Parts H & I as shown Attach Part G to the Part F & D as shown AD-0106 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
