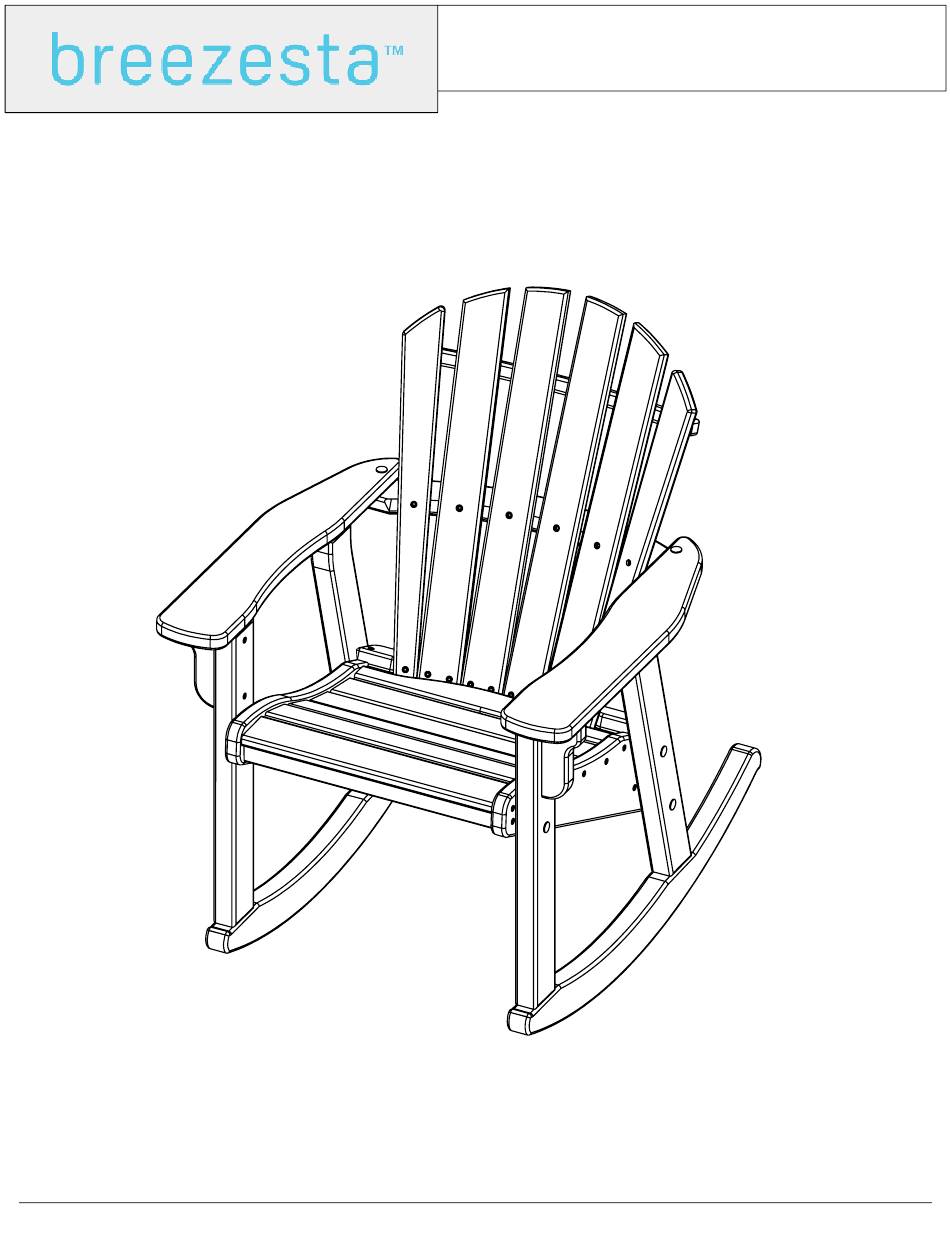

- Page 1 COASTAL ROCKER AD-0119 REV02-07/21 AD-0119 Assembly...
- Page 2 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 1/4"-10 X 3" LAG SCREW H-0000-S103 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0119 Assembly...
- Page 3 Parts A & B clockwise, stopping Parts A, C, D & H when the assembly is tight Place Part E between the previous assemblies and attach with Hardware d, this step is made easier when done upside down AD-0119 Assembly...
- Page 4 Slide Part I in place and attach it using the hardware shown Attach Parts F to the previous assemblies using Hardware e Back Leg Placement unpainted Front Leg Placement AD-0119 Assembly...
