Summary of Contents for Breezesta AD-0113

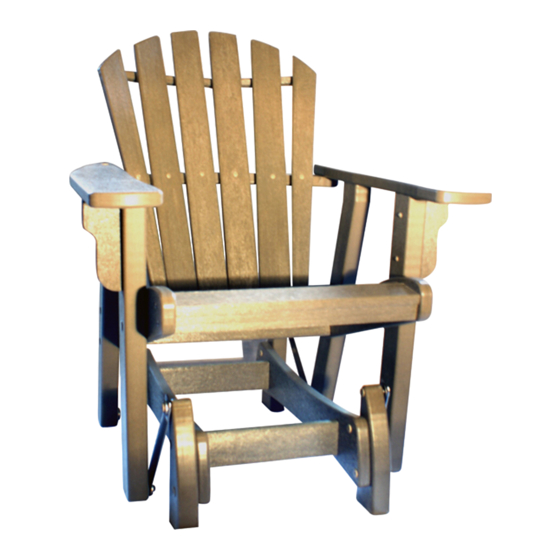

- Page 1 SINGLE COASTAL GLIDER AD-0113 REV01-4/19 AD-0113 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 #8 X 2" TORX SCREW H-0000-S82 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0113 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Parts A, B, F, D drilled holes and rotating clockwise, stopping when the assembly is tight Attach Part G to the previous assemblies using Hardware d Slide Part L into place & attach it with the hardware shown AD-0113 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Attach Parts M between Parts I as shown Connect Part H to the previous assembly using Hardware a Attach Parts K & J as shown Assemble the base to the upper as shown, starting from the front & moving to the back AD-0113 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
