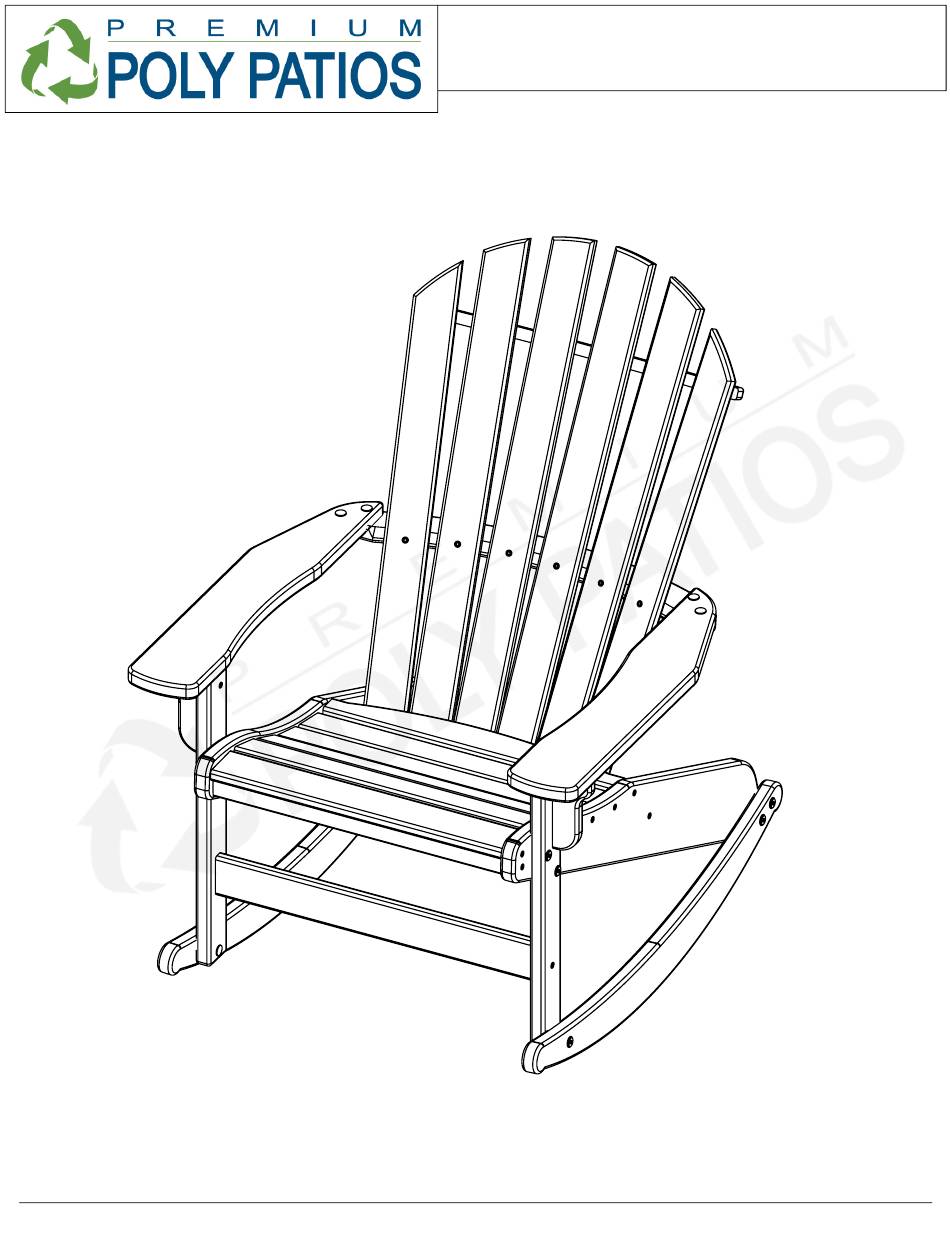

- Page 1 COASTAL ADIRONDACK ROCKER AD-0112 REV03-2/19 AD-0112 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 PART DESCRIPTION PART NO. #8 X 1-1/2" TORX SCREW H-0000-S815 #8 X 2" TORX SCREW H-0000-S82 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0112 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Hardware b Repeat Steps 1-2 for Parts B, C, & E Attach Part F to the previous assemblies using Hardware a Place Part G between the previous assemblies & attach it using Hardware c AD-0112 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Attach Part H as shown Connect Part I in using Hardware c AD-0112 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
