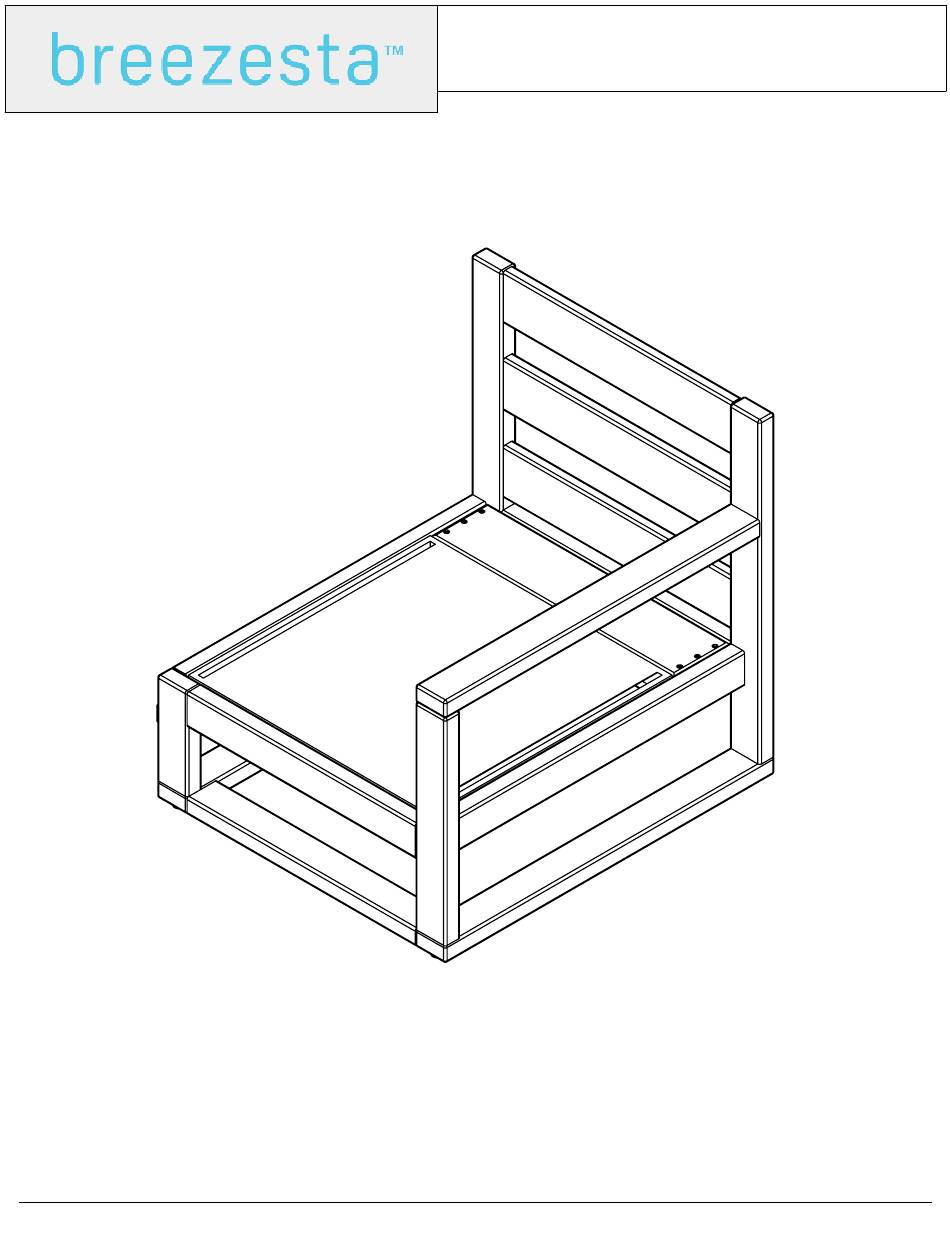

- Page 1 PALM BEACH RIGHTHAND ARM LOUNGE CHAIR - PB-1608 PB-1608 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. PB ARMLESS LH FRAME SA-00369 PB LOUNGE CHAIR RH FRAME SA-00384 24"X24" SEAT SLING H-0000-SLG PB SLING SPACER ASSEMBLY SA-00382 PB SLING RAIL ASSEMBLY SA-00407 PB SLING RAIL ASSEMBLY SA-00408 PB 1-ARM LOUNGE BACK SLAT PRT-00863 PB 1-ARM LOUNGE FRONT BOTTOM SPREADER PRT-00866 FOR USE IF CONNECTING FURNITURE-SEE LAST...
- Page 3 Please read entire instruction before beginning Place Frame Assembly on a flat surface either as shown or with the slats on the ground and frame sticking up in the air. Insert the 3 Back Slats into the slots of the frame. This may require some tapping with a mallet to set them firmly into the slot.
- Page 4 (2) 1-3/4" screws ( ) are used on each end of & Using the 6" torx bit (hardware screw the (12) 1-3/4" screws ( ) into the bottom spreader ( ) and sling rails ( & ). When tight, the ends of the spreader and rails should be flush to the two side frame assemblies.
