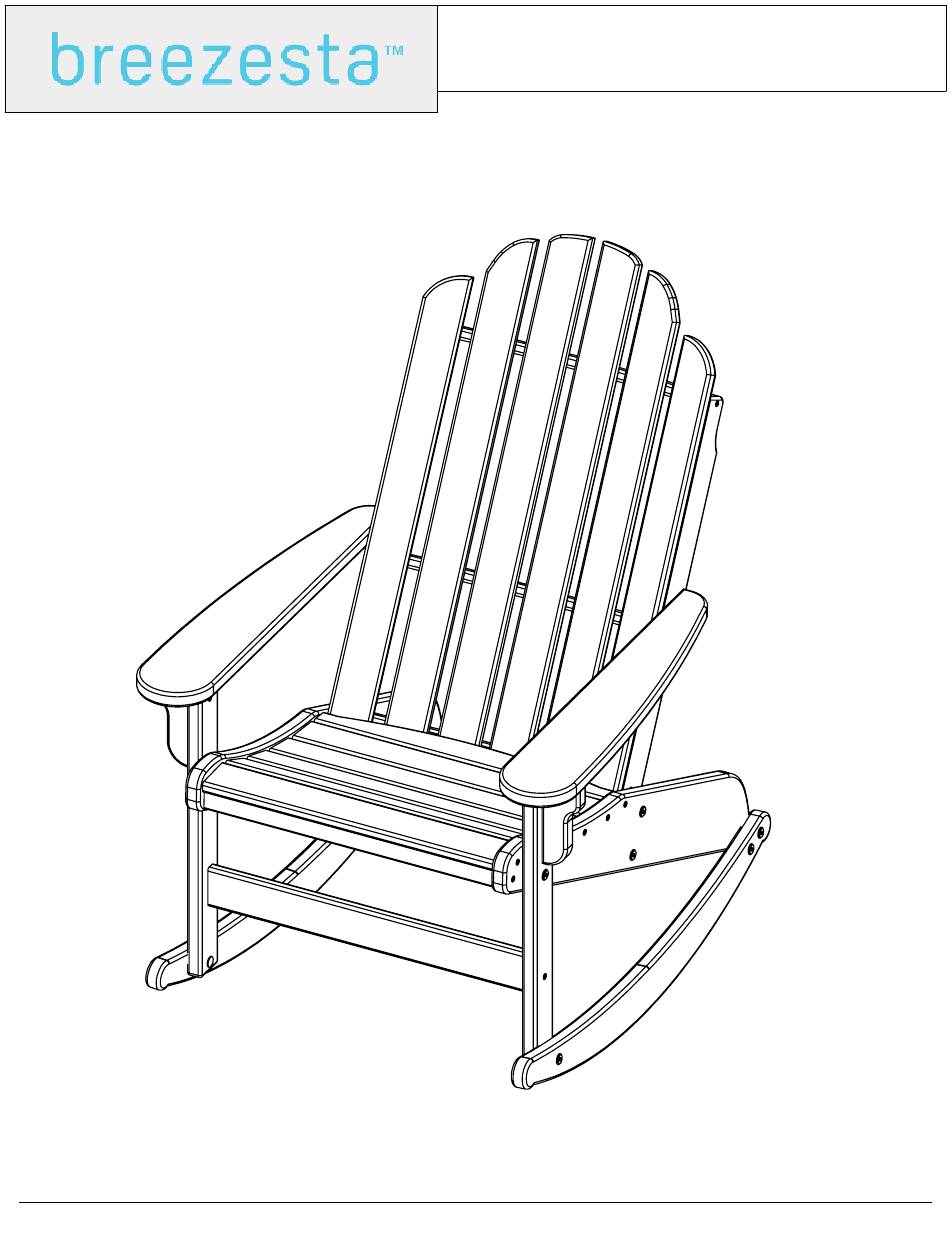

- Page 1 SHORELINE ADIRONDACK ROCKER AD-0110 REV04-8/19 AD-0110 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. LEFT ARM ASSEMBLY SA-00403 RIGHT ARM ASSEMBLY SA-00404 FRONT LEG ASSEMBLY SA-00007 UNDER ARM SUPPORT PRT-00007 ADIRONDACK SPREADER SS-22.187 BASE ASSEMBLY SA-00006 BACK ASSEMBLY SA-00003 ROCKER LEG PRT-00016 HARDWARE PACK PART DESCRIPTION PART NO. 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 5/16"...
- Page 3 Please read entire instructions before beginning Connect Part C to Part A Rotate Part C clockwise until using Hardware d as shown tight in the orientation shown Place Part D in pre-cut slot as Using Hardware c attach Part D shown.
- Page 4 Attach Part G to Part F using 4 of Turn the back/seat assembly on it's hardware b. side. Lay one arm/leg assembly from steps 1-5 on the back/seat assembly and fasten using 1 each of hardware a & b as Tip: If the seat shown.
