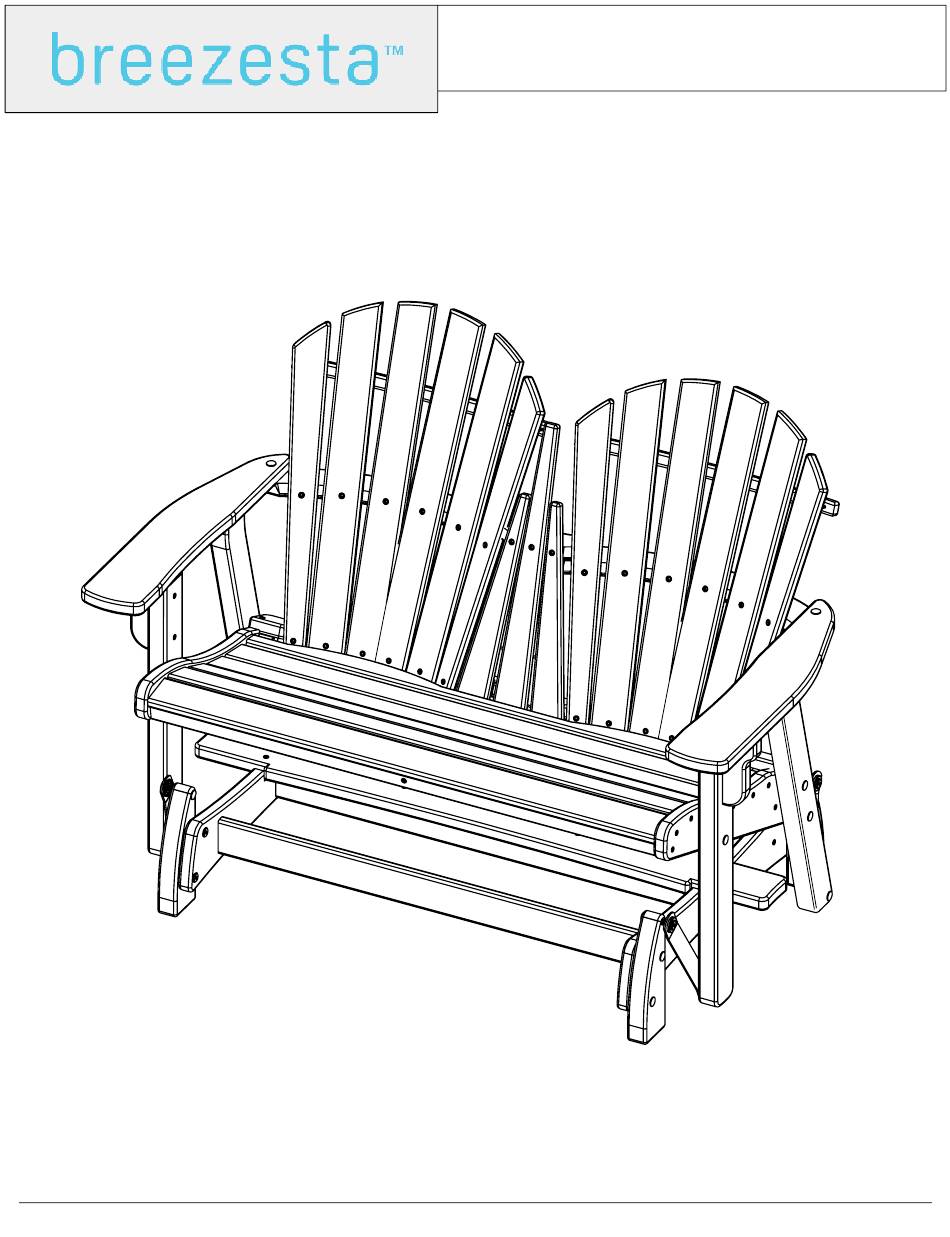

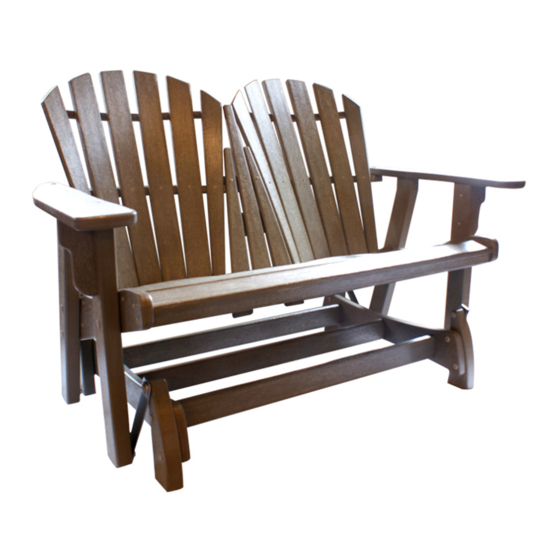

- Page 1 DOUBLE COASTAL GLIDER AD-0114 REV02-6/19 AD-0114 Assembly...
-
Page 2: Suggested Tools
#8 X 2" TORX SCREW H-0000-S82 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0114 Assembly... - Page 3 Part E by inserting Hardware f into the pre- drilled holes and rotating clockwise, stopping when the assembly is tight Place Part B into the pre-cut slot and attach with Hardware c Repeat Steps 1 & 2 with Parts A, B, F, D AD-0114 Assembly...
- Page 4 Attach Part G to the previous assemblies using Hardware e unpainted painted Place Part M into Part G & attach it with the hardware shown AD-0114 Assembly...
- Page 5 Slide Parts O & P into the assembly & attach as shown painted Back View Under Seat View Slide Part N between Parts O & P into the assembly & attach as shown AD-0114 Assembly...
- Page 6 Connect Parts H to Parts J using Hardware b painted Attach Part I to the previous assembly AD-0114 Assembly...
- Page 7 Connect Parts K & L using Hardware e Assemble the base to the upper as shown, starting from the front & moving to the back AD-0114 Assembly...
