Summary of Contents for Breezesta PIEDMONT PT-0601

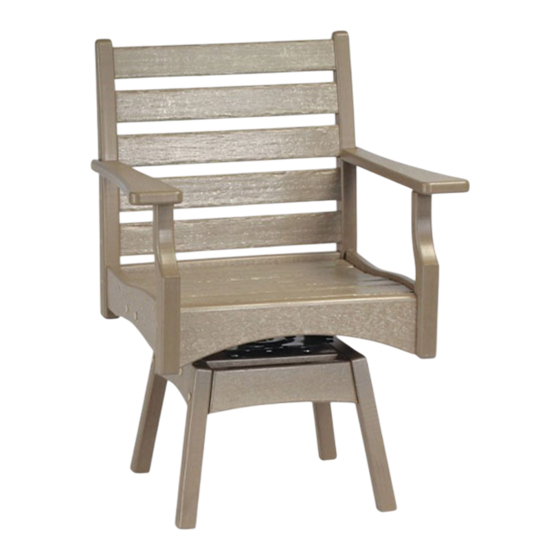

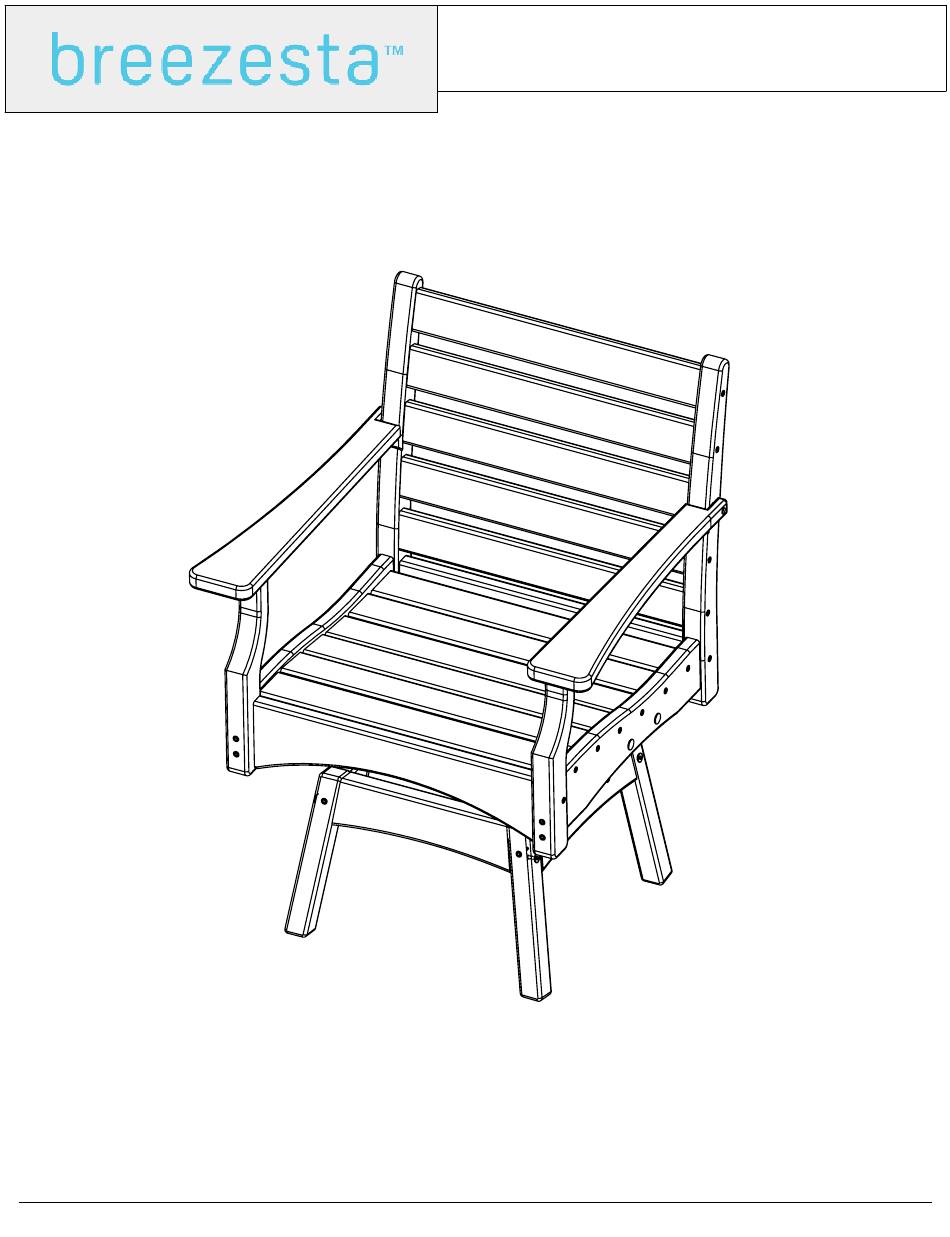

- Page 1 PIEDMONT DINING SWIVEL ROCKER PT-0601 REV03-12/19 PT-0601 Assembly...
- Page 2 PARTS PART DESCRIPTION PART NO. BASE SIDE ASSEMBLY SA-00225 SWIVEL SUPPORT PRT-00411 BASE SPREADER PRT-00410 SEAT ASSEMBLY SA-00226 LEFT ARM PRT-00417 RIGHT ARM PRT-00418 LEFT FRONT LEG PRT-00415 RIGHT FRONT LEG PRT-00416 FRONT RAIL PRT-00414 BACK ASSEMBLY SA-00227 HARDWARE PART DESCRIPTION PART NO.
- Page 3 Please read entire instructions before beginning Attach Parts C to A using the hardware shown Repeat Step 1 to attach the other Part A to Parts C While upside down press, or hammer, Parts B into the grooves & attach them using the hardware shown Connect Hardware g using Hardware c2 (unpainted) as...
- Page 4 Connect Part F to H with Hardware e by rotating Part F clockwise until the assembly is tight Repeat Step 5 for Parts E & G Connect the previous assemblies to Part I using Hardware b Connect the previous assembly to Part D using the hardware shown Note: Make sure Step 7 is connected on the front of Part D...
