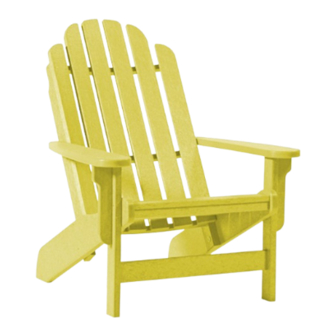

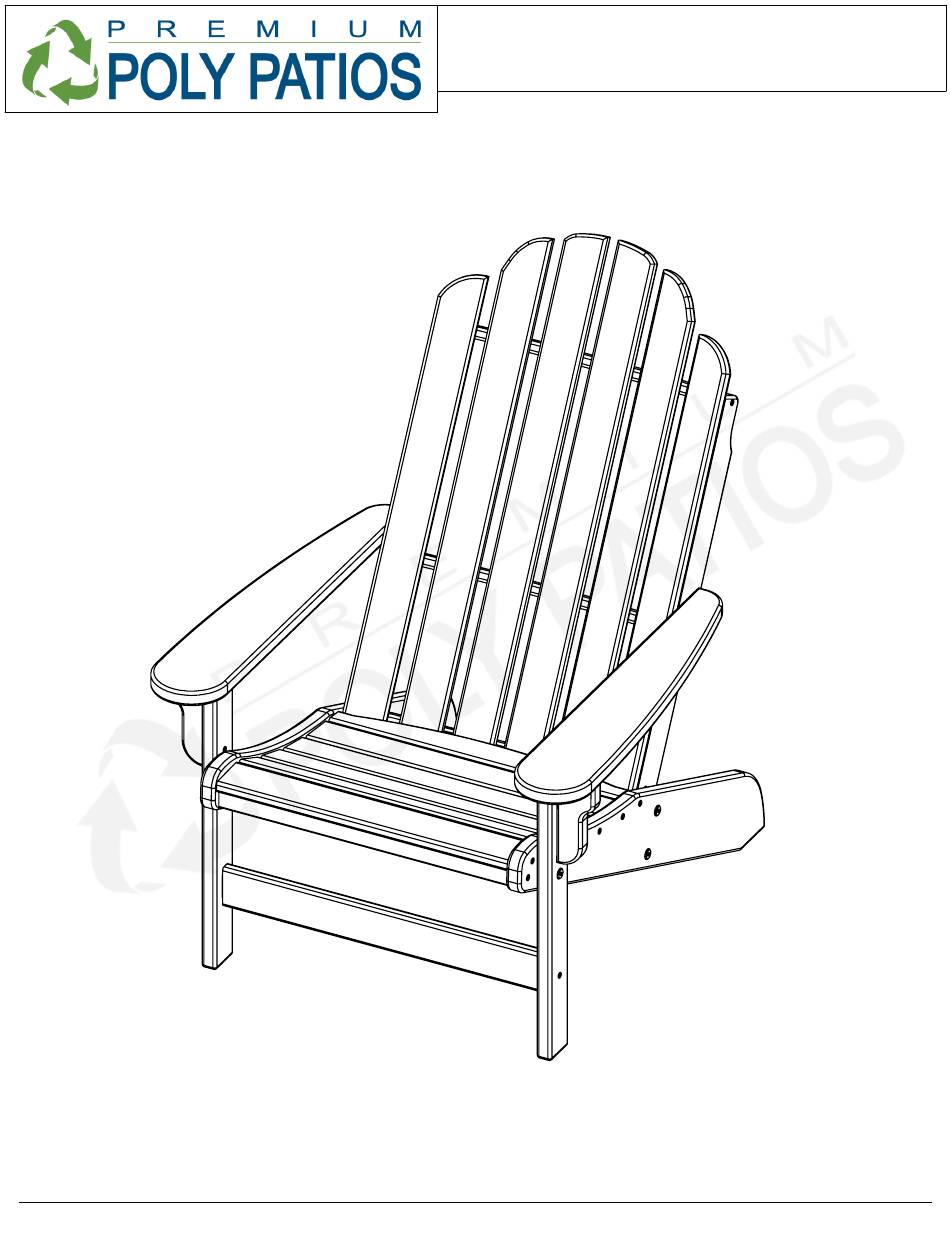

- Page 1 SHORELINE ADIRONDACK AD-0100 REV02-8/19 AD-0100 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 #8 X 2" TORX SCREW H-0000-S82 DOUBLE SCREW H-0000-DS #8 X 1-1/2" TORX SCREW H-0000-S815 T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0100 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Place Part D in pre- Using Hardware c attach Part D cut slot as shown as shown Repeat step 1-4 with Parts B,C,& D. These assemblies will be used in step 7. AD-0100 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Assemble Part E into the chair. Insert the tenon into the slot in one leg. Then with slight pressure on the opposing leg, push the opposite side of Part E into its corresponding slot. Screw in place using 2 of hardware e. AD-0100 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
