WORKSHOP MANUAL
TRACTOR
B1710,B2110,B2410,B2710
KiSC issued 11, 2006 A

Advertisement

Table of Contents
loading

Related Manuals for Kubota WSM B1710

Summary of Contents for Kubota WSM B1710

  • Page 1 WORKSHOP MANUAL TRACTOR B1710,B2110,B2410,B2710 KiSC issued 11, 2006 A...
  • Page 2 TO THE READER This Workshop Manual has been prepared to provide servicing personnel with information on the mechanism, service and maintenance of KUBOTA Tractor B1710, B2110, B2410 and B2710. It is divided into two parts, “Mechanism” and “Servicing” for each section.
  • Page 3 SAFETY INSTRUCTIONS B1710 · B2110 · B2410 · B2710, WSM SAFETY INSTRUCTIONS SAFETY FIRST This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and decals on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit.
  • Page 4 SAFETY INSTRUCTIONS B1710 · B2110 · B2410 · B2710, WSM SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system.
  • Page 5 SAFETY INSTRUCTIONS B1710 · B2110 · B2410 · B2710, WSM VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide.
  • Page 6 SAFETY INSTRUCTIONS B1710 · B2110 · B2410 · B2710, WSM SAFETY DECALS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list.
  • Page 7 SAFETY INSTRUCTIONS B1710 · B2110 · B2410 · B2710, WSM KiSC issued 11, 2006 A Find manuals at https://best-manuals.com Find manuals at https://best-manuals.com...
  • Page 8 SAFETY INSTRUCTIONS B1710 · B2110 · B2410 · B2710, WSM KiSC issued 11, 2006 A Find manuals at https://best-manuals.com Find manuals at https://best-manuals.com...
  • Page 9 Rear Revolution 1 speed (540 rpm at 2600 engine rpm) PTO system PTO shaft USA No. 5 (KUBOTA 10-tooth) involute spline Mid. Revolution 1 speed (2500 rpm at 2578 engine rpm) Note : * Manufacture’s estimate The company reserves the right to change the specifications without notice.
  • Page 10 Rear Revolution 1 speed (540 rpm at 2600 engine rpm) PTO system PTO shaft USA No. 5 (KUBOTA 10-tooth) involute spline Mid. Revolution 1 speed (2500 rpm at 2578 engine rpm) Note : * Manufacture’s estimate The company reserves the right to change the specifications without notice.
  • Page 11 Rear Revolution 1 speed (540 rpm at 2600 engine rpm) PTO system PTO shaft USA No. 5 (KUBOTA 10-tooth) involute spline Mid. Revolution 1 speed (2500 rpm at 2578 engine rpm) Note : * Manufacture’s estimate The company reserves the right to change the specifications without notice.
  • Page 12 B1710 · B2110 · B2410 · B2710, WSM TRAVELLING SPEEDS TRAVELLING SPEEDS [Manual Transmission Model] Model B1710 B2110 B2410 B1710, B2110 B2410 31 × 13.5-15 Tire size (Rear) 8-16 9.5-16 9.5-18 315/75D-15 Range gear Main gear km/h km/h km/h km/h km/h shift lever shift lever...
  • Page 13 B1710 · B2110 · B2410 · B2710, WSM DIMENSIONS DIMENSIONS KiSC issued 11, 2006 A...
  • Page 14 GENERAL KiSC issued 11, 2006 A...

  • Page 15: Table Of Contents

    GENERAL CONTENTS 1. FEATURES ...................... G-1 2. TRACTOR IDENTIFICATION ................. G-2 3. GENERAL PRECAUTIONS ................G-3 4. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS AND WIRING .. G-4 [1] WIRING...................... G-4 [2] BATTERY....................G-6 [3] FUSE......................G-6 [4] CONNECTOR .................... G-6 [5] HANDLING OF CIRCUIT TESTER............G-7 5.

  • Page 16: Features

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL 1. FEATURES 1. Integral Power Steering 2. E-TVCS (Three Vortex Combustion System) Diesel Engine 3. Engine Key Shut-Off System 4. Hydrostatic Transmission (HST) 5. 3 Range of Speed (B2710 only) 6.

  • Page 17: Tractor Identification

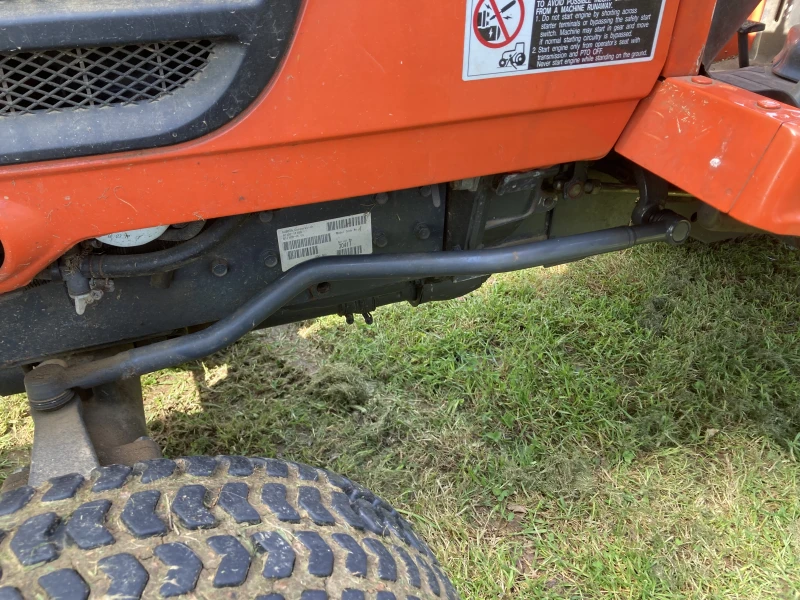

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL 2. TRACTOR IDENTIFICATION When contacting your local KUBOTA distributor, always specify engine serial number, tractor serial number and hour meter reading. (1) Tractor Identification Plate (3) Engine Serial Number (2) Tractor Serial Number...

  • Page 18: General Precautions

    Screws, bolts and nuts should be installed in their original position to prevent reassembly errors. • When special tools are required, use KUBOTA genuine special tools. Special tools which are not frequently used should be made according to the drawings provided.

  • Page 19: Handling Precautions For Electrical Parts And Wiring

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL 4. HANDLING PRECAUTIONS FOR ELECTRICAL PARTS AND WIRING To ensure safety and prevent damage to the machine and surrounding equipment, heed the following precautions in handling electrical parts and wiring. IMPORTANT •...
  • Page 20 B1710 · B2110 · B2410 · B2710, WSM G GENERAL • Securely clamp, being careful not to damage wiring. (1) Clamp (3) Clamp • Wind Clamp Spirally (4) Welding Dent (2) Wire Harness W10114580 • Clamp wiring so that there is no twist, unnecessary sag, or excessive tension, except for movable part, where sag be required.

  • Page 21: Battery

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL [2] BATTERY • Take care not to confuse positive and negative terminal posts. • When removing battery cables, disconnect negative cable first. When installing battery cables, check for polarity and connect positive cable first.

  • Page 22: Handling Of Circuit Tester

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL • Use sandpaper to remove rust from terminals. • Repair deformed terminal. Make certain there is no terminal being exposed or displaced. (1) Exposed Terminal (3) Sandpaper (2) Deformed Terminal (4) Rust W10123460 •...

  • Page 23: Lubricants Fuel And Coolant

    Place No. of greasing point Capacity grease Speed control pedal (HST pedal) Until grease Top link overflows Multipurpose Lift rod type grease Parking brake shaft Battery Moderate terminal amount * KUBOTA original transmission hydraulic fluid. KiSC issued 11, 2006 A...

  • Page 24: Tightening Torques

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL 6. TIGHTENING TORQUES Screws, bolts and nuts whose tightening torques are not specified in this Workshop Manual should be tightened according to the table below. [1] GENERAL USE SCREWS, BOLTS AND NUTS Indication on top of No-grade or 4T bolt...

  • Page 25: Maintenance

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL 7. MAINTENANCE Service Time Interval Period Reference Important Item 1 year 2 years page Engine oil Change G-12 Engine oil filter Replace G-12 Transmission fluid Change G-13 Hydraulic oil filter (for HST) Replace G-14 Hydraulic oil filter...

  • Page 26: Check And Maintenance

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL 8. CHECK AND MAINTENANCE CAUTION • Be sure to check and service the tractor on a flat place with engine shut off, the parking brake on and chock the wheels. [1] DAILY CHECK To prevent trouble from occurring, it is important to know the condition of the tractor.

  • Page 27: Check Points Of Initial 50 Hours

    Then, replenish the engine oil up to the specified level. IMPORTANT • To prevent serious damage to the engine, replacement element must be highly efficient. Use only a KUBOTA genuine filter or its equivalent. (1) Engine Oil Filter W10148920...
  • Page 28 B1710 · B2110 · B2410 · B2710, WSM G GENERAL Changing Transmission Fluid CAUTION • Be sure to stop the engine when checking and changing the transmission fluid. • Allow engine to cool down sufficiently, oil can be hot and can burn.
  • Page 29 Check the fluid level. IMPORTANT • To prevent serious damage to the hydraulic system. Use only a genuine KUBOTA filter or its equivalents. (1) Hydraulic Oil Filter (for HST) (2) Hydraulic Oil Filter W10155860...

  • Page 30: Check Points Of Every 50 Hours

    B1710 · B2110 · B2410 · B2710, WSM G GENERAL [3] CHECK POINTS OF EVERY 50 HOURS Greasing 1. Apply a grease to the following position as figures. (1) Grease Fitting (HST Pedal) (4) Grease Fitting (Lifting Rod RH) (2) Battery Terminal (5) Grease Fitting (Parking Brake Shaft) (3) Grease Fitting (Top Link) W10218280...
  • Page 31 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
