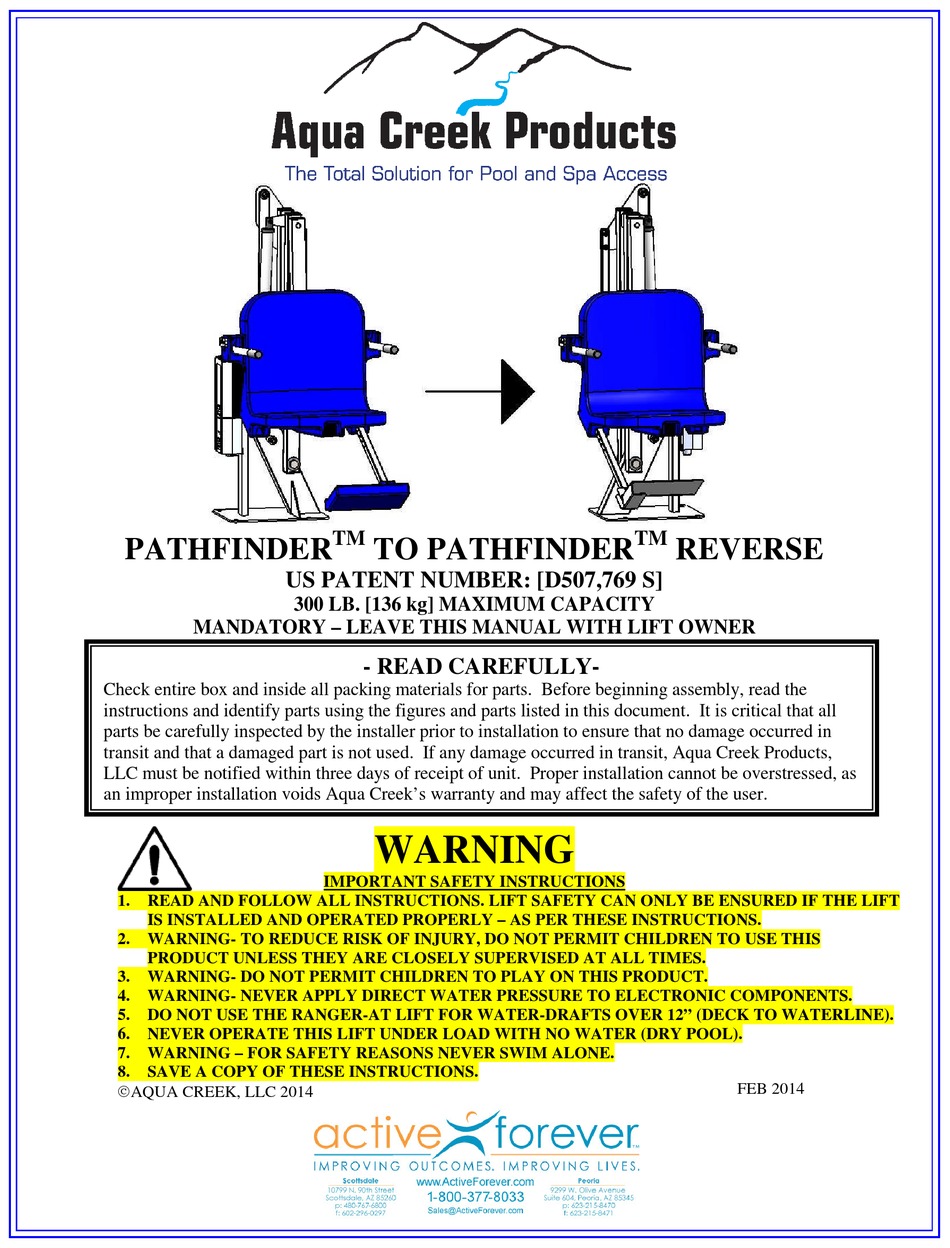

PATHFINDER
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
Check entire box and inside all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the figures and parts listed in this document. It is critical that all
parts be carefully inspected by the installer prior to installation to ensure that no damage occurred in
transit and that a damaged part is not used. If any damage occurred in transit, Aqua Creek Products,
LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as
an improper installation voids Aqua Creek's warranty and may affect the safety of the user.
1.
READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE LIFT
IS INSTALLED AND OPERATED PROPERLY – AS PER THESE INSTRUCTIONS.
2.
WARNING- TO REDUCE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS
PRODUCT UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3.
WARNING- DO NOT PERMIT CHILDREN TO PLAY ON THIS PRODUCT.
4.
WARNING- NEVER APPLY DIRECT WATER PRESSURE TO ELECTRONIC COMPONENTS.
5.
DO NOT USE THE RANGER-AT LIFT FOR WATER-DRAFTS OVER 12" (DECK TO WATERLINE).
6.
NEVER OPERATE THIS LIFT UNDER LOAD WITH NO WATER (DRY POOL).
7.
WARNING – FOR SAFETY REASONS NEVER SWIM ALONE.
8.
SAVE A COPY OF THESE INSTRUCTIONS.
AQUA CREEK, LLC 2014
TM
TO PATHFINDER
US PATENT NUMBER: [D507,769 S]
300 LB. [136 kg] MAXIMUM CAPACITY
- READ CAREFULLY-
WARNING
IMPORTANT SAFETY INSTRUCTIONS
TM
REVERSE
FEB 2014
Advertisement
Table of Contents
Related Manuals for Aqua Creek Products PATHFINDER
Summary of Contents for Aqua Creek Products PATHFINDER
- Page 1 If any damage occurred in transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may affect the safety of the user.
- Page 2 DISASSEMBLING OVERVIEW To make your Pathfinder Pool Lift into a Pathfinder Reverse you must first partially disassemble the lift. You will need to remove the footrest, seat support, control arm, chair arm, chair and actuator. You will also need to switch the extension cord bracket to the reverse side of the main arm assembly.
- Page 3 DISASSEMBLING MAIN CONFIGURATION 1) FOOTREST: Remove 1/4" Button-Head, flat washers & nylock nut. Remove plastic footrest. Unpin footrest tube from chair and remove. Save and set aside hardware and footrest tube for reverse footrest assembly. 2) CONTROL ARM: Remove 1/2" x 7” hex bolt, flat washers & nylock nut.
- Page 4 3) SEAT SUPPORT: Remove 1/4" x 5/8” hex bolts behind chair. Remove 3/4" nylock nut and flat washer. Save and set aside seat support and all hardware. 4) CHAIR ARM & CHAIR: Slide chair arm and chair away from main arm assembly and set aside.
- Page 5 6) BRACKET: Remove extension cord bracket from main arm assembly and set aside. Replace hardware back into main arm assembly.
- Page 6 ASSEMBLING REVERSE CONFIGURATION NOTE: Aqua Creek recommends that all old nylocks be replaced with new nylock nuts when reassembling. 1) BRACKET: Install the extension cord bracket to the opposite side of the main arm assembly from the normal configuration using the 1/4"...
- Page 7 4a) SEAT SUPPORT: Before installing the seat support, first assemble both plates onto seat support tube reversed from how they were for normal configuration. 4b) SEAT SUPPORT: Once the plates have been installed for the reverse configuration, connect the top plate to the chair arm shaft using the 3/4"...
- Page 8 5) CONTROL ARM: Install the bottom of the control arm to the main arm assembly with the 1/2" x 7” hex bolt, flat washers and nylock nut. Connect the top of the control arm to the inside of the top plate of the seat support using the 1/2"...
