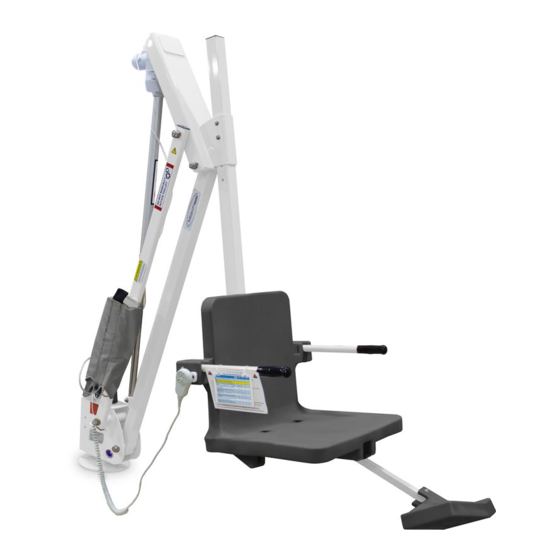

Mighty 400
Pool Lift
PART #: F-MTY400-03
US PATENT PENDING: [16/205,638]
US PATENT NUMBER: [D507,769 S]
400 LB. [181 kg] MAXIMUM WEIGHT CAPACITY
FOR INDOOR OR OUTDOOR USE
MANDATORY
LEAVE THIS MANUAL WITH LIFT OWNER
ADA COMPLIANT
READ CAREFULLY
Check entire box and inside all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the fi gures and parts listed in this document.
It is critical all parts be carefully inspected by the installer prior to installation to ensure no
damage occurred in transit and a damaged part is not used. If any damage occurred in transit,
Aqua Creek Products, LLC must be notifi ed within three days of receipt of unit.
Proper installation cannot be overstressed, as an improper installation voids Aqua Creek's
warranty and may affect the safety of the user.
1
Copyright © 2020 Aqua Creek Products All Rights Reserved
Revised 1/2/20
