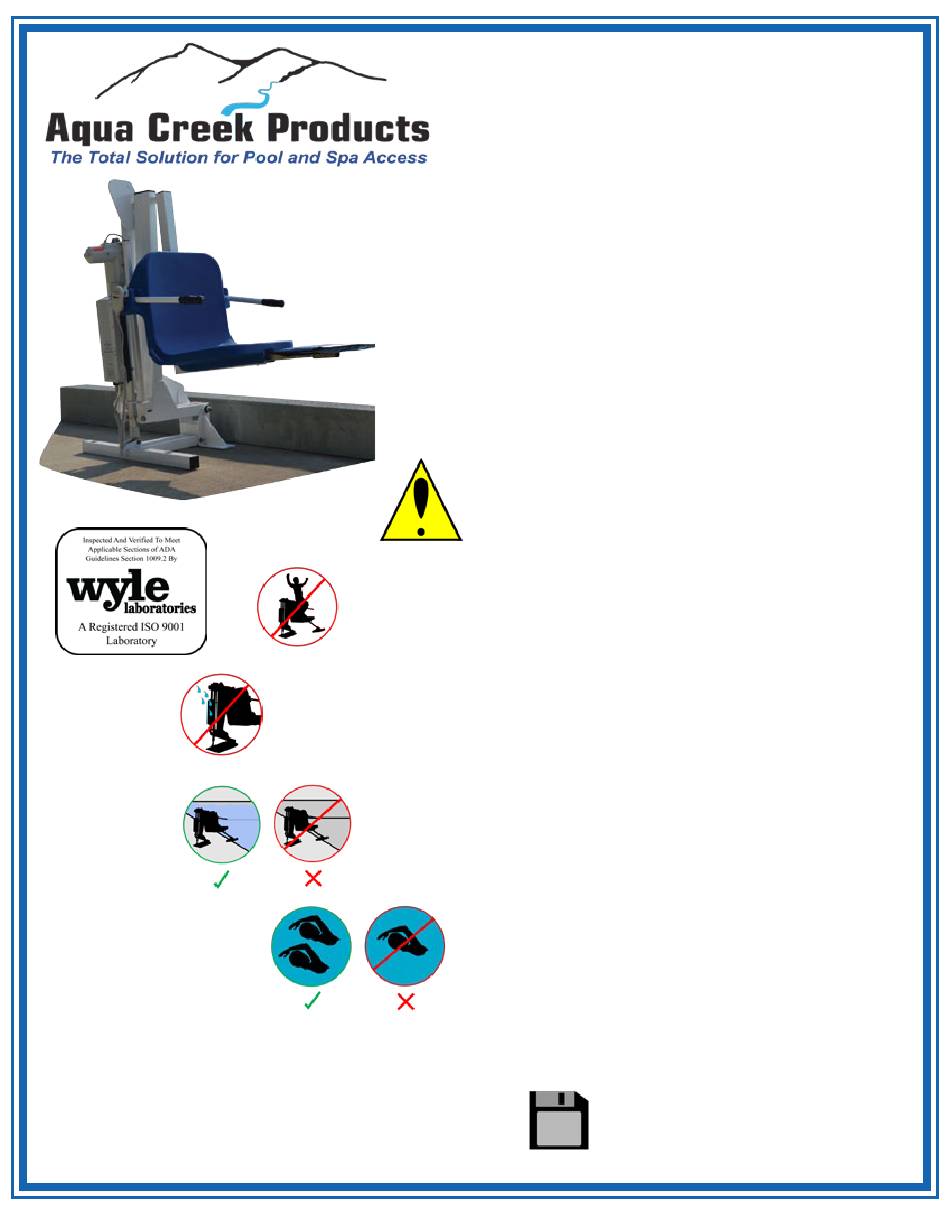

Pro Pool-XR Lift
PART #: F-004PLB-XR (with anchor)
PART #: F-004PLB-XRNA (without anchor)
US PATENT NUMBER: [D507,769 S] [7,249,386 B2]
350 LB. [159 kg] MAXIMUM WEIGHT CAPACITY
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
Read & follow all instructions
Lift safety can only be ensured if the lift is installed
and operated according to these instructions
NEVER permit children to play on or around the lift
Do not allow children to use the lift without adult supervision
NEVER apply direct water pressure to the electronics
NEVER use the lift with a dry pool
For safety reasons, NEVER swim alone
9889 Garrymore Ln
Missoula, MT 59808
SAVE a copy of these instructions
888-687-3552 | +1-406-549-0769
aquacreek.com
1
Copyright © 2014 Aqua Creek Products All Rights Reserved
Revised 11/20/14
V.1.1
Advertisement
Related Manuals for Aqua Creek Products Pro Pool-XR
Summary of Contents for Aqua Creek Products Pro Pool-XR
- Page 1 NEVER use the lift with a dry pool For safety reasons, NEVER swim alone 9889 Garrymore Ln Missoula, MT 59808 SAVE a copy of these instructions 888-687-3552 | +1-406-549-0769 aquacreek.com Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
-
Page 2: Table Of Contents
PRO POOL-XR LIFT ASSEMBLY INSTRUCTIONS BATTERY MAINTENANCE CARE FOR YOUR LIFT 12-13 PRO POOL-XR LIFT OPERATING INSTRUCTIONS 14-15 TROUBLESHOOTING GUIDE PRO POOL-XR PARTS LIST SEAT & ACTUATOR ASSEMBLY PARTS LIST WARRANTY Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1... - Page 3 If any damage occurred in Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14...
- Page 4 Installation: ADA Requirements ADA REQUIREMENTS: The Pro Pool-XR Lift is completely ADA Compliant when installed correctly. The installation must meet the following requirements: Clear Deck Space Dimensions (see FIGURE 1) Lift anchors installed between 22 1/2” - 38” from the pool edge Deck slope no greater than 1:48 The seat must go at least 18”...
- Page 5 BOTTOM of the jig-plate (see diagram on left). IMPORTANT: Use the enclosed packet of anti-seize lube on the threads of the hardware to prevent the hardware from seizing in the anchor inserts. continued on page 6 Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
- Page 6 The anchor jig-plate can be recycled or used for installing a second set of anchors in another location. FIGURE 4 Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
- Page 7 Secure the lift to the deck using the stainless steel hardware provided. Be sure to use anti-seize on all hardware. FIGURE 6 Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
-
Page 8: Anchor Installation: New Construction
(Do not tie into the bond beam). The rest of the pool deck can be a typical 4” thick or thickened per local code requirements. Bond rebar or reinforcing mesh grid according to local requirements and also bond the anchor system to the rebar/mesh grid. Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1... -
Page 9: Pro Pool-Xr Lift Assembly Instructions
Pro Pool-XR Assembly Instructions Attach seat belt to the seat as shown. Install the Pro Pool-XR pool lift onto the three (3) anchors using the supplied 1/2 x 1-1/2” stainless steel hex bolts and 1/2” stainless steel at washers. Apply anti-seize to all hardware to prevent lift from seizing in the anchor. -
Page 10: Battery Maintenance
(supplied with lift) as shown in the gure below. Clean with alcohol and a cotton swab and apply dielectric grease to terminals Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1... - Page 11 Use white epoxy paint to touch up. Apply wax to nish. For service and/or replacement parts contact Aqua Creek Direct at Toll free: (888) 687-3552 Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
- Page 12 Pro Pool-XR Operation Instructions Transfer to Lift Flip Up Armrests Secure Lapbelt Lower Armrests Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
- Page 13 Pressure to the Down Arrow Return to Submerged Lift Raise Lift by Applying Seat & Secure Lapbelt Pressure to the Up Arrow Release Lapbelt, Raise Armrests, & Exit Lift Seat Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
-
Page 14: Troubleshooting Guide
Check the ends of the cords for corrosion or damage. The cord plugs should be recessed into the outlet. You should feel them pop into place when they are correctly inserted. Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1... - Page 15 Note: the lift will not retract if the battery is not fully charged or if the control box is not working. The emergency button only overrides the remote handset. Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
-
Page 16: Pro Pool-Xr Parts List
3/8” X 1 3/4” SHOULDER BOLT, SS RER50X100MM 2” X 4” RECT. PLASTIC CAP, BLACK FLAT WASHER, 3/8 SS 3/8” FLAT WASHER, SS F-045AC WATER RESISTANT ACTUATOR CVR Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1... - Page 17 3/8” X 1 1/4” SHOULDER BOLT, SS NYLOCK, 5/16 SS 5/16”-18 NYLOCK NUT, SS HOSE CLAMP, 1 3/4 SS 1 3/4” HOSE CLAMP, SS FLAT WASHER, #10 SS #10 FLAT WASHER, SS Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 11/20/14 V.1.1...
- Page 18 THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO THE PRODUCTS SHALL BE LIMITED TO REPAIR OR REPLACEMENT AT AQUA CREEK’S DESIGNATED FACTORY LOCATION, OR DULY IN NO EVENT SHALL AQUA CREEK PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES OR LOST PROFITS FROM ANY BREACH OF THIS LIMITED WARRANTY OR...
