Do not use the Patriot-AT1 for deck-to-waterline measurements over 9"
9889 Garrymore Ln
Accessible Environments, Inc.
Missoula, MT 59808
National Authorized Dealer
888-687-3552 | +1-406-549-0769
(800) 643-5906 - www.acessinc.com
Williamsburg, VA
aquacreek.com
Copyright © 2014 Aqua Creek Products All Rights Reserved
US PATENT NUMBER: [D507,769 S] [5,790,995]
450 LB. [204 kg] MAXIMUM WEIGHT CAPACITY
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
NEVER permit children to play on or around the lift.
Do not allow children to use the lift without adult supervision.
NEVER apply direct water pressure to the electronics
NEVER operate lift without 600lbs of sand inside of the ballast
NEVER use the lift with a dry pool

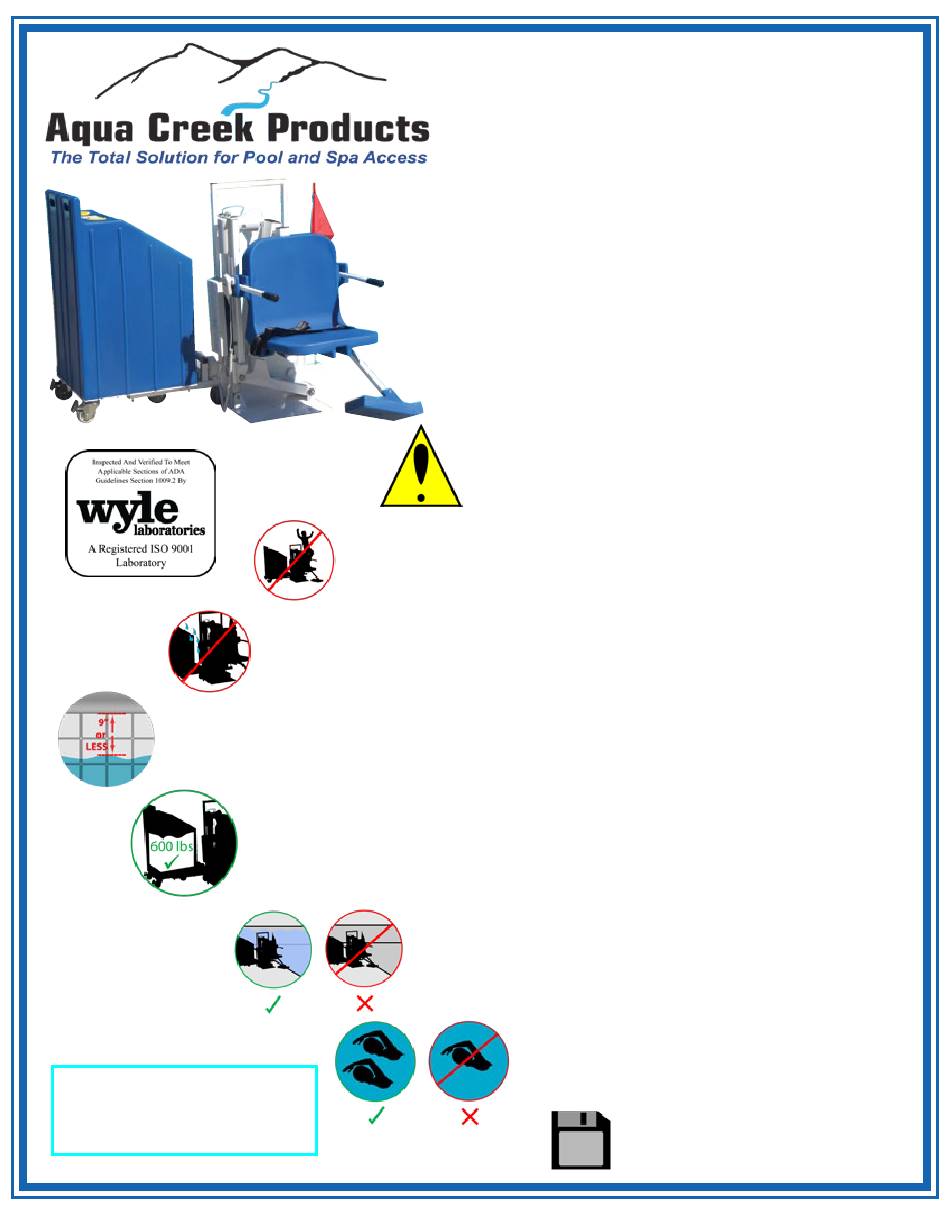

Patriot-AT1 Portable Lift
PART #: F-12PPL-HD-AT1
[7,249,386 B2]
Read & Follow All Instructions
Lift safety can only be ensured if the lift is installed
and operated according to these instructions
For safety reasons, NEVER swim alone
SAVE a copy of these instructions
Revised 9/8/14
1
V.1
Advertisement
Table of Contents
Related Manuals for Aqua Creek Products Patriot-AT1
Summary of Contents for Aqua Creek Products Patriot-AT1
- Page 1 Do not allow children to use the lift without adult supervision. NEVER apply direct water pressure to the electronics Do not use the Patriot-AT1 for deck-to-waterline measurements over 9” NEVER operate lift without 600lbs of sand inside of the ballast...
-
Page 2: Table Of Contents
BATTERY MAINTENANCE PROPER CARE OF POOL & SPA LIFTS 12-13 PATRIOT-AT1 OPERATION INSTRUCTIONS 14-15 TROUBLESHOOTING GUIDE PATRIOT-AT1 PARTS LIST PATRIOT-AT1 PORTABLE CART PARTS LIST SEAT ASSEMBLY PARTS LIST WARRANTY Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... -
Page 3: Patriot-At1 Components
It is critical that all parts be carefully inspected by the installer prior to installation to ensure that no damage occurred in transit and that a damaged part is not used. If any damage occurred in transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit. - Page 4 Installation: ADA Guidelines ADA REQUIREMENTS: The Patriot-AT1 Lift is completely ADA Compliant when installed correctly. The installation must meet the following requirements: • Clear Deck Space Dimensions (see FIGURE 1) • Centerline of seat between 16 and 22 inches from the pool edge •...
-
Page 5: Patriot-At1 Assembly Instructions
NOTE: To extend battery life, always store battery on the charger when the lift is not in service. THREAD THROUGH SLOTS AND PINCH TOGETHER TO HOLD Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... - Page 6 THE TANK WITH 600lbs OF in commercial "ALL-PURPOSE" SAND. REPLACE SCREWS & CAPS applications. WHEN TANK IS FILLED. FIGURE 3 WARNING! DO NOT OPERATE THE LIFT BEFORE FILLING THE BALLAST TANK Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14...
-
Page 7: Patriot-At1 Fixing Kit Installation Instructions
Tighten the fixing bolt with a 3/4” wrench or socket. Tighten until the bolt is just touching the flat washer. DO NOT OVERTIGHTEN. Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... -
Page 8: Patriot-At1 Transportation & Use
READY TO USE FIGURE A Roll Patriot-AT1 Lift to designated position on the deck. Install fixing-bolt (when required). Stand behind the lift to tilt it back and down using the handle. (SEE Figure A) Roll the lift forward until it comes to the end and the pins engage with the slots. - Page 9 Rotate the brake-foot handle counter-clockwise and raise it off the deck. REMOVE THE FIXING BOLT (if applicable). The lift is now ready to move Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14...
-
Page 10: Battery Maintenance
Scotch-Brite pad and then apply dielectric grease (supplied with lift) as shown in the figure below. Clean with alcohol and a cotton swab and apply dielectric grease to terminals Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... -
Page 11: Proper Care Of Pool & Spa Lifts
Use white epoxy paint to touch up. Apply wax to finish. For service and/or replacement parts contact Aqua Creek Direct at Toll free: (888) 687-3552 Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... -
Page 12: Patriot-At1 Operation Instructions
Position Lift & Fix Apply Brakes, Tilt to Pool Deck Lift Back & Lower Down, Lock into Place Push & Hold Transfer to Lift, Down Arrow Button Lower Armrests & Fasten Belt Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... - Page 13 Then Release Lap Belt Release Lap Belt, Raise Push & Hold Up Arrow Armrests, & Exit Lift Seat Until Lift Stops Tilt Lift Back & Slide onto Unit, Release Brakes Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14...
-
Page 14: Troubleshooting Guide
Check the ends of the cords for corrosion or damage. The cord plugs should be recessed into the outlet. You should feel them pop into place when they are correctly inserted. Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... - Page 15 Note: the lift will not retract if the battery is not fully charged or if the control box is not working. The emergency button only overrides the remote handset. Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14...
-
Page 16: Patriot-At1 Parts List
NYLOCK, 5/16 SS 5/16” NYLOCK SS RER-50X100mm 2” X 4” RECT. BLACK CAP BOLT, 3/8 X 1 1/4 SHOULDER 3/8” X 1 1/4” SHOULDER BOLT, SS F-045AC WATER RESISTANT ACT. COVER Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... -
Page 17: Patriot-At1 Portable Cart Parts List
BOLT, 1/4 X 3/8 HWH 1/4” X 3/8” HEX WASHER HEAD, SS SQR-1-14-20 1” X 1” SQUARE BLACK CAP BOLT, 1/4 X 3 HCS 1/4”-20 X 3” HEX BOLT, SS Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... -
Page 18: Seat Assembly Parts List
SCREW, #10 X 3/4 PHSMS #10 X 3/4” PAN-HD SHT-MTL SCREW, SS F-38SB SEAT BELT, 2” BLACK W/ VELCRO FOR PP SCREW, #6 X 1/2 PHSMS #6 X 1/2” PAN-HD SHT-MTL SCREW, SS Copyright © 2014 Aqua Creek Products All Rights Reserved Revised 9/8/14... -
Page 19: Warranty
PATRIOT-AT1 PORTABLE POOL LIFT Aqua Creek Products lifts have a Limited Lifetime Warranty on the frames, not including the powder coat finish. Aqua Creek Prod- ucts, LLC (a.k.a. Aqua Creek) also warrants to the original end user that all non-frame components manufactured by Aqua Creek, when... - Page 20 Accessible Environments, Inc. National Authorized Dealer (800) 643-5906 - www.acessinc.com Williamsburg, VA...
