ADInstruments pH Amp Owner's Manual page 25

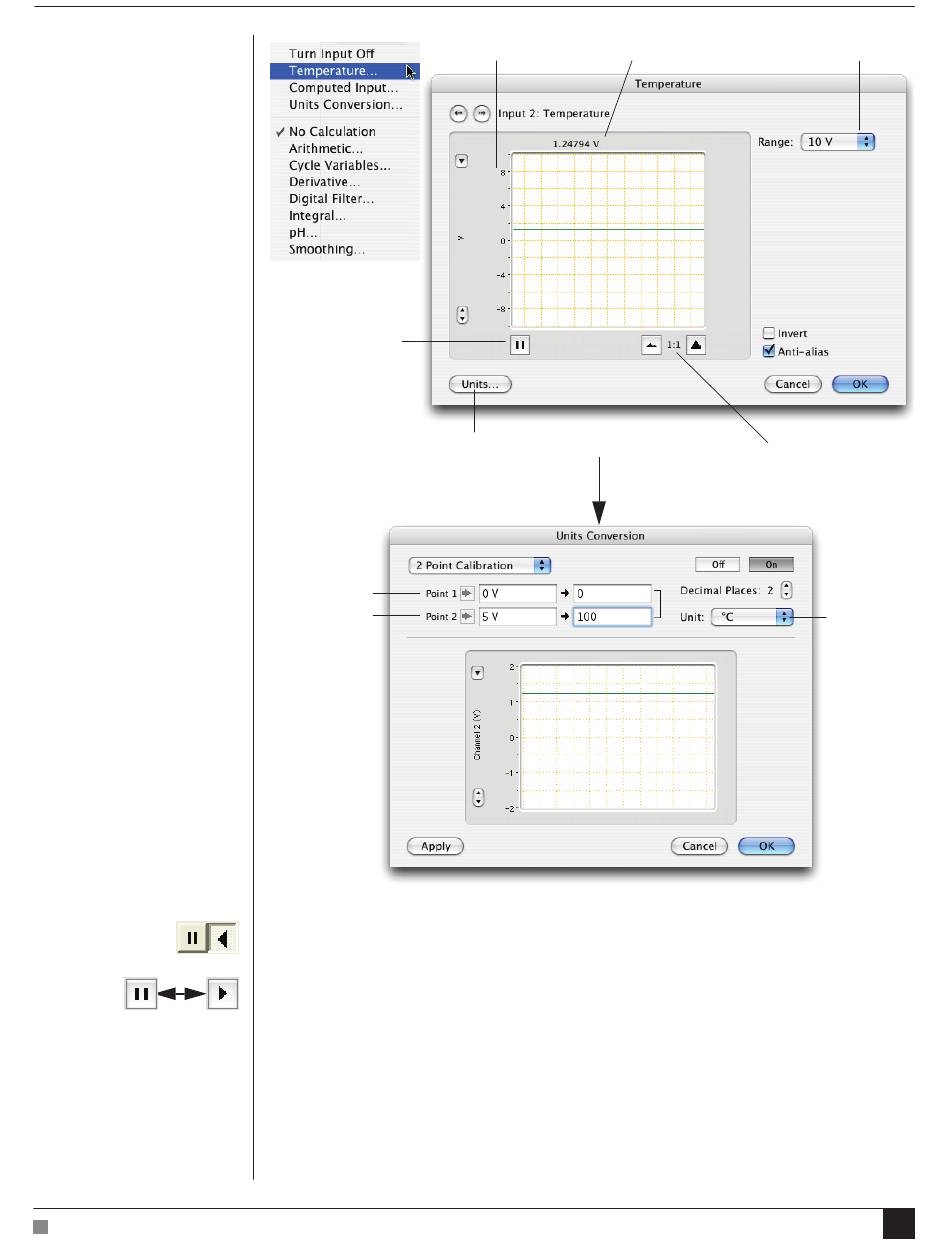

Figure 2–7
The Temperature dialog
(LabChart for Macintosh)
Figure 2–8
The Units Conversion dialog
(LabChart for Macintosh)
Chapter 2 Setting Up
Amplitude axis
Pause/Scroll button
Click this to open the Units Conversion dialog
The factory
settings for the
RTD probe are:
0 V = 0 °C
5 V = 100 °C
You can stop the signal scrolling by clicking the Pause button at the
bottom left (Macintosh) or top right (Windows) of the data display
area. This changes to the Scroll button on the Macintosh. Click the
Scroll button to start scrolling again.
Shift and stretch the vertical Amplitude axis, by clicking and dragging
it in various ways, to make the best use of the available display area.
It functions the same as the Amplitude axis of the Chart Window,
controls are identical and any change is applied to the Chart Window.
Signal amplitude Range pop-up menu
Compression buttons
Unit pop-up
menu
