Summary of Contents for Bartscher 900T2

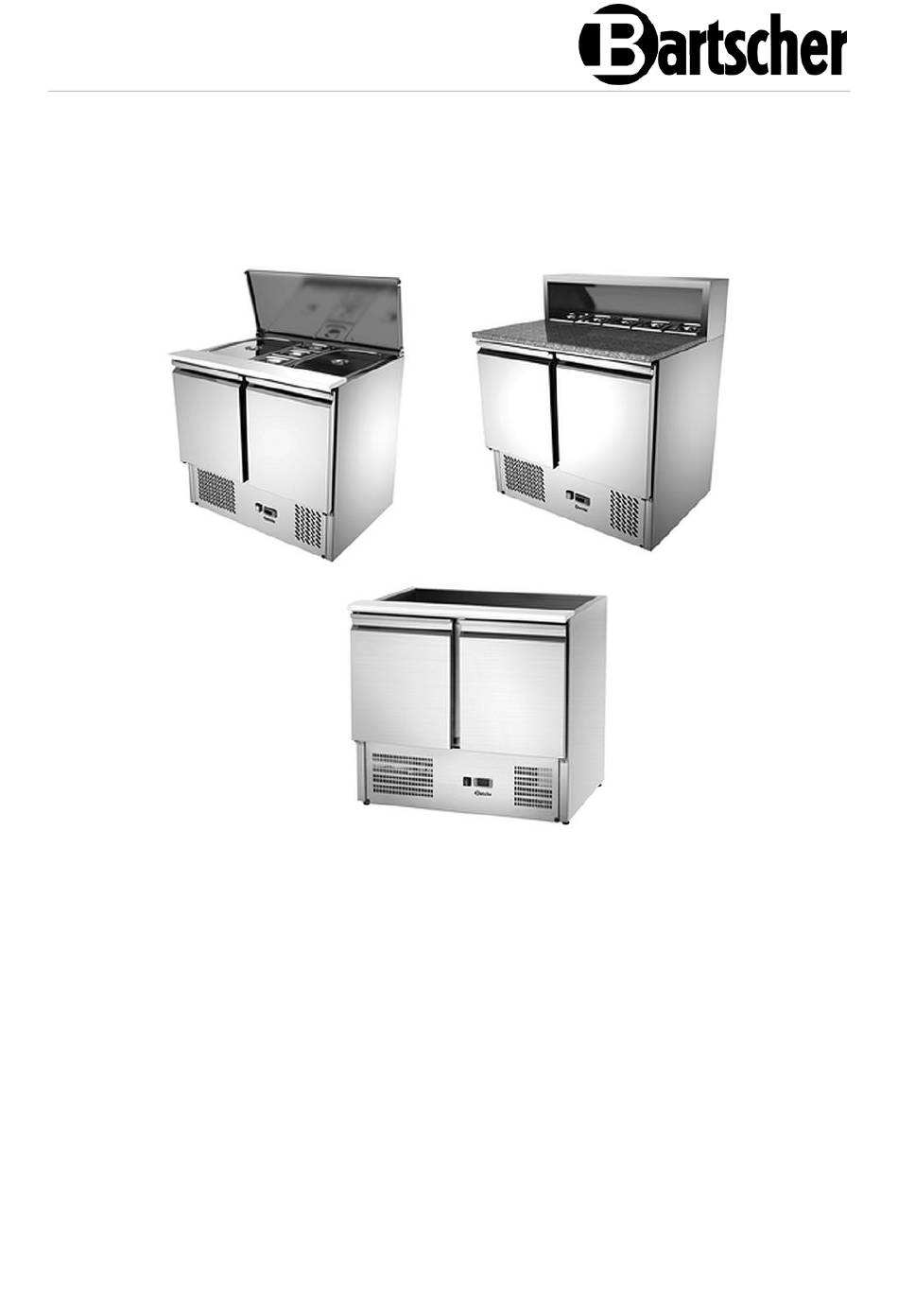

- Page 1 900T2 - 1365T3 - 900T2 - 438T1 - 900T2+GL 200356 - 200357 - 200358 - 200570 - 200575...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-09-29...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltende n ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling, preparation and sales of salads, fruit, vegetables and cold dishes. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data

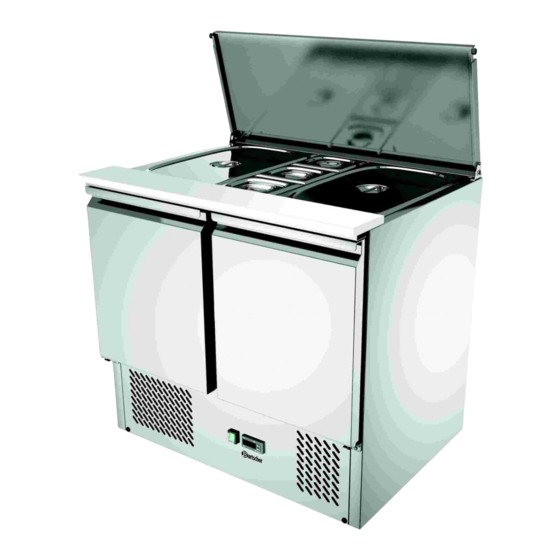

Technical Data Technical Data Technical Specifications Version / Characteristics • Material: chrome-nickel steel • Cooling: circulating air • Climate class: 4 • Cooling cabinets and drawers • Temperature control: digital • Thermostat • Control: electronic, button • Digital display • ON/OFF switch •... - Page 12 Technical Data Saladette 900T2 Name: 200356 Art. No.: Volume, in l: Number of cabinets: Cabinet dimensions (W x D x H), in mm: 428 x 570 x 590 GN capacity: 2 x 1/1 GN + 3 x 1/6 GN Number of doors:...
- Page 13 Technical Data Pizza Saladette 900T2 Name: 200358 Art. No.: Volume, in l: Number of cabinets: Cabinet dimensions (W x D x H), in mm: 428 x 497 x 590 GN capacity: 5 x 1/6 GN Number of doors: Coolant, amount in kg:...
-
Page 14: Functions Of The Appliance
Technical Data Saladette 900T2 +GL Name: 200575 Art. No.: Volume, in l: Number of cabinets: Cabinet dimensions (W x D x H), in mm: 428 x 570 x 590 GN capacity: 2 x 1/1 GN + 3 x 1/6 GN... -
Page 15: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 200356 Fig. 1 1. Cooling tube cover 2. Cooling tube 3. Cutting board 4. Appliance door (2 pcs.) 5. Housing 6. Feet (4 pcs.) 7. Ventilation openings 8. GN containers shelves (8 pcs) 9. - Page 16 Technical Data 200357 Fig. 2 1. Cooling tube cover 2. Cooling tube 3. Cutting board 4. Appliance door (3 pcs.) 5. Housing 6. Feet (4 pcs) 7. Ventilation openings 8. GN crossbars for containers (10 pcs.) 9. ON/OFF switch with integrated 10.
- Page 17 Technical Data 200358 Fig. 3 1. Cooling top 2. Cooling tube 3. Granite worktop 4. Appliance door (2 pcs.) 5. Housing 6. Feet (4 pcs.) 7. Ventilation openings 8. GN crossbars for containers (4 pcs) 9. ON/OFF switch with integrated 10.
- Page 18 Technical Data 200570 Fig. 4 1. Cover of the sliding part of the 2. Cover of the folding part of the chamber for the GN containers chamber for the GN containers 3. Cutting board 4. Appliance door 5. Housing 6. Ventilation openings 7.
- Page 19 Technical Data 200575 Fig. 5 1. GN shelves for containers 2. Cutting board 3. Appliance door (2 pcs.) 4. Housing 5. Feet (4 pcs.) 6. Ventilation openings 7. ON/OFF switch with integrated 8. Digital temperature controller power indicator light (green) 9.
-
Page 20: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 21 Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y. The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y.
-
Page 22: Operation
Installation and operation Operation Indications for User • Fill the refrigerated salad counter only when the digital display shows that the required temperature has been reached. • Put the food prepared for serving into suitable GN containers and then insert them into suitable compartments in doors, drawers or in the top (if available). - Page 23 Installation and operation 6. Before first use, before placing food in the salad counter, the appliance should reach the desired temperature. 7. Observe the notes in the following chapters of the operating manual to set the desired parameters. Control elements and displayed messages Button Functions Showing the set value, selection of parameters in the...
- Page 24 Installation and operation LED indicators The LED indicators in the digital display show the status of the active function: Status of the Meaning active function illuminates activated compressor flashes in delay illuminates defrosting in progress flashes defrosting delay illuminates fan activated flashes delay after defrosting illuminates...
- Page 25 Installation and operation Automatic defrosting The appliance defrosts automatically 4 times over 24-hour period. The timer initiates with the first activation. 1. If there is a need for the change of automatic defrosting phases, press the button and hold it for more than 2 seconds. The digital display shows the symbol.
-
Page 26: Cleaning And Maintenance
Cleaning and Maintenance Button combinations Concurrent pressing of two buttons enable activation/deactivation of a number of functions. Button locking or unlocking: – to lock, press both buttons concurrently and hold them pressed for more than 3 seconds, until the digital display shows the "OFF"... -
Page 27: Cleaning
Cleaning and Maintenance • For cleaning, do not use any scouring agents that contain solvents nor corrosive cleaning agents. They may damage the surface. Cleaning 1. Wash the device regularly. 2. Remove all food or meals from the appliance and store them temporarily in a cool room or in a refrigerator. -
Page 28: Maintenance
Cleaning and Maintenance Granite worktop (200358) 1. Granite worktop should be cleaned regularly with a soft, damp cloth. 2. When using cleaning agents, make sure that they are compatible with natural stone. Always observe instructions of such a cleaning agent's manufacturer. Refrigerated salad counter 1. -
Page 29: Possible Malfunctions
Possible Malfunctions – use the key to open the service hatch at the front and tilt downwards; – pull the filter behind the service hatch out of the bracket; – wash the filter under warm running water or in a dishwasher; –... - Page 30 Possible Malfunctions Error Possible Cause Solution No cooling Plug improperly inserted into Remove the plug and insert it socket. properly in the socket Electric power supply safety Check the fuse, connect the fuse damaged appliance to another socket No power supply Check the electric power supply Damaged temperature...
- Page 31 Possible Malfunctions Error Possible Cause Solution Water escapes Condensed water drain pipe Clean the water drain pipe or from housing is clogged or blocked remove the blocking objects Appliance is poorly levelled Adjust the appliance levelling through screwing the feet in/out Strange or loud Appliance is not placed on...
-
Page 32: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
