Summary of Contents for Bartscher 900S4

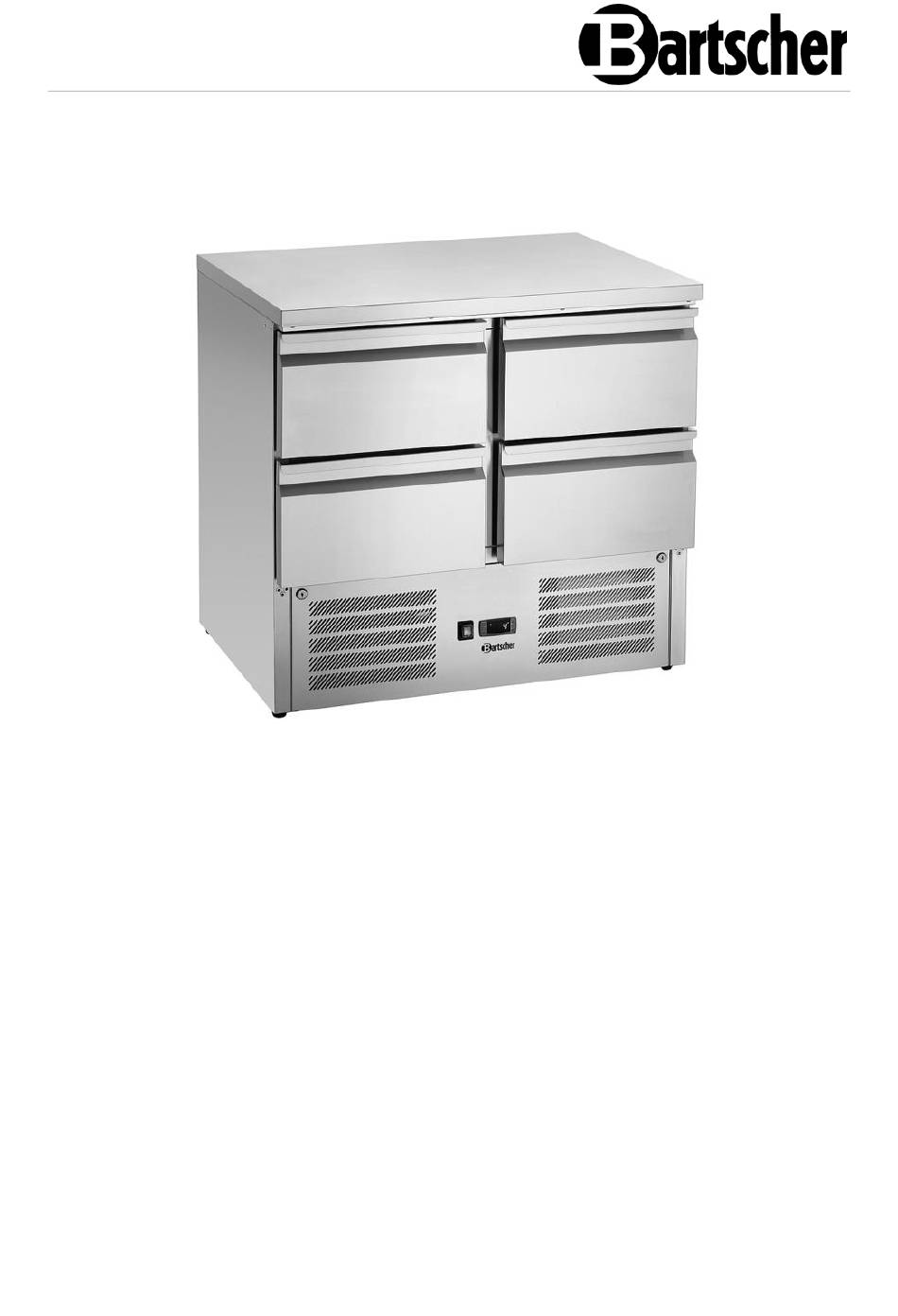

- Page 1 900S4 200282...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-04-13...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle un d N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling, preparation and sales of salads, fruit, vegetables and cold dishes. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Mini-Refrigerated Counter 900S4 Name: 200282 Art. No.: Material: stainless steel Number of drawers: Drawer dimensions (W x D x H), in mm: 304 x 515 x 140 Drawer Gastro Norm: 1/1 GN Temperature range, min.–max., in °C:... -
Page 12: Functions Of The Appliance
Technical Data Version / Characteristics • State at delivery: assembled for ready to use • Cooling: circulating air • Temperature control: digital • Thermostat • Control: electronic • Digital display • ON/OFF switch • Indicator light: ON/OFF • Automatic defrost function •... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Worktop 2. Drawer (4 pcs) 3. Technology unit 4. Stainless steel filter 5. Digital temperature controller 6. ON/OFF switch with integrated power indicator light (green) 7. Feet (4 pcs) 8. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 15 Installation and operation • Do not place the appliance in direct sunlight or in the vicinity of heat sources (cooker, radiator, heating devices, etc.). Heat sources may negatively affect power consumption, and restrict functions of the appliance, too. • The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconne ct the power c ord when nec ess ar y. The el ectric soc ket s hould be easil y accessibl e s o it is pos sibl e to quic kl y disconnect the power c ord when nec ess ar y.
-
Page 16: Operation
Installation and operation Operation Indications for the User • Fill the refrigerated counter only when the digital display shows that the required temperature has been reached. • Food products prepared for serving should be put into suitable GN containers and then insert them into suitable compartments in doors, drawers or in the top (if it is available). - Page 17 Installation and operation Appliance Preparation 1. Before use, clean the appliance and accessories thoroughly, following indications in section 6 'Cleaning and Maintenance'. 2. To end with, dry the appliance and accessories thoroughly. Appliance Start-Up 3. Plug the appliance into a suitable single socket. 4.
- Page 18 Installation and operation LED indicators The LED indicators in the digital display show the status of the active function: Status of the Meaning active function illuminates activated compressor flashes in delay illuminates defrosting in progress flashes defrosting delay illuminates fan activated flashes delay after defrosting illuminates...
- Page 19 Installation and operation Automatic defrosting The appliance defrosts automatically 4 times over 24-hour period. The timer initiates with the first activation. 1. If there is a need for the change of automatic defrosting phases, press the button and hold it for more than 2 seconds. The digital display shows the symbol.
-
Page 20: Cleaning And Maintenance
Cleaning and Maintenance Button combinations Concurrent pressing of two buttons enable activation/deactivation of a number of functions. Button locking or unlocking: – to lock, press both buttons concurrently and hold them pressed for more than 3 seconds, until the digital display shows the "OFF"... -
Page 21: Cleaning
Cleaning and Maintenance • For cleaning, do not use any scouring agents that contain solvents nor corrosive cleaning agents. They may damage the surface. Cleaning 1. Wash the appliance regularly. 2. Remove all objects from the appliance and store them temporarily in a cool room or in a refrigerator. -
Page 22: Possible Malfunctions
Possible Malfunctions 2. Cleaning the stainless steel filter underneath the appliance (weekly, by the personnel): – remove the filter from its bracket; – wash the filter under warm running water or in a dishwasher; – dry the filter thoroughly or leave it in the open air to dry;... - Page 23 Possible Malfunctions Error Possible Cause Solution No cooling Plug improperly inserted into Remove the plug and insert it socket. properly in the socket Electric power supply safety Check the fuse, connect the fuse damaged appliance to another socket No power supply Check the electric power supply Damaged temperature...
-
Page 24: Disposal
Disposal Error Possible Cause Solution Water escapes Condensed water drain pipe Clean the water drain pipe or from housing is clogged or blocked remove the blocking objects Appliance is poorly levelled Adjust the appliance levelling through screwing the feet in/out Strange or loud Appliance is not placed on Place the appliance on an...
