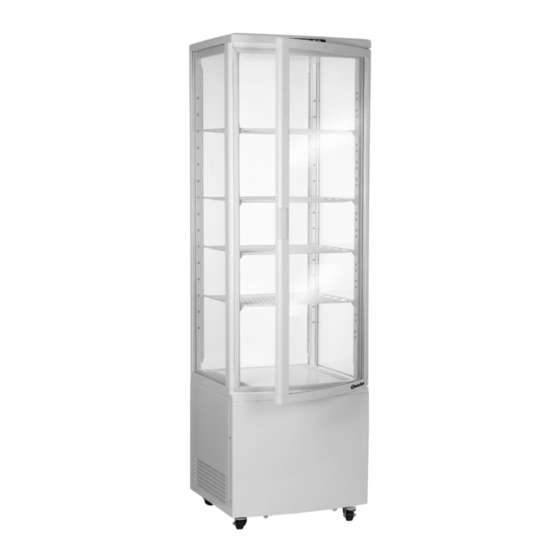

- Page 1 235L 700235G Bedienungsanleitung D/A/CH Kühlvitrine Seite 1 bis 16 Instruction manual Refrigerated showcase GB/UK from page 17 to 32 Mode d’emploi Vitrine réfrigérée F/B/CH de page 33 à page 48 V3/1114...
-
Page 2: Table Of Contents
6. Cleaning and maintenance ..................28 6.1 Safety advice ....................... 28 6.2 Cleaning ......................29 6.3 Safety instructions for maintenance ..............29 7. Possible Malfunctions .................... 30 8. Waste disposal ......................32 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
o Children should not play with the device. o Cleaning and maintenance cannot be performed by children younger than 8 years old and must be done under supervision. o Children under the age of 8 years old must be kept away from the device and its power cord. -
Page 7: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data
4. Technical data 4.1 Overview of parts Display Glass door Grid Air outlet Air suction Swivel castors Grid The height of grid is adjustable for various goods. For adjustment: 1. Take out the grid. 2. Move the grid support on suitable height. 3. -
Page 9: Technical Specification
4 - Control/programming button 5 - Button for lowering temperature 6 - LCD indicator - defrost 7 - LCD indicator - compressor 4.2 Technical specification Description: Refrigerated showcase 235L 700235G Code-No.: Construction: 4 swivel castors, 2 with brakes Volume: 235 litres... -
Page 10: Installation And Operation
5. Installation and operation 5.1 Safety instructions • Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable. •... -
Page 11: Operation
• Maintain at least 10 cm from walls and other objects to ensure proper circulation of air around the device. • Never cover the device’s ventilation ducts. • Do not put the device in spaces with high ambient humidity, as this may damage the device. - Page 12 Setting the temperature • The ideal temperature settings have been programmed at the factory and are between 2 ° C (lower temperature limit) and 6 ° C (up per temperature limit). These settings allow the refrigerated showcase to function in the temperature range of approx.
-
Page 13: Cleaning And Maintenance
Notes for use • In order to cool effectively the door should never be opened for a long time. Furthermore, the doors should not be opened too often. • Never block the air inlet or the air outlet of the refrigerated showcase. In order to guarantee the cooling effect a sufficient air stream must develop. -
Page 14: Cleaning
6.2 Cleaning o Clean the refrigerated showcase regularly. o Take out the grids and wash them off using a soft cleaning agent and a soft cloth. o Clean the inside and outside of the refrigerated showcase by using warm water, a soft cloth and a mild cleaning agent. -
Page 15: Possible Malfunctions
7. Possible Malfunctions Problem Cause Solution • Plug not connected to • Connect the plug properly. socket. No cooling • Defective fuse. • Check the power supply. effect at all. • Power breakdown. • Check the power supply. • Direct sunlight or heat •... - Page 16 The following are not examples of damage: 1. The sound of flowing water: this happens during normal use, and results from the flow of coolant trough the device. 2. Condensation drops on side glass panes are normal when the ambient humidity is high.
-
Page 17: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
