Bartscher Saladette 900T2 Original Instruction

Bartscher Saladette 900T2 Original Instruction

Hide thumbs Also See for Saladette 900T2:
Table of Contents

Advertisement

Quick Links

Download this manual
200257
200256
200258
200270
200275
Original-Gebrauchsanleitung
V3/0817

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Saladette 900T2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bartscher Saladette 900T2

Summary of Contents for Bartscher Saladette 900T2

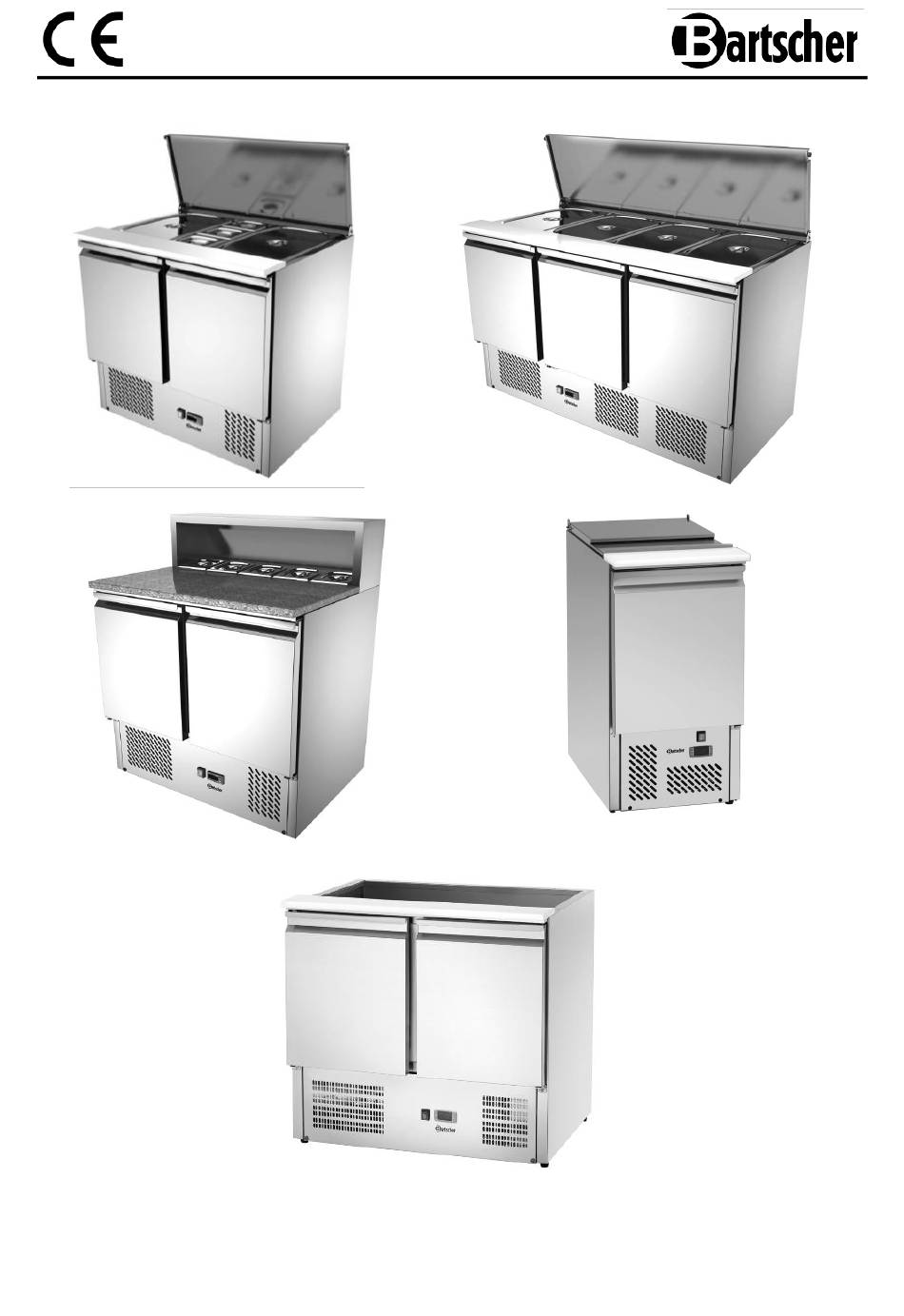

  • Page 1 200257 200256 200258 200270 200275 Original-Gebrauchsanleitung V3/0817...

  • Page 2: Table Of Contents

    5. Installation and operation ..................43 5.1 Positioning and connection ................... 43 5.2 Operation ......................45 6. Cleaning and maintenance ..................49 7. Possible Malfunctions .................... 51 8. Waste disposal ......................52 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...

  • Page 3: Safety

    Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.

  • Page 4: Safety Instructions

    HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5  Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!  Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself. ...
  • Page 6  Check the power cord regularly for damage. Do not use the device if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers. ...
  • Page 7 WARNING! Fire or explosion hazard! To avoid the hazard results please follow the safety instructions below.  Do not store the flammable or explosive substances in the device, like ether, kerosene, or glues.  Do not clean the device with use of flammable liquids. The released vapours may cause fire or explosion.

  • Page 8: Proper Use

    1.3 Proper use CAUTION! The device has been designed and constructed only for commercial use and should be operated by qualified personnel of restaurants, cafeterias and similar facilities. The operational safety of the device is assured only in case of proper use, according to the operation manual.

  • Page 9: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.

  • Page 10: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

  • Page 11: Technical Data

    4. Technical data 4.1 Overview of parts 200256 Cooling basin cover Cooling basin Cutting board Housing Door (2) Digital temperature controller ON/OFF switch with power indicator Ventilation ducts Feet (4) Grid– shelf (2) Rails for grid – shelf Adapter bars for GN containers (8) - 36 -...
  • Page 12 200257 Cooling basin cover Cooling basin Cutting board Housing Door (3) Digital temperature controller ON/OFF switch with power indicator Ventilation ducts Feet (4) Grid– shelf (3) Rails for grid – shelf Adapter bars for GN containers (10) - 37 -...
  • Page 13 200258 Cooling top Cooling basin Granite worktop Housing Door (2) Digital temperature controller ON/OFF switch with power indicator Ventilation ducts Feet (4) Grid– shelf (2) Rails for grid – shelf Adapter bars for GN containers (4) - 38 -...
  • Page 14 200270 Sliding part of the cover of GN-containers basin Tilting part of the cover of GN-containers basin Cutting board Door ON/OFF switch with power indicator Digital temperature controller Feet (4) Ventilation ducts Housing Grid– shelf (1) Rails for grid – shelf Adapter bars for GN containers (2) - 39 -...
  • Page 15 200275 GN container area Feet (4) Cutting board Housing Door (2) Grid– shelf (2) Rails for grid – shelf Digital temperature controller ON/OFF switch with power indicator Adapter bars for GN containers (8) Ventilation ducts - 40 -...

  • Page 16: Technical Specification

    4.2 Technical specification Name Saladette 900T2 200256 Code-No.:  for 2 x 1/1 GN and 3 x 1/6 GN (or 6x 1/3 and 3x 1/6), Design: GN containers 150 mm deep ***  2 doors  electronic control  circulating air cooling ...
  • Page 17 Name Pizza Saladette 900T2 200258 Code-No.:  cooling top for 5 x 1/6 GN (or 2 x 1/3 GN and 1 x 1/6 GN, Design: GN containers 150 mm deep ***  2 doors  electronic control  circulating air cooling ...

  • Page 18: Installation And Operation

    Name Saladette 900T2 +GL 200275 Code-No.:  for 3x 1/6 GN and 2 x 1/1 GN, Design: GN containers 150 mm deep ***  2 doors  electronic control  circulating air cooling  condensation water evaporation  with foamed evaporator Material: housing: chrome-nickel steel;...
  • Page 19  Do not place the device in the vicinity of an open flame, electric ovens, heating stoves or other heat sources, such as direct sunlight. High temperatures may adversely affect cooling performance and power consumption.  The device should be set so that there is an adequate supply of air circulation. Keep a 10 cm clearance on the sides and rear, and 30 cm from the ceiling or cabinets.

  • Page 20: Operation

    5.2 Operation Before first use  Before the initial start-up, clean the saladette. Follow the instructions in section 6 „Cleaning and maintenance“.  Plug the device to the single, grounded socket.  Turn the device with ON/OFF power switch located on the front panel of the device. The green power indicator in the switch will come on.
  • Page 21 Combination of buttons To activate or deactivate some of the functions you may need to press more than one button at the same time. Block or unblock the buttons: - to block, press both buttons and hold longer than 3 seconds, until you see “OFF”...
  • Page 22 Indication of required value  shortly press button to show the required temperature;  press button again or wait 5 seconds to return to the previous indication. Change of required value (required temperature)  press and hold button for at least 3 seconds; ...
  • Page 23 Defrosting manually In addition to automatic defrosting, manually defrosting can be activated at any time, to do this, hold down the for more than 2 seconds. Manual defrosting commences. The digital display shows „ “. NOTE! Condensation water evaporates automatically. Tips for the use ...

  • Page 24: Cleaning And Maintenance

    6. Cleaning and maintenance WARNING! Before cleaning disconnect the device from the power supply (pull the plug!). Do not use pressurized water jest for cleaning! Protect the device from the water penetration. o The device should be cleaned regularly to avoid hygiene problems and malfunctions. o Before cleaning, remove the food from the device and put them in the refrigerator so as to avoid deterioration.
  • Page 25 Condenser CAUTION! A dirty condenser has a negative impact on the performance of the device and increases energy consumption! Clean the condenser regularly (once a week) to maintain its full performance by following the instructions below: o Disconnect the device from the power supply (pull the plug!). o Unscrew and remove the protective grille on the front of the device and remove the grille to make the condenser easily accessible.

  • Page 26: Possible Malfunctions

    7. Possible Malfunctions In case of failure turn the device off with the main switch and disconnect the device from the power supply (pull the plug!). Before calling the technician or informing the vendor check the possibility of removing the failure by yourself according to the table below. Failure Possible reason Solution...

  • Page 27: Waste Disposal

    CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...

This manual is also suitable for:

Saladette 1365t3Saladette 900t2 +glSaladette 438t1Pizza saladette 900t2
