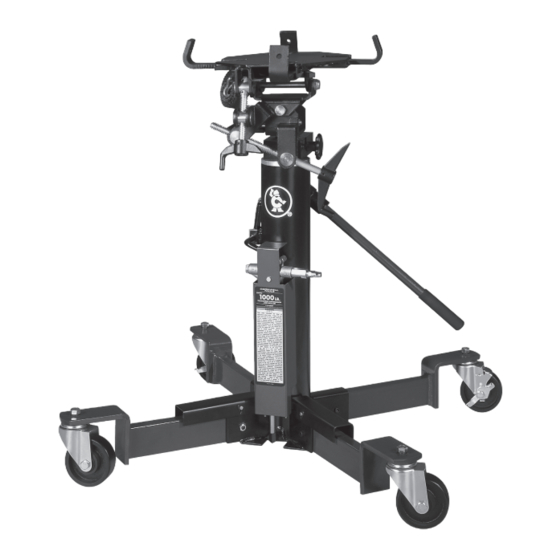

1,000 lb. telescoping transmission jack with air

Advertisement

Quick Links

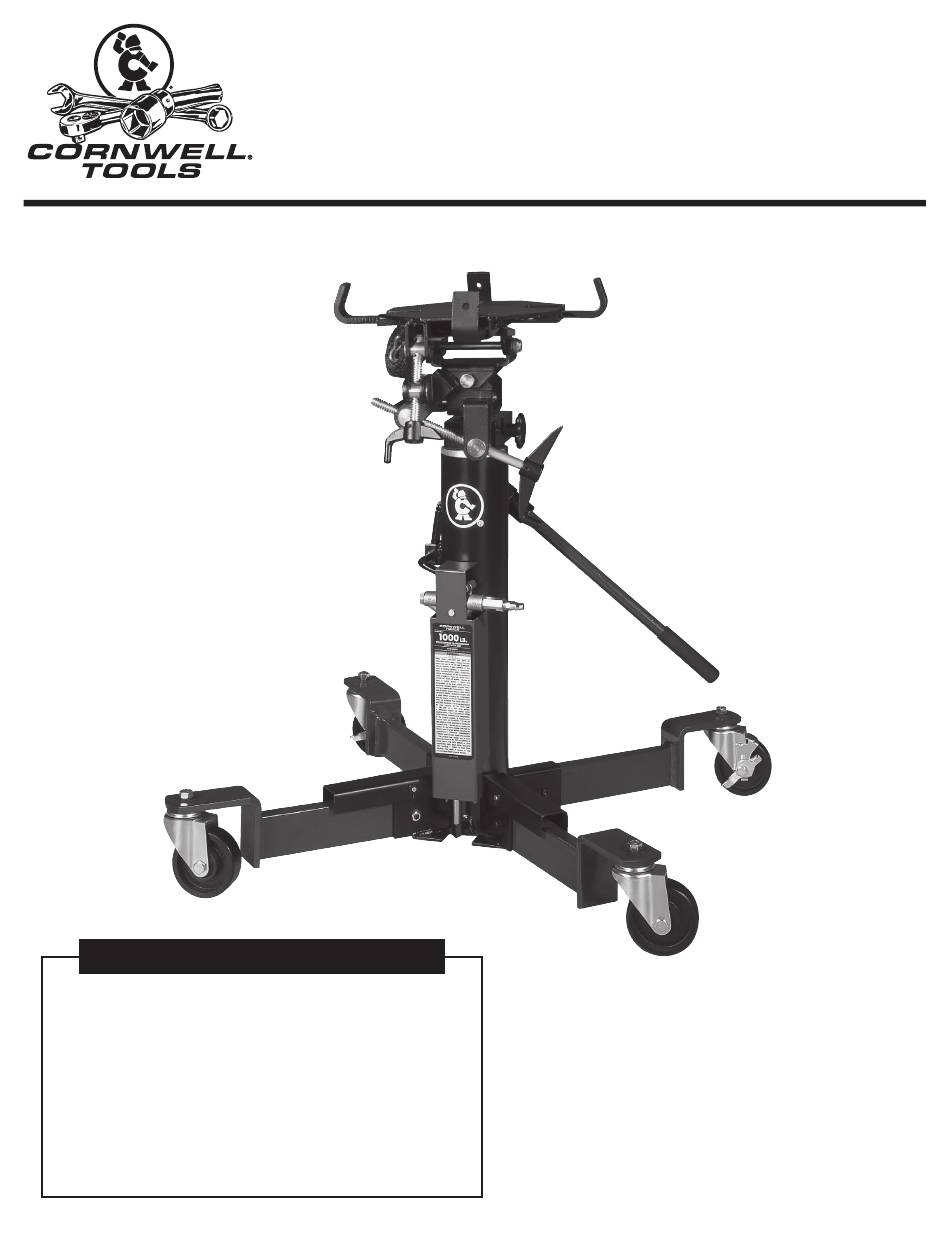

OPERATING MANUAL
SPECIFICATIONS
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,000 Lbs.
Maximum Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75"
Minimum Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35"
Saddle Tilt Fore and Aft . . . . . . . . . . . . . . . . . 37º by 26º
Saddle Tilt Side to Side . . . . . . . . . . . . . . . . . +12º, -12º
Base Size . . . . . . . . . . . . . . . . . . . . . . . . 30-1/4" square
Required Air Pressure . . . . . . . . . . . . . . . . . . . .100 psig
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 145.2 Lbs.
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . 167.5 Lbs.
CTJTJ1KA
WARNING INFORMATION
-Save these instructions-
1,000 Lb. Telescoping Transmission
PARTS LIST
1
CTJTJ1KA
Jack with Air
Manufactured to comply with the
ASME PASE-2019 Safety Standard
Copyright © Professional Tool Products, 2020
All rights reserved
03/23/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTJTJ1KA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cornwell Tools CTJTJ1KA

  • Page 1 CTJTJ1KA 1,000 Lb. Telescoping Transmission Jack with Air OPERATING MANUAL WARNING INFORMATION PARTS LIST Manufactured to comply with the • • ASME PASE-2019 Safety Standard SPECIFICATIONS Capacity ......1,000 Lbs.
  • Page 2 • Use of this product is limited to the removal, installation and transportation in the lowered position, of transmissions, transfer cases and transaxles. • Do not use any adapters unless approved or supplied by Cornwell Tools. • Do not use (or modify) this product for any other purpose than that for which it was designed without consulting the manufacturer's authorized representative.
  • Page 3 CTJTJ1KA 1,000 Lb. Telescoping Transmission Jack with Air INSPECTION Visual inspection should be made before each use of the jack, checking for leaking hydraulic fluid and damaged, loose or missing parts. Each jack must be inspected by a manufacturer’s repair facility immediately, if subjected to an abnormal load or shock. Any jack which appears to be damaged in any way, is found to be badly worn, or operates abnormally MUST BE REMOVED FROM SERVICE until necessary repairs are made by a manufacturer’s authorized repair facility.
  • Page 4 CTJTJ1KA 1,000 Lb. Telescoping Transmission Jack with Air PREVENTATIVE MAINTENANCE This is the safety alert symbol used for the PREVENTATIVE MAINTENANCE section of this manual to alert you to potential personal injury hazards. Obey all instructions to avoid possible injury or death.
  • Page 5 CTJTJ1KA 1,000 Lb. Telescoping Transmission Jack with Air 1-62 1-61 1-60 1-59 1-58 3-5A 1-54 3-5B 1-67 1-57 1-53 1-55 1-52 3-5C 1-56 1-65 1-51 1-87 1-66 1-84 1-83 1-64 1-68 1-63 3-24 1-69 3-25 1-55 3-23 1-70 1-56 1-50...
  • Page 6 CTJTJ1KA 1,000 Lb. Telescoping Transmission Jack with Air Item No. Part No. Description Qty. Item No. Part No. Description Qty. 1-1A Oil Cylinder Assembly 1-49 Oil Cylinder Coupler 1-50 Copper Washer 1-51 Steel Ball Pedal A 1-52 Spring 1-53 Steel Ball...
