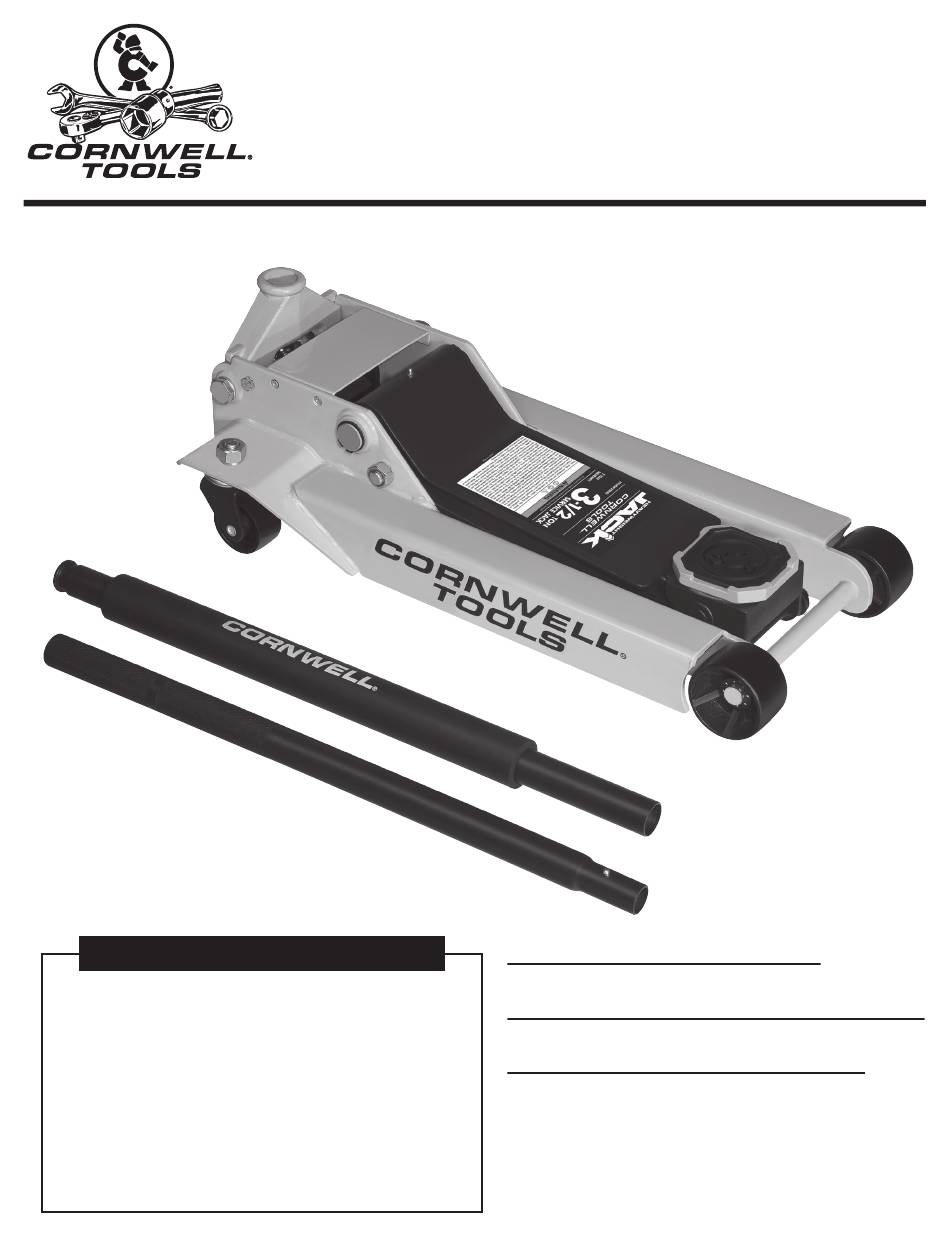

OPERATING MANUAL
SPECIFICATIONS
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 .5 Ton
Maximum Height . . . . . . . . . . . . . . . . . . . . . . . . . . 21 .3"
Minimum Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 .8"
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28"
Overall Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 .8"
Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 .5"
Handle Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50"
Saddle Diameter (diagonal) . . . . . . . . . . . . . . . . . . . 4 .7"
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 .4 Lbs .
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . 116 .8 Lbs .
CTJHW35BL/CTJHW35NG/CTJHW35RG
WARNING INFORMATION
•
-Save these instructions-
CTJHW35BL/NG/RG

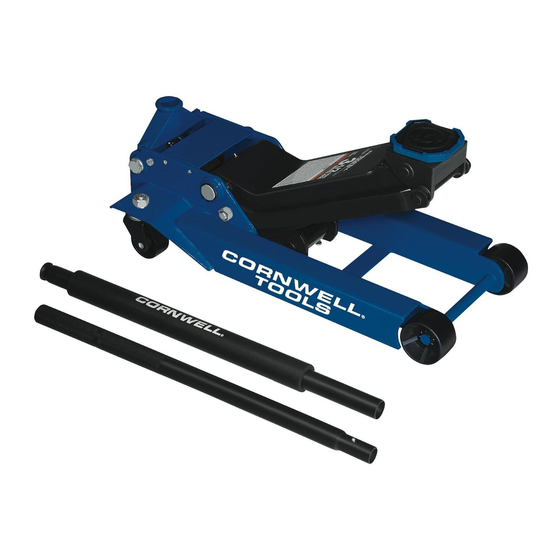

3-1/2 Ton Service Jack
PARTS LIST
Manufactured to comply with the
•
ASME PASE-2019 Safety Standard
CTJHW35BL
CTJHW35NG
CTJHW35RG
3-1/2 Ton Service Jack
Copyright © Professional Tool Products, 2020
1
( BLUE )
( NEON GREEN )
( ORANGE )
All rights reserved
03/12/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CTJHW35BL
Summary of Contents for Cornwell Tools CTJHW35BL
- Page 1 CTJHW35BL/NG/RG 3-1/2 Ton Service Jack OPERATING MANUAL WARNING INFORMATION PARTS LIST Manufactured to comply with the • • ASME PASE-2019 Safety Standard CTJHW35BL ( BLUE ) SPECIFICATIONS CTJHW35NG ( NEON GREEN ) Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 .5 Ton Maximum Height .
-
Page 2: Warning Information
CTJHW35BL/NG/RG 3-1/2 Ton Service Jack WARNING INFORMATION This is the safety alert symbol . It is used to alert you WARNING: Indicates a hazardous situation WARNING to potential personal injury hazards . Obey all safety which, if not avoided, could result in death messages that follow this symbol to avoid possible or serious injury . -
Page 3: Operation
CTJHW35BL/NG/RG 3-1/2 Ton Service Jack INSPECTION Visual inspection should be made before each use of the jack, checking for leaking hydraulic fluid and damaged, loose or missing parts. Each jack must be inspected by a manufacturer’s repair facility immediately, if subjected to an abnormal load or shock. Any jack which appears to be damaged in any way, is found to be badly worn, or operates abnormally MUST BE REMOVED FROM SERVICE until necessary repairs are made by a manufacturer’s authorized repair facility. -
Page 4: Warranty Coverage
CTJHW35BL/NG/RG 3-1/2 Ton Service Jack WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants against defects on this product for a period of TWO (2) YEARS from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials. - Page 5 CTJHW35BL/NG/RG 3-1/2 Ton Service Jack HYDRAULIC JACK MAINTENANCE GUIDE IMPORTANT: Service jacks are designed for lifting purposes only; always support raised load with jack stands. REGULAR MAINTENANCE • MONTHLY or as necessary (depending on usage) 1. Using a grease gun, add grease to grease fitting in the lift arm pivot shaft. (Use a multi-purpose NLGI type grease only.) 2.
-
Page 6: Parts List
CTJHW35BL/NG/RG 3-1/2 Ton Service Jack PARTS LIST Item Part Item Part Description Qty. Description Qty. RS35T01 Star Washer Roller Pin RS35T02 Flat Washer CTJHW35PUNIT Power Unit Assembly CTJHW35WHEEL Front Wheel - Black RS35T18 Release Valve Assembly Jack Frame - Blue...
