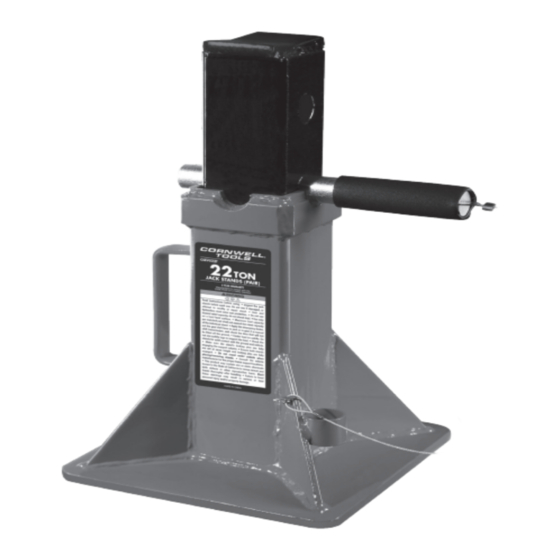

22 ton jack stands (pair) - blue

Advertisement

Quick Links

OPERATING MANUAL

SPECIFICATIONS

Maximum Capacity . . . . . . . . . . . . . . . . . . . . . . . 22 Ton
Maximum Height . . . . . . . . . . . . . . . . . . . . . . . . 19-3/4"
Minimum Height . . . . . . . . . . . . . . . . . . . . . . . . . 11-7/8"
Height Interval . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 x 3"
Base Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10" x 10"
Saddle Size . . . . . . . . . . . . . . . . . . . . . 2-5/16" x 3-1/2"
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 .75 Lbs .
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . 75 Lbs .
CSEVS22T

WARNING INFORMATION

-Save these instructions-
22 Ton Jack Stands (pair) - Blue
Manufactured to comply with the
ASME PASE-2019 Safety Standard
Copyright © Professional Tool Products, 2020
1
CSEVS22T
All rights reserved
03/10/20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSEVS22T and is the answer not in the manual?

Questions and answers

Summary of Contents for Cornwell Tools CSEVS22T

  • Page 1 CSEVS22T 22 Ton Jack Stands (pair) - Blue OPERATING MANUAL WARNING INFORMATION PARTS LIST Manufactured to comply with the • • ASME PASE-2019 Safety Standard SPECIFICATIONS Maximum Capacity . . . . . . . . . . . . . . . . . . . . . . . 22 Ton Maximum Height .
  • Page 2 CSEVS22T 22 Ton Jack Stands (pair) - Blue This is the safety alert symbol . It is used to alert you WARNING: Indicates a hazardous situation WARNING to potential personal injury hazards . Obey all safety which, if not avoided, could result in death messages that follow this symbol to avoid possible or serious injury .
  • Page 3 2. Every jack stand owner is responsible for keeping the stand labels clean and readable. Use a mild soap solution to wash external surfaces of the stand. Contact Cornwell Tools for a replacement label if your stand's label is not readable.
  • Page 4 CSEVS22T 22 Ton Jack Stands (pair) - Blue WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants against defects on this product for a period of TWO (2) YEARS from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
  • Page 5 CSEVS22T 22 Ton Jack Stands (pair) - Blue PARTS LIST Support Column Locking Pin with Wire: RS152201 Base Due to safety precautions, the only replaceable part is RS152201, locking pins with wire. Product label kits are also available as: RSCSEVS22TPLK - 1 pair of labels...
