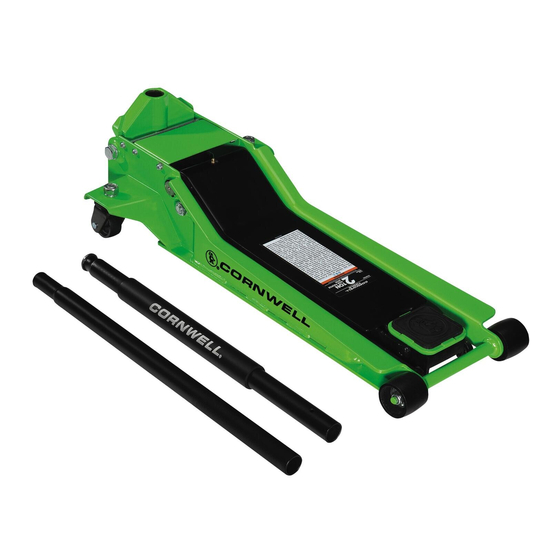

OPERATING MANUAL
SPECIFICATIONS
Maximum Capacity . . . . . . . . . . . . . . . . . . . . . . . . 2 Ton
Minimum Height . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3/4"
Maximum Height . . . . . . . . . . . . . . . . . . . . . . . . 24-1/4"
Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . 34-1/2"
Overall Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15"
Handle Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46"
Saddle Diameter (diagonal) . . . . . . . . . . . . . . . . . 4-3/4"
Net Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Lbs .
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . 103 Lbs .
CTJLP2NG
WARNING INFORMATION
•
-Save these instructions-
2 Ton Low Profile Jack
PARTS LIST
Manufactured to comply with the
•
ASME PASE-2019 Safety Standard
Copyright © Professional Tool Products, 2020
1
CTJLP2NG
- Neon Green
All rights reserved
04/15/20
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CTJLP2NG
Summary of Contents for Cornwell Tools CTJLP2NG
- Page 1 CTJLP2NG 2 Ton Low Profile Jack - Neon Green OPERATING MANUAL WARNING INFORMATION PARTS LIST Manufactured to comply with the • • ASME PASE-2019 Safety Standard SPECIFICATIONS Maximum Capacity . . . . . . . . . . . . . . . . . . . . . . . . 2 Ton Minimum Height .
- Page 2 CTJLP2NG 2 Ton Low Profile Jack - Neon Green WARNING INFORMATION This is the safety alert symbol . It is used to alert you WARNING: Indicates a hazardous situation WARNING to potential personal injury hazards . Obey all safety which, if not avoided, could result in death messages that follow this symbol to avoid possible or serious injury .
- Page 3 CTJLP2NG 2 Ton Low Profile Jack - Neon Green INSPECTION Visual inspection should be made before each use of the jack, checking for leaking hydraulic fluid and damaged, loose or missing parts. Each jack must be inspected by a manufacturer’s repair facility immediately, if subjected to an abnormal load or shock. Any jack which appears to be damaged in any way, is found to be badly worn, or operates abnormally MUST BE REMOVED FROM SERVICE until necessary repairs are made by a manufacturer’s authorized repair facility.
- Page 4 CTJLP2NG 2 Ton Low Profile Jack - Neon Green TROUBLESHOOTING Important: Service jacks are self-contained devices used for lifting, but not sustaining, a partial vehicular load. In accordance with ASME PASE- 2019 Load Sustaining Test: “A load not less than the rated capacity…shall not lower more than 1/8" (3.18mm) in the first minute, nor a total of .1875"...
- Page 5 CTJLP2NG 2 Ton Low Profile Jack - Neon Green HYDRAULIC JACK MAINTENANCE GUIDE IMPORTANT: Service jacks are designed for lifting purposes only; always support raised load with jack stands. REGULAR MAINTENANCE • MONTHLY or as necessary (depending on usage) 1. Using a grease gun, add grease to grease fitting in the lift arm pivot shaft. (Use a multi-purpose NLGI type grease only.) 2.
- Page 6 CTJLP2NG 2 Ton Low Profile Jack - Neon Green PARTS LIST 26 27 23 24 Item Part Item Part Description Qty. Description Qty. RS20001 Bushing Shaft RS20002BK Front Wheel - Black Roller RS20003 Washer Snap Ring RS20004 RS20012 Handle Set Screw RS20005 Rear Caster Assembly (incl.
