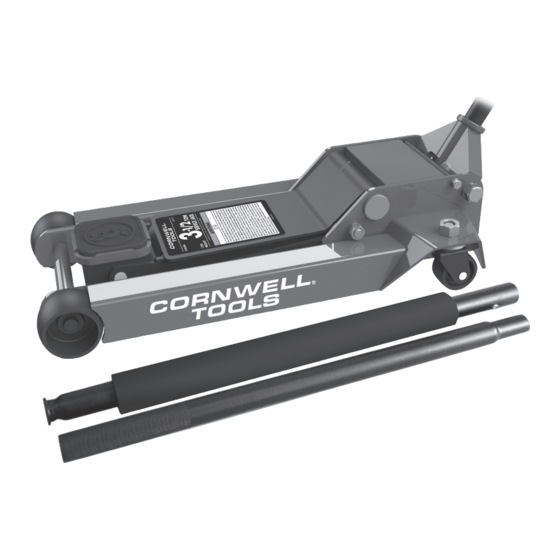

Cornwell Tools CTJ35NG Operating Manual

Table of Contents

Download this manual

• Operating Manual • Warning Information • Parts List

SPECIFICATIONS

Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 .5 Ton

Low Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 .75"

Raised Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 .25"

Overall Length . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 .95"

Overall Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 .84"

Overall Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 .5"

Handle Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50"

Saddle Diameter (diagonal) . . . . . . . . . . . . . . . . . . 4 .72"

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 .4 Lbs .

Manufactured to comply with the

ASME PASE-2014 Safety Standard

CTJ35NG

3-1/2 Ton Service

Jack - Neon Green

9/15/16

Table of Contents

Do you have a question about the CTJ35NG and is the answer not in the manual?

Page 1 Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 .4 Lbs . CTJ35NG...
Page 2 Failure to read this manual completely and thoroughly, understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS, MAINTENANCE INSTRUCTIONS and not comply with them, and neglecting the METHODS TO AVOID HAZARDOUS SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage. CTJ35NG 9/15/16...
Page 3 Take corrective action before using the jack again. Any hydraulic repairs within the warranty period must be performed by an authorized service center. CTJ35NG 9/15/16...
Page 4 This warranty gives you specific legal rights, and you may also have other rights that vary by state. Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. CTJ35NG 9/15/16...
Page 5 Numbers shown in this illustration match the step numbers above (Regular Maintenance) NOTE: Premature wearing of parts or components caused by loose or missing hardware that have not been replaced or tightened in a correct and timely manner are not eligible for warranty consideration. CTJ35NG 9/15/16...
Page 6 CTJ35NG: 3-1/2 TON SERVICE JACK - NEON GREEN PARTS Item Part Item Part Description Qty. Description Qty. RS35T01 Star Washer Retainer Ring (12) RS35T02 Flat Washer Roller RS35003BK Front Wheel (Black) Roller Pin Jack Frame RS350LR23 Power Unit RS35B10 Rear Caster Assembly (Flat Black)
