• Operating Manual • Warning Information • Parts List
Maximum Capacity . . . 22 Ton @ 100 psig
Maximum Height . . . . . . . . . . . . . .17-5/8"
Minimum Height . . . . . . . . . . . . . . . .8-7/8"
Extension Screw Adjustment . . . . . . . . . 4"
Ram Travel . . . . . . . . . . . . . . . . . . . .4-3/4"
Overall Length . . . . . . . . . . . . . . . .23-1/2"

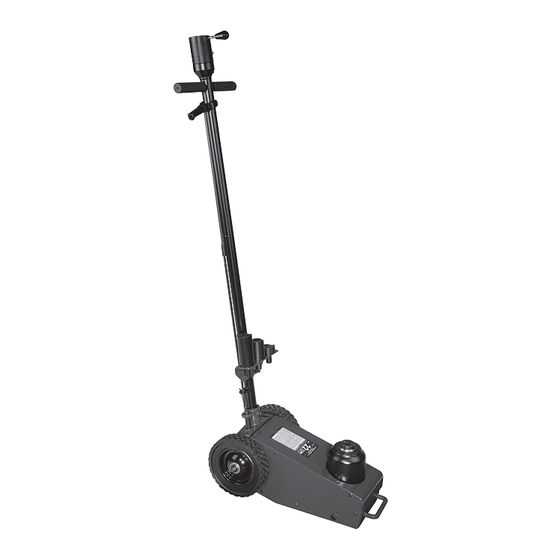

CTJTRJ22T
22 Ton Air/Hydraulic
Truck Jack - Blue
Manufactured to comply with the
ASME PASE-2014 Safety Standard
CTJTRJ22T
SPECIFICATIONS
Overall Width . . . . . . . . . . . . . . . .12-7/16"
Handle Length . . . . . . . . . . . . . . . .48-3/8"
Saddle Diameter . . . . . . . . . . . . . .1-13/16"
Wheel Diameter . . . . . . . . . . . . . . . . . . . 8"
Net Weight . . . . . . . . . . . . . . . . . 83 .8 Lbs .
Shipping Weight . . . . . . . . . . . . . 88 .2 Lbs .
Copyright © Professional Tool Products, 2017
All rights reserved
6/2/17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CTJTRJ22T
Summary of Contents for Cornwell Tools CTJTRJ22T
- Page 1 Overall Length . . . . . . . . . . . . . . . .23-1/2" Shipping Weight . . . . . . . . . . . . . 88 .2 Lbs . CTJTRJ22T 22 Ton Air/Hydraulic...
- Page 2 Failure to read this manual completely and thoroughly, understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS, MAINTENANCE INSTRUCTIONS and not comply with them, and neglecting the METHODS TO AVOID HAZARDOUS SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage. CTJTRJ22T 6/2/17...
- Page 3 Although jack stands are individually rated, they are to be used in a matched pair to support one end of the vehicle only. Stands are not to be used to CTJTRJ22T 6/2/17...
- Page 4 2. Unit will not sustain rated load or feels “spongy” under rated load. Purge air from hydraulic system as above. 3. Unit will not lift to full height. Purge air from hydraulic system as above. 4. Unit still does not operate. Contact Cornwell Customer Service. CTJTRJ22T 6/2/17...
- Page 5 This warranty gives you specific legal rights, and you may also have other rights that vary by state. Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. CTJTRJ22T 6/2/17...
- Page 6 CTJTRJ22T: 22 TON AIR/HYDRAULIC TRUCK JACK ( BLUE ) PARTS RS6319415 Connecting Block Assembly BLACK ORANGE RS6319476BK Complete Handle Assembly 81 42 BLACK 45 BLACK 46 ORANGE Hose Routing RS6319477BL Bracket Assembly CTJTRJ22T 6/2/17...
- Page 7 CTJTRJ22T: 22 TON AIR/HYDRAULIC TRUCK JACK ( BLUE ) PARTS Item Part Item Part Description Qty. Description Qty. Bolt RS6319443 Connector (Angle) Bolt **RS6319444 Short Hose - Orange Bolt **RS6319445 Short Hose - Black RS6319404 **RS6319446 Hose - Orange RS6319405...
