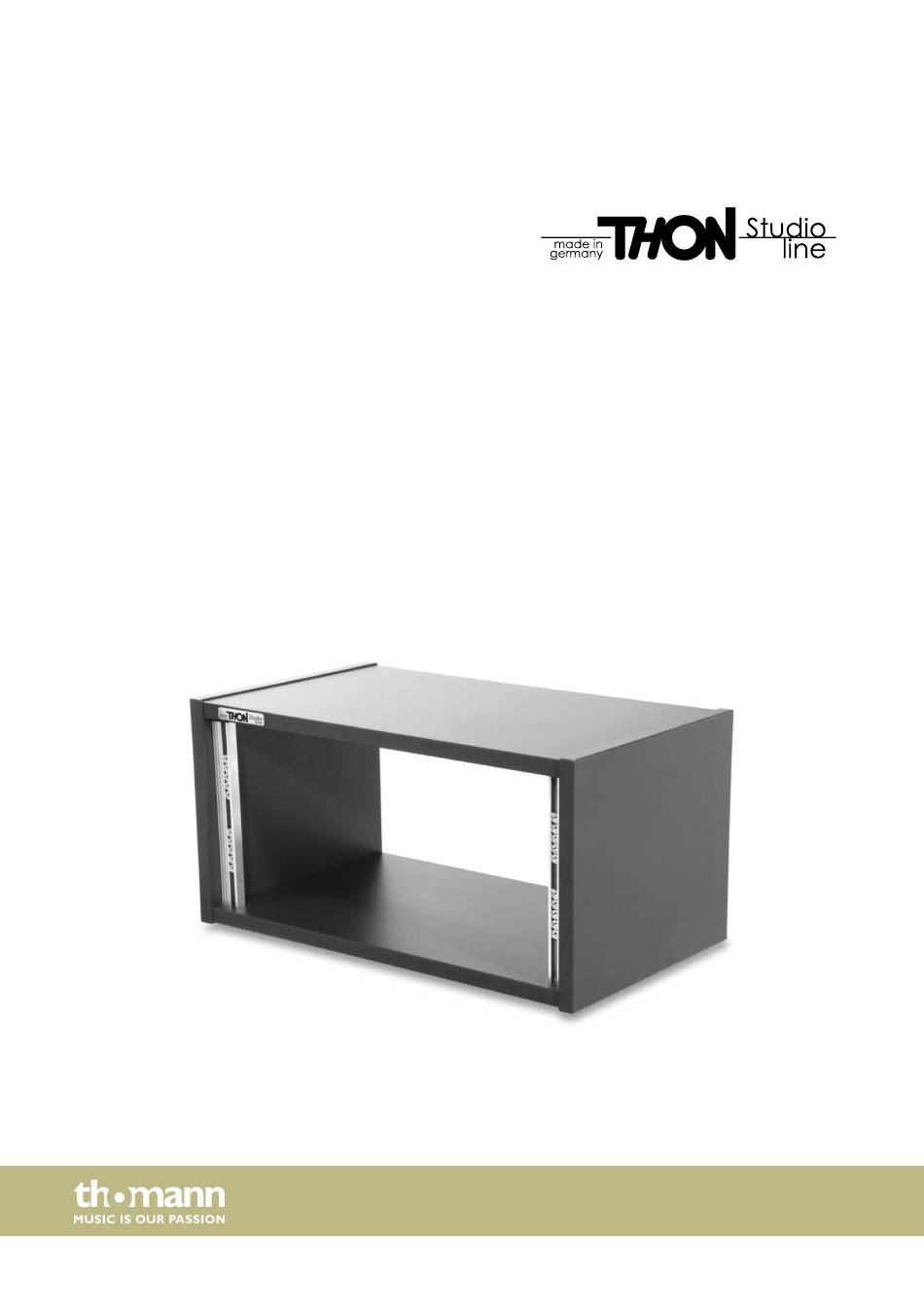

- Page 1 Thon Studio Desktop 2U, 3U, 4U, 5U, 6U, 7U, 8U studio rack assembly instructions...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.10.2021, ID: 503453, 503459, 503463, 503470, 503474, ...
-
Page 3: Table Of Contents
Table of contents Table of contents Safety instructions.......................................... 4 Scope of delivery..........................................5 Installation............................................6 Technical specifications......................................10 Protecting the environment....................................13 Thon Studio Desktop 2U, 3U, 4U, 5U, 6U, 7U, 8U... -
Page 4: Safety Instructions
Safety instructions Safety instructions DANGER! Danger for children Ensure that plastic bags, packaging, etc. are properly disposed of and are not in the reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the product. They could swallow the pieces and choke! Never let children play unattended with the product. -
Page 5: Scope Of Delivery
8 × connector bolts countersunk screws wood screws 2 × rack rails, stepless, equipped with nuts and rubber piping 4 × felt slides 1 × Allen key 1 × assembly instruction Thon Studio Desktop 2U, 3U, 4U, 5U, 6U, 7U, 8U... -
Page 6: Installation
Installation Installation Place all components on a suitable mounting surface for mounting. Use a soft padding to prevent damages to the surfaces. Overview The following figure shows an overview of the positioning of the individual components. ö ö Side panel Floor panel, cover panel Rack rail studio rack... - Page 7 After insertion, the connecting bolts sit loosely in the drill holes and only spread apart when the connector housings on the associ‐ ated component are tightened. ö Side panel Floor panel, cover panel Connector bolt Connector housing Thon Studio Desktop 2U, 3U, 4U, 5U, 6U, 7U, 8U...
- Page 8 Installation Mounting side, floor and cover panels ö ö Side panel Floor panel, cover panel Position all connector housings so that the respective connecting bolts can be completely sunk into the holes and the arrow position of the connector housings points towards the hole. First place the floor and cover panel on the respective connecting bolts of a side panel and tighten the connector housings of the floor and cover panel clockwise to lock the connection with the connecting bolts used.
- Page 9 Screw the rack rails with the help of the supplied wood screws on the inside in parallel to the front edge in the rack. We recommend a distance of approx. 1 cm from the front edge. Installation depth: 0 … 55 mm. & & Rack rail Wood screw Thon Studio Desktop 2U, 3U, 4U, 5U, 6U, 7U, 8U...
-
Page 10: Technical Specifications
Technical specifications Technical specifications Thon Studio Desktop 2U Thon Studio Desktop 2U BK, graphite Item number 503453 Thon Studio Desktop 2U BK, white Item number 503447 Thon Studio Desktop 2U oak Item number 509420 Thon Studio Desktop 2U maple Item number 524323... - Page 11 Thon Studio Desktop 6U beech Item number 524492 Rack units Installation depth max. 315 mm Dimensions (W × H × D) 540 mm × 324 mm × 320 mm Weight Approx. 6.9 kg Thon Studio Desktop 2U, 3U, 4U, 5U, 6U, 7U, 8U...
- Page 12 Technical specifications Thon Studio Desktop 7U Thon Studio Desktop 7U BK, graphite Item number 503478 Thon Studio Desktop 7U WH, white Item number 503477 Thon Studio Desktop 7U oak Item number 509429 Thon Studio Desktop 7U maple Item number 524407 Thon Studio Desktop 7U beech Item number 524406 Rack units...
-
Page 13: Protecting The Environment
Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. Please follow the notes and markings on the packaging. Thon Studio Desktop 2U, 3U, 4U, 5U, 6U, 7U, 8U... - Page 14 Notes studio rack...
- Page 16 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
