Installation

Manual Winch Installation

1.Bolt the Manual Winch, fully assembled, to a 2x8 (50x200 mm) board that will span at least 3 rafters. The
brake mechanism will protrude on one side.
For feeder lines over 350 feet (106 m), install a 2985 Cable Hook between the mounting bolt and Manual
Winch frame, as shown in Figure 8.
For loop suspension systems, install a 2985 Cable Hook between the mounting bolt and Manual Winch
frame, as shown in Figure 8.
Item Description
1 Manual Winch
2 Cable Hook
3 2" x 8" [50 x 200mm] board that
spans (3) three Rafters
4 5/16-18 x 2-1/2" Bolt, washer
and Lock Nut
2.Attach the 2"x8" (50x200 mm) board, with the Manual Winch secured, to the ceiling at the center of the
feeder line. The 2"x8" (50x200 mm) must be parallel to the line and must span at least 3 rafters. Lag bolts are
required, not supplied.
If the hopper is located at the center of the feeder line, locate the Manual Winch a few feet offset from the
center of the feeder line.
3.Extend the 3/16" (5 mm) cable the full length of the feeder line. Attach the cable temporarily to the ceiling
with nails, staples, or some type of fastener.
4.Route the cable through the winch drum relief located near the bottom of the drum. Tighten the set screw to
anchor the cable to the drum. (See Figure 9.)
Item Description
1 Winch Drum Relief with Set Screw
2 3/16" Winch Cable
3 Drum Rotation
14

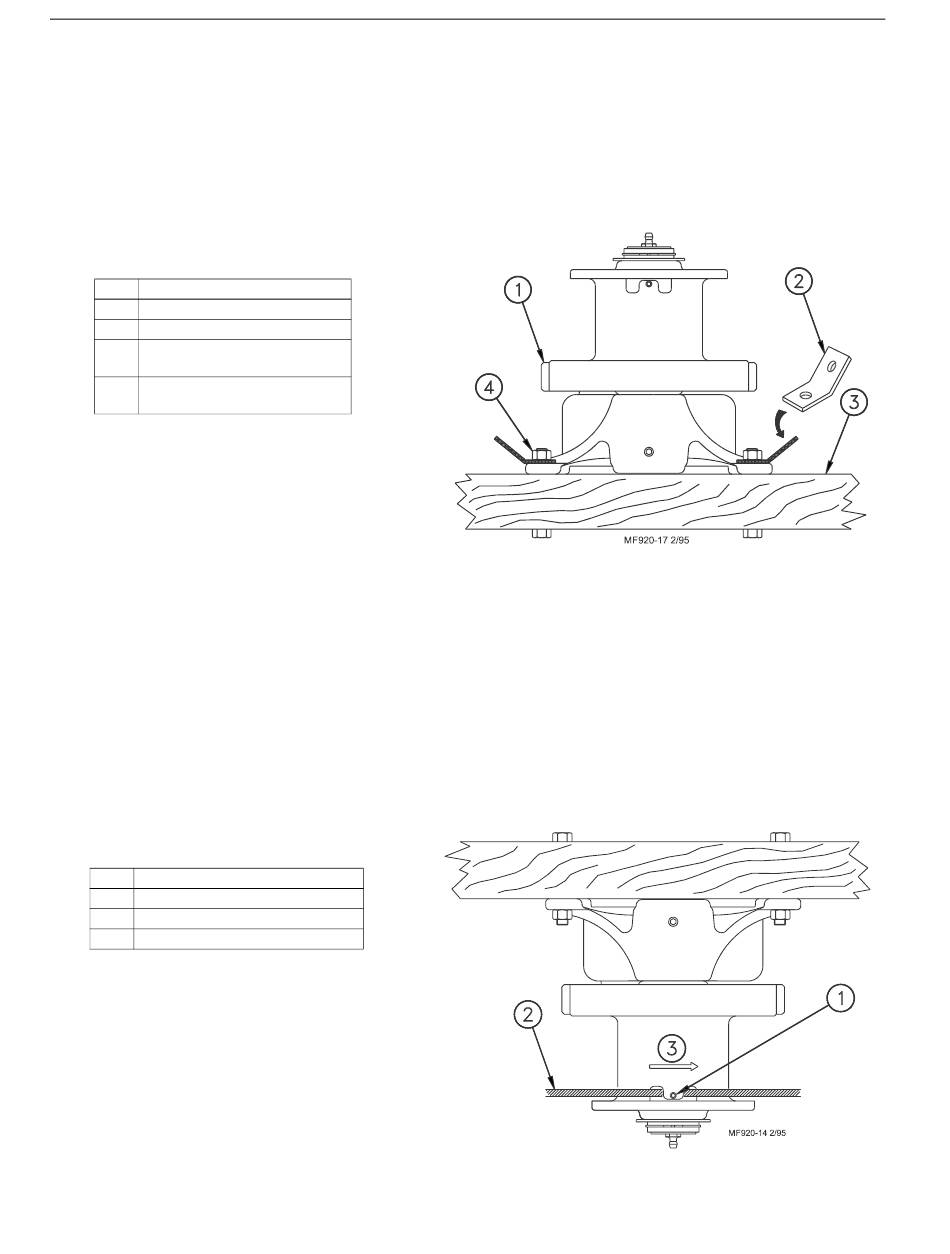

Figure 8. Winch Mounting Diagram (End View)
Figure 9. Winch Cable Installation (End View)
