- Page 1 10”(250 ) TABLE SAW MODEL NO: CTS17 PART NO: 6500752 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0921...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE product. This table saw has been designed to perform the sawing operation of ripping, cross-cutting, bevelling and mitering wood and wood products. This unit is designed for use with an 10” (250mm) carbide tipped blade. -
Page 3: Environmental Recycling Policy
GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended. -
Page 4: Safety Symbols
SAFETY SYMBOLS Read instruction Wear dust mask manual before use Wear safety glasses Wear ear defenders Indoor Use Only Danger of cut hand injury. Ensure guards are in place. The above safety symbols appear on the product. SAFETY WARNINGS CAUTION: DO NOT LET FAMILIARITY WITH YOUR TABLE SAW MAKE YOU CARELESS. - Page 5 • Work in a well-ventilated area. • Work with approved safety equipment such as dust masks that are specially designed to filter microscopic particles. • If possible use/connect to a suitable dust extractor. GENERAL 1. DO NOT expose the saw to rain. 2.
- Page 6 19. Guard against electric shock - Avoid body contact with earthed or grounded surfaces. 20. Extension cables - Before use, inspect the extension cable and replace if damaged. 21. Avoid unintentional starting. Make sure the switch is in the OFF position before connecting the machine to the power supply.
- Page 7 34. Turn off and unplug the saw before cleaning. Use a brush or compressed air to remove chips or debris — DO NOT use your hands. Eye protection should be used when using compressed air. 35. Disconnect the saw from the mains supply before changing blades or carrying out maintenance.
-
Page 8: Saw Blades
16. DO NOT use a moulding head cutter with this saw. 17. Remove the rip fence when crosscutting. NEVER use the rip fence as a cut- off gauge when crosscutting. 18. Knock out any loose knots from the workpiece before you begin to cut. 19. -
Page 9: Remaining Hazards
5. Take care that the selection of the saw blade is suitable for the material to be cut. 6. Make sure the blade is not contacting the riving knife or workpiece before the switch is turned on. 7. Wear gloves when handling saw blades and rough material. Saw blades shall be carried in a holder whenever practicable. -
Page 10: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 11: Component Overview

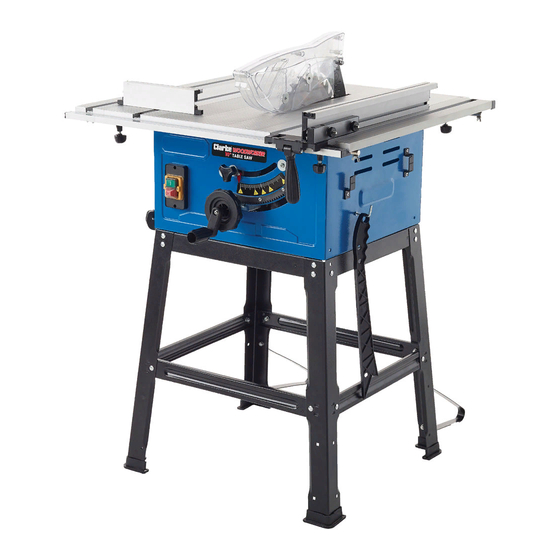

COMPONENT OVERVIEW Table extension Tilt adjusting knob Mitre square assembly On/Off switch Blade Guard Dust extract duct Blade Tilt angle scale Parallel Fence assembly Height adjusting handle Work table Stand stabilisers Fence securing handle/clamp Blade removal wrench & key Push stick Parts &... -
Page 12: Assembling The Stand
ASSEMBLY The following items should be supplied in the carton. If any parts are missing, do not use your table saw until the missing parts are obtained. Table Saw Fixings Pack Parallel Guide Fence Push Stick Mitre Guide/fence 10” TCT Blade (fitted) Blade Guard Assembly Hex key Sliding table extension x 2... - Page 13 3. Attach the stabilisers to the rear legs using the bolts, washers and nuts supplied. 4. Check that all bolts are tightened and then turn the table saw and stand over onto the feet. 5. Fit the table saw to the stand. Secure the assemblies together by bolting the stand to the base of the machine.
-
Page 14: Fitting The Blade Guard
FITTING THE BLADE GUARD 1. With the blade and riving knife fitted, fit the blade guard to the riving knife. Engage the socket in the guard with the slot in the riving knife and tighten the screw/ locknut to pinch it to the knife ensuring it can still move up and down in use. - Page 15 CONNECTING THE DUST EXTRACT This table saw is equipped with a dust extraction port. For safe operation, we recommend that a suitable dust extraction device or vacuum cleaner is connected during operation. WARNING: EXCESSIVE SAWDUST BUILD UP AROUND THE MOTOR COULD POSSIBLY IGNITE AND CAUSE DAMAGE TO THE MOTOR, TABLE SAW OR YOUR WORKSHOP.
-
Page 16: Operation
OPERATION CAUTION: BEFORE STARTING UP THE SAW ALWAYS CHECK THE FOLLOWING POINTS: 1. Is the saw blade firmly tightened and can the blade rotate freely? 2. Are all the locking levers firmly locked? 3. Is the riving knife aligned with the saw blade? 4. -
Page 17: Mitre Gauge
ADJUSTMENTS After every new adjustment, we recommend you to make a trial cut in order to check the new settings. PARALLEL FENCE The parallel fence can be mounted on either side of the table. If you change the side you will need to fit the fence the other way round. 1. -
Page 18: Cutting Tips
CUTTING TIPS RIPPING CUTS & CROSS CUTS Ripping is when you use the saw to cut along the grain of the wood. The parallel fence must always be used when making ripping cuts. 1. Press one edge of the workpiece against the parallel fence while the flat side lies on the saw table. - Page 19 When not in use, store the push stick in its holder on the side of the machine. Replace a damaged push stick immediately. MITRE CUTS 1. Slide the mitre gauge into the groove in the table. 2. Adjust the mitre gauge to the required angle.
-
Page 20: Maintenance
MAINTENANCE WARNING: REMOVE THE PLUG FROM THE MAINS POWER SUPPLY BEFORE CARRYING OUT ANY ADJUSTMENT OR MAINTENANCE. Your saw has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. - Page 21 3. Using the open spanner and hex key provided, hold the spindle to prevent the motor from turning and undo the saw blade securing nut (normal thread). 4. Remove the outer retaining disc followed by the saw blade by lifting it clear of the motor shaft and carefully withdrawing it from above.
-
Page 22: Troubleshooting
TROUBLE SHOOTING Problem Probable cause Solution Saw will not start 1. Saw not plugged in 1. Plug in the machine 2. Fuse blown 2. Replace fuse 3. Power cable damaged 3. Have cable replaced by your dealer. Does not make accurate 1. -
Page 23: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 24: Parts List
PARTS LIST No Item No Item No Item Work table assembly 31 Stop nut Stand upright Drive motor Threaded rod Flat washer Blade guard Bevel gear Spring washer Locknut S/t screws Washer Screw rod sleeve Short crossbar Tilting frame Screw,washer & nut Rubber foot Retaining ring Drive Base plate... - Page 25 100 Hex screw 110 Mounting Base USEFUL ITEMS FROM THE CLARKE CATALOGUE Refer to the Clarke website www.clarkeinternational.com for a full range of items for use with this saw. See also the following accessories; CARS1 Roller Stand Part No: 6500980...
- Page 26 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 27: Declaration Of Conformity-Eu
DECLARATION OF CONFORMITY-EU Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
