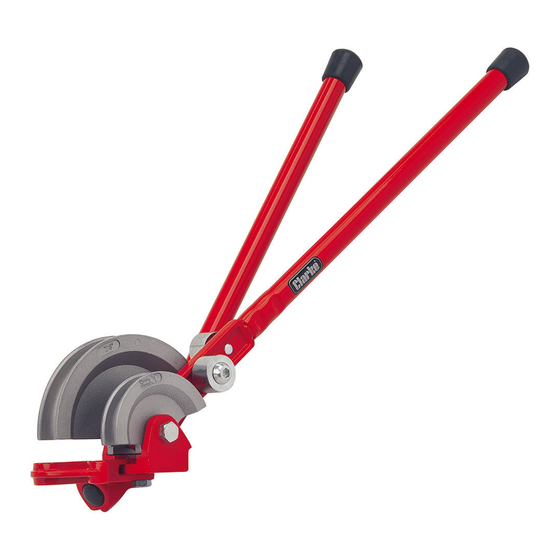

- Page 1 2-in-1 PIPE BENDER 2-in-1 PIPE BENDER MODEL NO: CHT401 PART No: 1801401 OPERATION & MAINTENANCE INSTRUCTIONS 0902...
-
Page 2: Specifications
Includes two aluminium guide bars (15 and 22mm). Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the product data plate. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS IMPORTANT Failure to follow these precautions could result in personal injury, and/or damage to property. 1. ALWAYS wear safety goggles, manufactured to the latest European Safety Standards. Everyday eyeglasses do not have impact resistant lenses, they are not safety glasses. 2. -
Page 4: Maintenance
Bring the handles together until the respective roller comes into contact with the guide, continue to apply pressure to the handles until the required bend is achieved. To produce a 180º bend, continue moving the handles together until the two ends of the pipe are parallel. - Page 5 PARTS LIST Item Part Number Description ZJCHT40101 22mm Former ZJCHT40102 15mm Guide ZJCHT40103 22mm Guide ZJCHT40104 Handle ZJCHT40105 End Cap ZJCHT40106 Pipe Guide ZJCHT40107 Body ZJCHT40108 Bolt ZJCHT40109 Bolt ZJCHT40109A Nut (Not Shown) ZJCHT40110 15mm Former ZJCHT40111 Roller ZJCHT40112 Screw ZJCHT40113 Handle...
