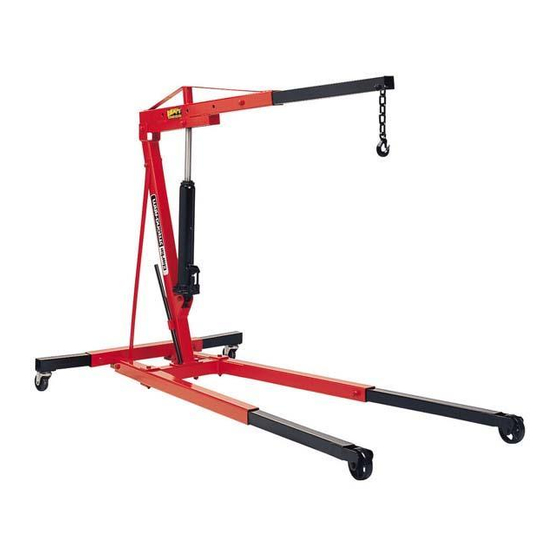

- Page 1 FOLDING CRANE MODEL NO: CFC1000LR PART NO: 7610660 ASSEMBLY & USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0418 rev 3...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Folding Crane. Before attempting to operate the product, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS Always read instructions before setting up the equipment and before use. Failure to heed these warnings may result in damage to the equipment, or serious personal injury. WORKPLACE SAFETY 1. Always inspect the crane before use to ensure it is correctly assembled and in good condition and replace any damaged or worn parts. - Page 4 Do not substitute any other components or exceed the rated capacity of the crane. 6. If the load capacity decal becomes worn or illegible, contact Clarke Parts and service department, on 0208 988 7400 for replacement. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 5 ASSEMBLY PREPARATION Using a clean not level area, unpack. check and identity all components including nuts, bolls and washers. Lay out the main components roughly as shown in parts diagram on page 11. During assembly, nuts and bolts should only be finger tightened unless otherwise specified.
- Page 6 6. Connect the support brackets (H), to their upper mountings at either side of the main support post with bolts (T). Fully tighten all nuts and bolts assembled used so far. 7. Place the Hydraulic Pump/Ram Assembly (l), (with Ram uppermost), into its mounting on the Main Support Post.
-
Page 7: Operation
OPERATION WARNING: WHEN REMOVING AN ENGINE, ENSURE THE VEHICLE IS WELL SUPPORTED AND SECURE. ALL ANCILLARY PARTS MUST BE DISCONNECTED, I.E. EXHAUST SYSTEM, SPEEDO CABLE, ELECTRICAL CABLES AND HOSES, ETC. AND ONLY LIFTING POINTS RECOMMENDED BY THE VEHICLE MANUFACTURER SHOULD BE USED. IMPORTANT: NEVER allow the legs to be shorter than the centreline of the load. - Page 8 EXTENDING THE JIB 1. Lift the jib to a horizontal position. 2. Remove the locating bolt. 3. Reposition the jib extension to the desired length. • The hole near the end of the jib extension will match the hole in the jib according to the weight being lifted.
-
Page 9: Maintenance
2. Remove the filler plug from the side of the ram and top up the oil until it is level with the hole. Replace the filler plug. NOTE: Top up using Clarke hydraulic oil (part number 3050830). • Do not mix different types of oil. -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 11 FRAME PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 12: Frame Parts List
FRAME PARTS LIST TEM NO PART NO DESCRIPTION HT100001 Rear Support HT100002 Front Leg HT100003 Ext Support HT100004 Rear Ext Leg HT100005 Front Ext Leg HT100006 Main Support Post HT100007 Support Bracket HT100008 HT100009 Jib Extension HT100010 Hook & Chain HT100011 Ram Assembly HT100012... - Page 13 RAM PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 14 Sealing Ring Screw GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
