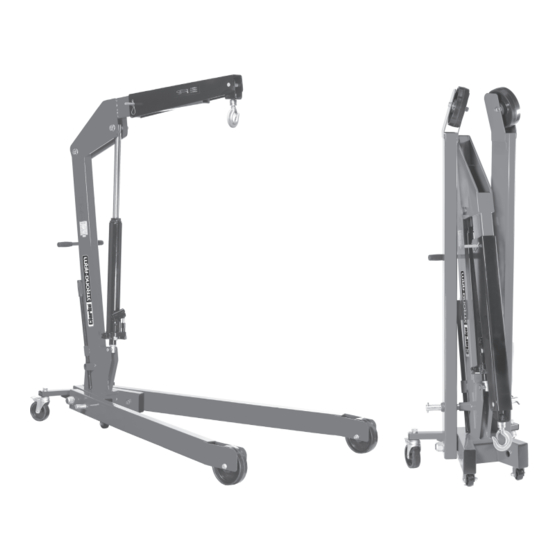

- Page 1 2 TONNE FOLDING CRANE MODEL No: CFC2000 Part No: 7611020 ASSEMBLY INSTRUCTIONS LS0910...
-
Page 2: Specification
INTRODUCTION Thank you for purchasing this CLARKE folding crane. Before using the crane, please read this instruction manual thoroughly and carefully follow all directions given. This is for your own safety and for that of others around you, and will also help you achieve long and trouble free service from your crane. -
Page 3: Safety Information
2. Always inspect the crane before use to ensure it is correctly assembled and in good condition, and replace any damaged or worn parts. 3. When replacing parts, use only those supplied by Clarke International. Refer to Parts List on pages 8-9. -
Page 4: Before Use
BEFORE USE 1. Remove the leg securing pin from one of the legs as shown. • You may need to rotate the leg securing pin to align the locking pin with the notch at the top of the boss. 2. Lower the leg carefully to the floor. 3. -
Page 5: Operation
OPERATION RAISING THE JIB IMPORTANT: Make sure that the hook is directly above the point of lift, which in turn is directly above the centre of gravity of the load. 1. Use the end of the pump handle (24) to close the valve by turning it fully clockwise. - Page 6 STORAGE ALWAYS get adult assistance when folding the crane into its storage configuration. TO STORE THE CRANE. 1. With an assistant supporting the crane, pull out the lock pin (9), you may need to tilt the crane back slightly to do this correctly. •...
-
Page 7: Maintenance
GENERAL 1. Do not attempt to adjust or tamper with the ram assembly, there are no serviceable parts. Contact the Clarke service department for any repairs. BEFORE USE 1. Always visually inspect the crane before use, to ensure that all parts are correctly located and secure. -
Page 8: Exploded Diagram
EXPLODED DIAGRAM... -
Page 9: Parts List
SPARE PARTS AND SERVICING Please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX 020 8558 3622 or e-mail as follows: PARTS: Parts@clarkeinternational.com... -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY... - Page 11 NOTES...
