Summary of Contents for Clarke CFC500F

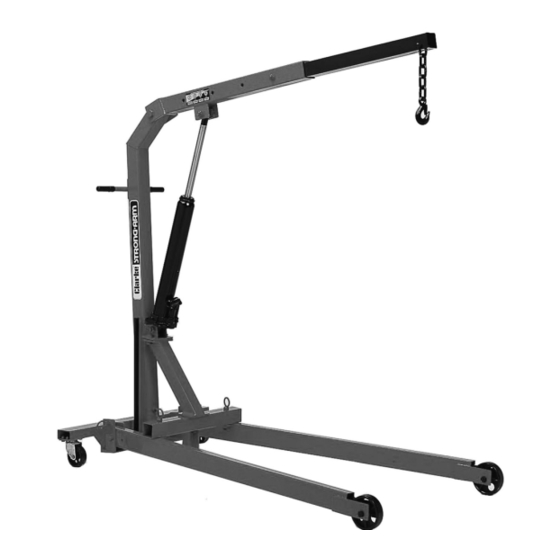

- Page 1 1/2 TON CRANE MODEL NO: CFC500F PART NO: 7610610 OPERATING & MAINTENANCE INSTRUCTIONS GC12/13...
-
Page 2: Specification
88.5 Please note that the details and specifications contained herein are correct at the time of going to print. However Clarke International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 3: General Safety Rules
(as marked on the jib). IMPORTANT: If the load capacity label becomes worn or illegible, contact Clarke Parts and service department, on 0208 988 7400 for a replacement. 5. Only use chains, slings, hooks etc. with a rated capacity equal to, or greater than that of the load. - Page 4 ASSEMBLY Using a clean, level area, unpack, check and identify all the components including nuts, bolts and washers and lay out the main components in relation to the parts diagram on page 10. During assembly, nuts and bolts should only be finger tightened prior to final tightening upon completion.
-
Page 5: Operation
10. Fit the chain and hook assembly to the end of the boom extension by sliding the end chain link into the slot provided and threading the bolt (1) through the locating hole and chain link. 11. Fit the handle assembly to the main support post using four bolts item 12. Screw the eye bolts (2), firmly into place in their captive nuts at each side of the rear support to prevent loss. -
Page 6: Maintenance
2. A slight dampness on the ram is normal, but where leakage is apparent, the ram seals must be renewed. Consult the Clarke service department. 3. Check the hydraulic ram operation and check the hydraulic oil level. (see below). -
Page 7: Hydraulic Oil
2. Top up the oil until it is level with the hole and replace the plug. NOTE: Top up using Clarke hydraulic oil (part number 3050830). • Do not mix different types of oil. - Page 8 HYDRAULIC RAM PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 9: Frame Parts
FRAME PARTS Description Part No No Description Part No Rear Support HT500101 Washer M14 3040572 Front Leg HT500102 Lock washer M14 3040599 Ext Support HT500103 Nut M14 3040616 Main Support Post HT500104 Bolt M14 x 90 3040557 Support Bracket HT500105 Washer M14 3040576 Boom... - Page 10 FRAME PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
