Page 1

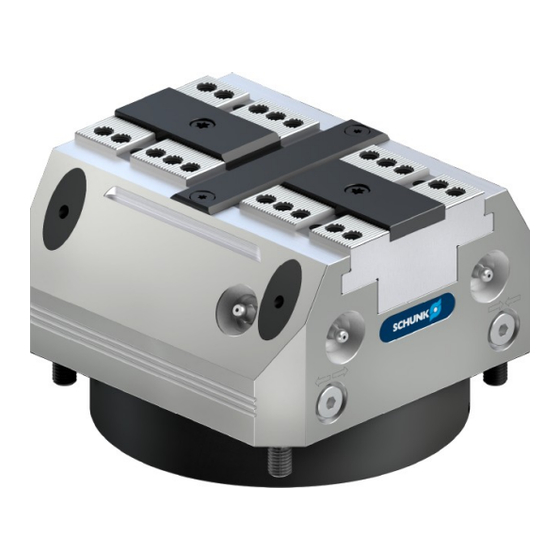

Translation of Original Operating Manual TANDEM Clamping Force Block KSF3, KSF3-LH, KSF3-F Assembly and Operating Manual...
Page 2
Imprint Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Technical changes: We reserve the right to make alterations for the purpose of technical improvement. Document number: 1467140 Version: 02.00 | 04/01/2022 | en...
5.2.2 Dynamic pressure monitoring of the jaw end positions (variant "PM") ........................ 22 5.2.3 Air coupling in top jaw (variant "PM")............ 23 5.2.4 Pneumatic circuit diagram ................ 25 Troubleshooting ..................... 26 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 4
10 Translation of the original declaration of incorporation .......... 42 11 Appendix on Declaration of Incorporation, as per 2006/42/EC, annex II, No. 1 B ..43 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
• General terms of business * • Catalog data sheet of the purchased product * The documents marked with an asterisk (*) can be downloaded on our homepage schunk.com 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Clamping force block KSF3 or KSF3-LH plus or KSF3-F (without top jaws) ACCESSORY KIT: (for contents, see sealing kit list and parts list) } 8.1 [/ 35] 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
• Use only original spare parts or spares authorized by SCHUNK. 2.5 Use of special chuck jaws Requirements of the chuck jaws 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Due to their technical training, knowledge and experience, trained electricians are able to work on electrical systems, recognize and avoid possible dangers and know the relevant standards and regulations. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
• Eliminate any malfunction immediately. • Observe the care and maintenance instructions. • Observe the current safety, accident prevention and environmental protection regulations regarding the product's application field. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
• Do not reach into the open mechanism or movement area of the product during operation. 2.13.1 Protection during handling and assembly Incorrect handling and assembly 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
EMERGENCY STOP switches must be easily and quickly accessible. Before starting up the machine or 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Prioritize automated loading • Do not reach between the workpiece and the chuck jaw • during the clamping procedure 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 13
In case of foreseeable contact with lubricants on the product • (e.g. when lubricating or cleaning), wear protective equipment (protective gloves, protective goggles) 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 15
The min. clamping force is applied shortly before the closed position. End position spread after 100 consecutive strokes. Clamping force Jaw position Opened Closed Dependency clamping force to jaw stroke 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 16
Optional Z variant ±0.01 mm to clamping center Clamping sleeve ±0.04 mm to clamping center Fitting screw ±0.02 mm to clamping center Only with variant "PM" 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 17
8H7 x 14 10H7 x 20 29.5 34.5 59.7 92.6 139.6 69.2 82.2 98.2 Ø Q 10f7 12f7 14f7 Ø R 18.7 19.8 29.8 39.8 ØDF 97.7 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Tightening torque (Nm) KSF3-F Tightening torque (Nm) Tightening torques for mounting the cover on the body (screw quality A2-70) Size Screw size Tightening torque M (Nm) 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Cylindrical pins Ø m6(see parts lists [/ 000]) Fitting screw Ø f7 (see parts lists [/ 000]) Screw DIN EN ISO 4762 Clamping sleeve DIN EN ISO 13337 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 20
(item 84). The two cylindrical pins (item 34) are used for alignment with repeat accuracy. Do not realign the clamping force block after removing it from the machine table (e.g. after replacing the seals). 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Bottom connection for coolant drain or use for air purge Bottom connection for lubrication (one-sided supply, left) Bottom connection for lubrication (one-sided supply, right) No use 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Connection 4 → monitoring closed jaw position. The max. pressure for the monitoring functions is 2 bar. Limit volumetric flow to 10 l/min. Pressure difference between stroke end positions min. 1 bar. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
2.5 +0.1 Non-tolerated dimensions according to DIN ISO 2768mH When using top jaws type STR / STR-H / STR-S, it is essential to observe dimension E. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 24
In doing so, the transfer dimensions ØC, D, E and F must be observed. Max. pressure 2 bar. Limit volumetric flow to 10 l/min 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Dynamic pressure monitoring for jaw end position "open" (2 bar) Air coupling in top jaw 1 Air coupling in top jaw 2 Dynamic pressure monitoring jaw stroke "closed" (2 bar) 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
The monitoring piece in a base jaw is Loosen the adjustment screws and readjust the pressed too tightly against the housing monitoring piece } 7 [/ 28] 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 27
Pressure change due to clamping Adjust clamping stroke to the workpiece to >0.3 stroke too low mm/jaw Seals damaged Replace seals in cover and adapter plate } 8.1 [/ 35] 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
• After greasing, run through the complete stroke several times. • Grease to be used and lubrication intervals. } 7.3 [/ 29] Size Grease quantity (strokes per grease nipple) 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Before disassembling the product, switch off the machine and secure it against being switched on again. Then remove all compressed air lines. No residual energy may be left in the product. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 31
• Remove chuck piston (3) and base jaws (2). In the case of the PM variant, note that the monitoring elements can fall off when the base jaws are removed. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 32
• Pay attention to the mounting position of the base jaws (item 2) and the chuck piston (item 3). • Observe the tightening torques for the screws } 4 [/ 18]. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
The following components are required to check for leaks: pressure gauge, shut-off valve, supply line and quick coupling. • Check for leaks in the clamping system in the OPEN and CLOSED positions. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 34
If the clamping system is leaking, check the fittings first (e.g. with Metaflux leak detection spray). Seal any leaking screws. If the cause of the leak is not the fittings, send the product to SCHUNK for repair. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
The customer can carry out the basic cleaning themselves with this. Sealing kit * ID number Size 100 1470390 Size 100-LH 1470468 Size 160 1470397 Size 250 1470398 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 39
= for size 250 z = included in accessory kit * Individual components are specially tuned to one another and cannot be replaced by the customer. 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Assembly drawings 9.2 KSF3-F with variant "PM" Centering with fitting screws Centering with clamping sleeves Centering with cylindrical pins (Z variant) 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Person authorized to compile the technical documentation: Philipp Schräder, Address: see manufacturer's address Mengen, March 2021 p.p. Philipp Schräder; Head of Engineering Design 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Failure of the power supply Protection against mechanical hazards 1.3.1 Risk of loss of stability 1.3.2 Risk of break-up during operation 1.3.3 Risks due to falling or ejected objects 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 44
1.5.15 Risk of slipping, tripping or falling 1.5.16 Lightning Maintenance 1.6.1 Machinery maintenance 1.6.2 Access to operating positions and servicing points 1.6.3 Isolation of energy sources 1.6.4 Operator intervention 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 45
Supplementary essential health and safety requirements for machinery intended for underground work Supplementary essential health and safety requirements for machinery presenting particular hazards due to the lifting of persons 02.00 | KSF3, KSF3-LH, KSF3-F | Assembly and Operating Manual | en | 1467140...
Page 48
Translation of Original Operating Manual H.-D. SCHUNK GmbH & Co. Spanntechnik KG Lothringer Str. 23 D-88512 Mengen Tel. +49–7572-7614-0 Fax +49-7572-7614-1099 info@de.schunk.com schunk.com Folgen Sie uns I Follow us...
