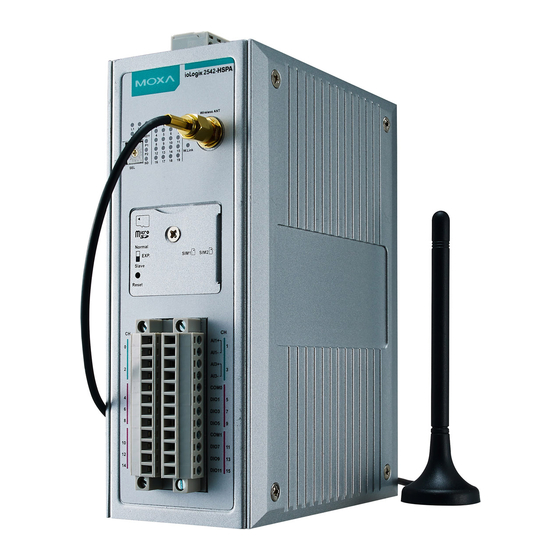

ioLogik 2500 Series

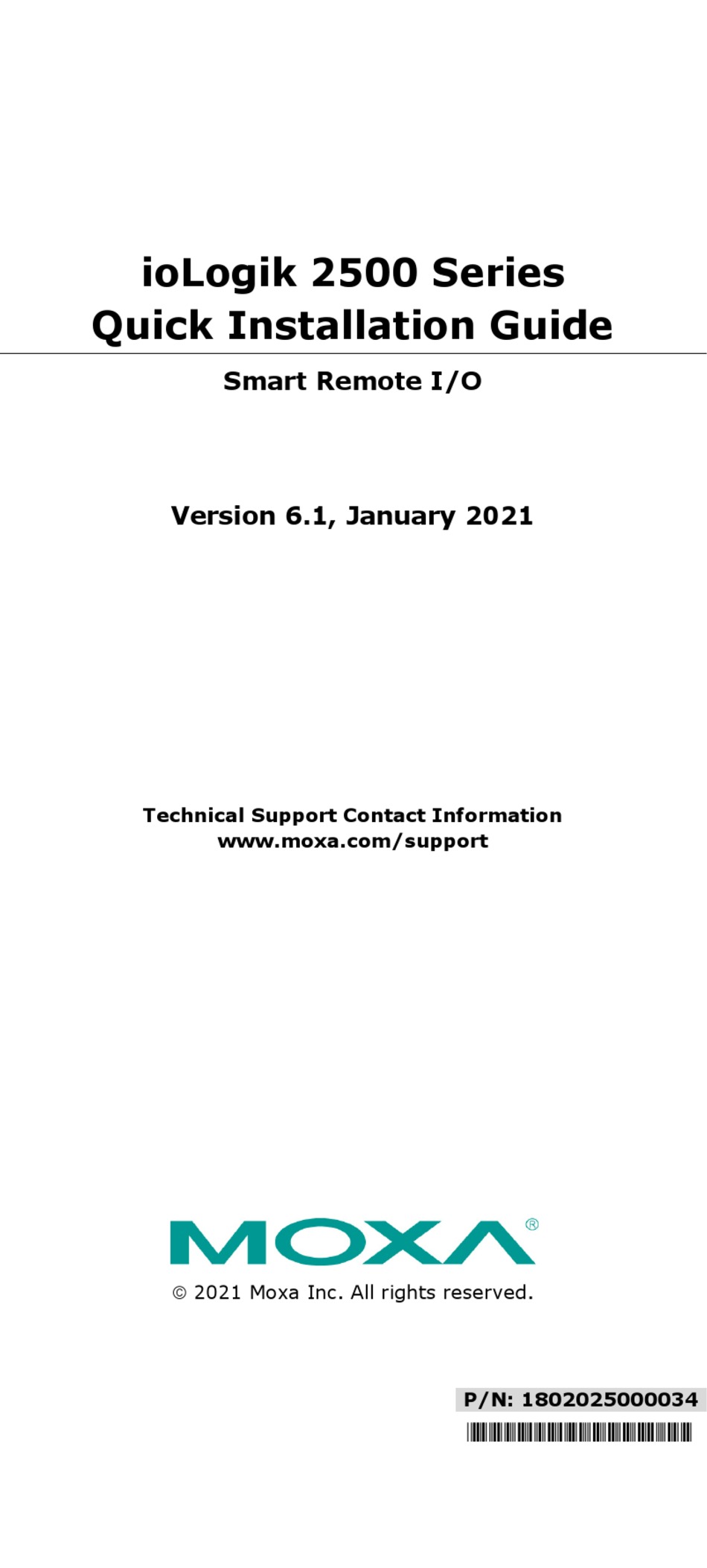

Quick Installation Guide
Smart Remote I/O
Version 6.1, January 2021
Technical Support Contact Information
www.moxa.com/support
 2021 Moxa Inc. All rights reserved.
P/N: 1802025000034
*1802025000034*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ioLogik 2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moxa Technologies ioLogik 2500 Series

  • Page 1 2500 Series Quick Installation Guide Smart Remote I/O Version 6.1, January 2021 Technical Support Contact Information www.moxa.com/support  2021 Moxa Inc. All rights reserved. P/N: 1802025000034 *1802025000034*...
  • Page 2 Package Checklist • ioLogik 2500 series device • 3-pin screw terminal block (for power input) • 2 12-pin screw terminal blocks (for I/O) • 2 8-pin RJ45-to-DB9 cables (CBL-RJ45M9-150) • 1 antenna (only for wireless modules) • Quick installation guide (printed)
  • Page 3 Physical Dimensions (unit = mm/inch) Specifications Input Current ioLogik 2512 Series: 254 mA @ 24 VDC, 529 mA @ 12 VDC, 133 mA @ 48 VDC ioLogik 2512-GPRS Series: 416 mA @ 24 VDC ioLogik 2512-HSPA Series: 352 mA @ 24 VDC, 728 mA @ 12 VDC, 187 mA @ 48 VDC ioLogik 2512-WL1 Series:...
  • Page 4 Hardware Installation I/O Wiring Digital Inputs/Outputs Analog Inputs Mounting There are two sliders on the back of the unit for DIN rail and wall mounting. Mounting on a DIN rail • Step 1: If the spring-loaded bracket is locked in place, push the recessed button to release it.
  • Page 5 Connecting the Power The ioLogik 2500 can receive power from a 12 to 48 VDC power source. Input power is applied to the positive (V+) and negative (V-) terminals on the connector. For most applications, it is desirable to ground the system by connecting the system's power supply function ground (FG) to the power terminal's ground and the...
  • Page 6 System Configuration Configuration via IOxpress Utility The configuration of the ioLogik 2500 is mainly done with the IOxpress utility. IOxpress is a search utility that helps users locate an ioLogik 2500 device on the local network. The latest version of the utility can be downloaded from Moxa's website.
  • Page 7 Step 3: Click the Software Packages link to download the latest software for the product. ATEX Information 1. Certificate number: DEMKO 15 ATEX 1603X 2. Certification string: Ex nA IIC T4 Gc 3. Standards covered: EN 60079-0:2012+A11:2013, EN 60079-15:2010 4. The equipment shall be installed in an enclosure that provides a degree of protection not less than IP54 in accordance with EN 60079-15 and accessible only by the use of a tool.
