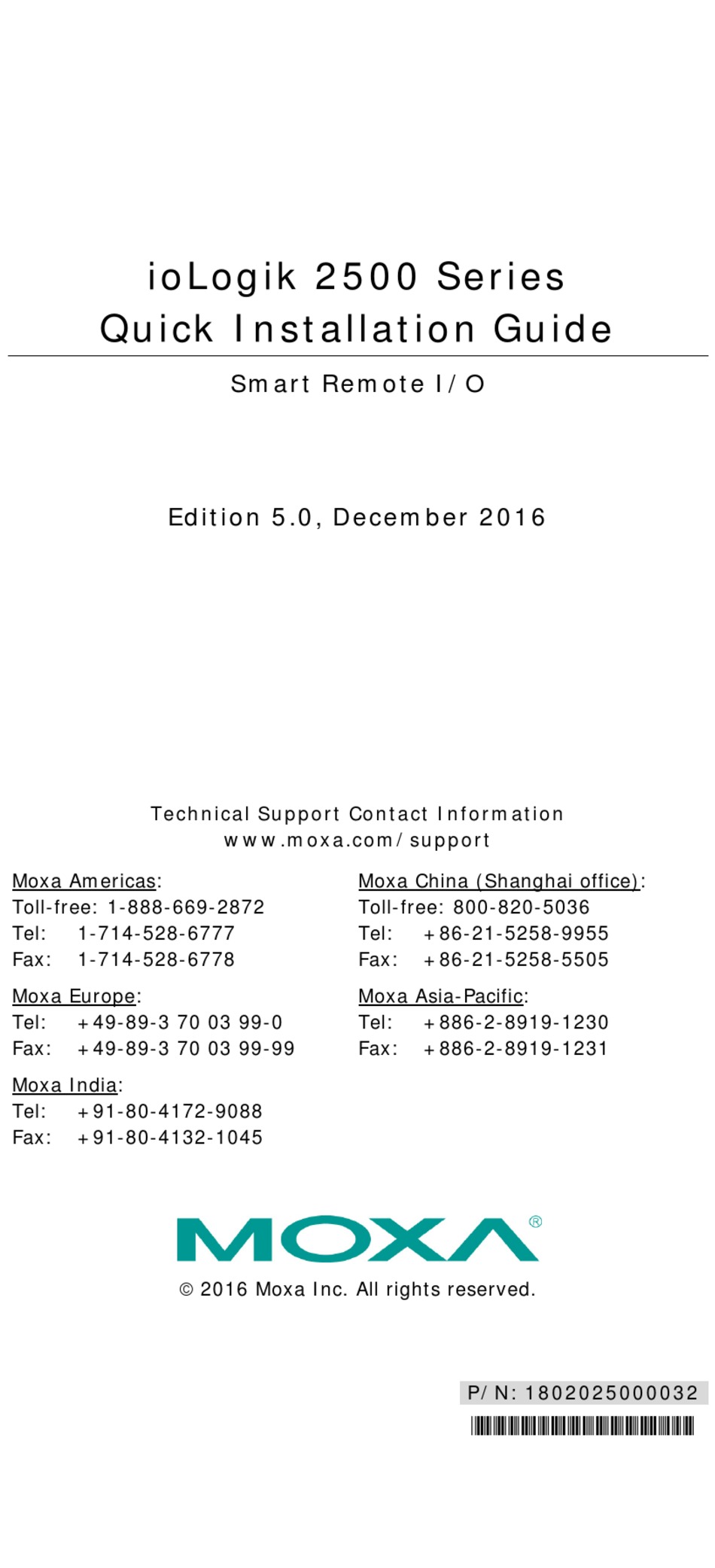

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045

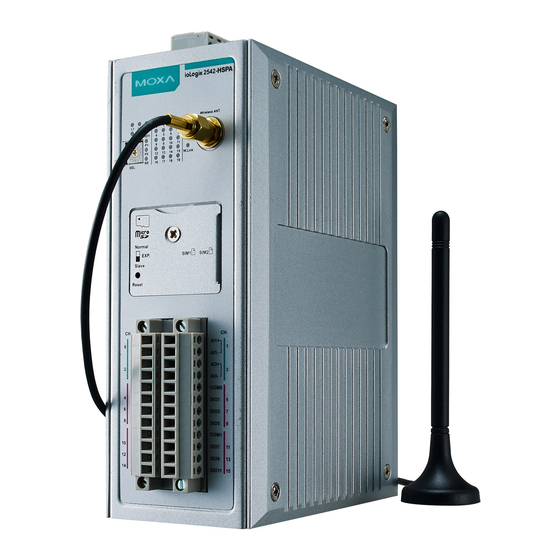

ioLogik 2500 Series
Smart Remote I/O
Edition 5.0, December 2016
Technical Support Contact Information
www.moxa.com/support
 2016 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802025000032
*1802025000032*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ioLogik 2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies ioLogik 2500 Series

Summary of Contents for Moxa Technologies ioLogik 2500 Series

  • Page 1 2500 Series Quick Installation Guide Smart Remote I/O Edition 5.0, December 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific:...

  • Page 2: Package Checklist

    Package Checklist • ioLogik 2500 series device • 3-pin screw terminal block (for power input) • 2 12-pin screw terminal blocks (for I/O) • 2 8-pin RJ45-to-DB9 cables (CBL-RJ45M9-150) • 1 antenna (only for wireless modules) • Quick installation guide (printed)

  • Page 3: Specifications

    Physical Dimensions (unit = mm/inch) Specifications Ethernet • 4 switched 10/100 Mbps RJ45 ports • 1 optimized port for faster downstream communications with daisy-chained ioLogik E1200 units Note: The optimized daisy-chain port is not supported on wind industry devices (ioLogik E1261W-T, E1261H-T, or E1263H-T) Protection 1.5 kV magnetic isolation Protocols...

  • Page 4: Digital Input

    TX Transmit Power • 802.11b: Typ. 18±1.5 dBm @ 1 to 11 Mbps • 802.11g: Typ. 18±1.5 dBm @ 6 to 24 Mbps, Typ. 17±1.5 dBm @ 36 Mbps, Typ. 16±1.5 dBm @ 48 Mbps, Typ. 16±1.5 dBm @ 54 Mbps •...

  • Page 5: Hardware Installation

    Digital Output (Sink) I/O Mode DO or Pulse Output Pulse Output Frequency 5 kHz Over-voltage Protection 45 VDC Over-temperature 175°C (min.) Shutdown Over-current Protection 1.5 A per channel @ 25°C Current Rating 500 mA per channel @ 25°C Isolation 3k VDC or 2k Vrms Analog Input (ioLogik 2542) Type Differential input...

  • Page 6: Connecting The Power

    Connecting the Power Connect a 9 to 48 VDC power line to the ioLogik 2500’s terminal block V+ terminal; connect the ground from the power supply to the V- terminal. For most applications, it is desirable to ground the system by connecting the system’s power supply common wire to the chassis or panel ground.

  • Page 7: System Configuration

    Type Color Description Green Amber Serial Port (P1/P2) Flashing Data transmitting Disconnected Green SD card inserted Flashing SD card being accessed Green Channel ON I/O Channel Status* Channel OFF or No Counter/Pulse Signal Green Cellular connection established W.Link** No signal, or No SIM card 1 LED Weak or insufficient (SMS only) Signal Status**...

  • Page 8: Atex Information

    Step 2: Type the model name in the search box or select a product from the drop down box and then click Search. Step 3: Click the Software Packages link to download the latest software for the product. ATEX Information 1.
