D. Installa on

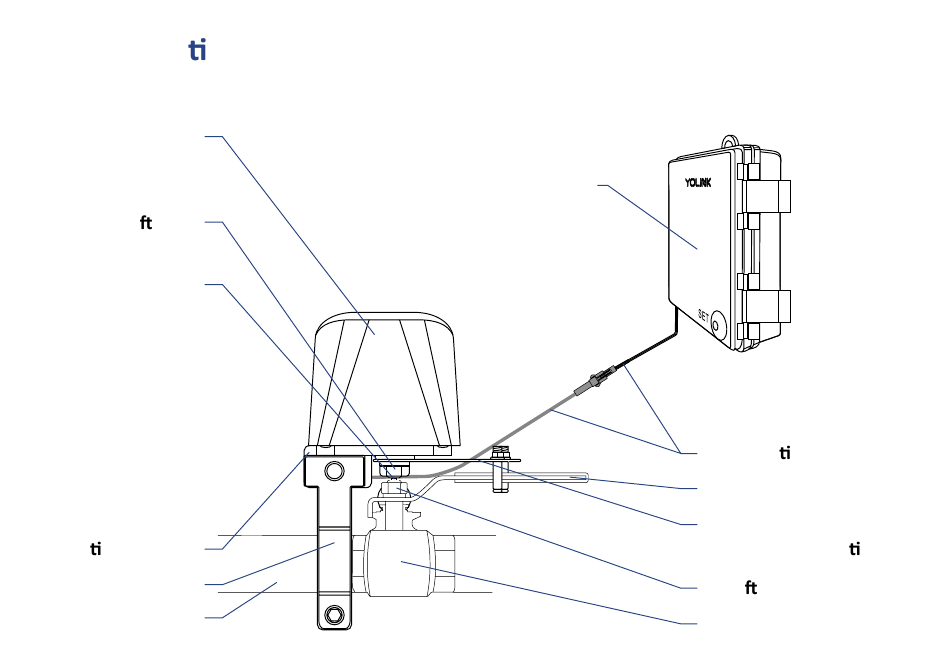

D-1. Diagram
Gas/Water Valve
Manipulator
(Ball-type)
Output Sha of
Manipulator
Clutch
Hold the ring and
keep pulling down
on the clutch, you
can rotate the
handle manually to
open or close the
valve
* The handle must rotate
at an angle of 90 degrees,
otherwise the valve
cannot be fully opened
or closed
Moun ng Ear
Brackets
Water Pipe
Diagram(A): Install with Ball-type Manipulator
Gas/Water Valve
Controller
Connec on Cable
Handle
Rocker Arm and
Handle-suppor ng Bolt
Sha of Ball Valve
Ball Valve
