GROUP CONTROL
Installation and Commissioning Guide
IMPORTANT NOTE:
Please read this manual carefully before installing the module on to the air conditioning unit.

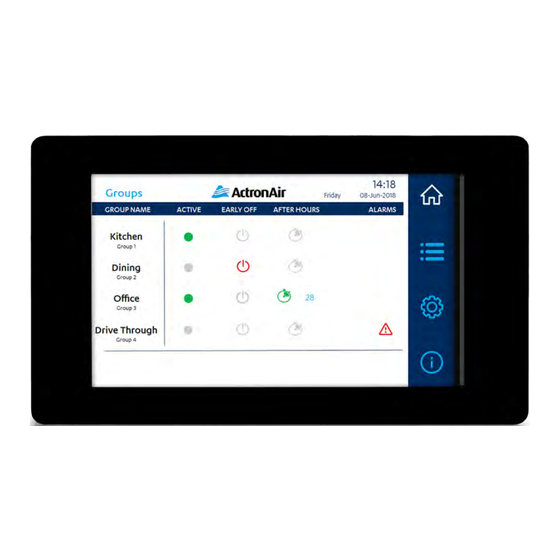

CGT1000K
The single brand solution making group control simple
and easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CGT1000K and is the answer not in the manual?

Questions and answers

Related Manuals for ActronAir CGT1000K

Summary of Contents for ActronAir CGT1000K

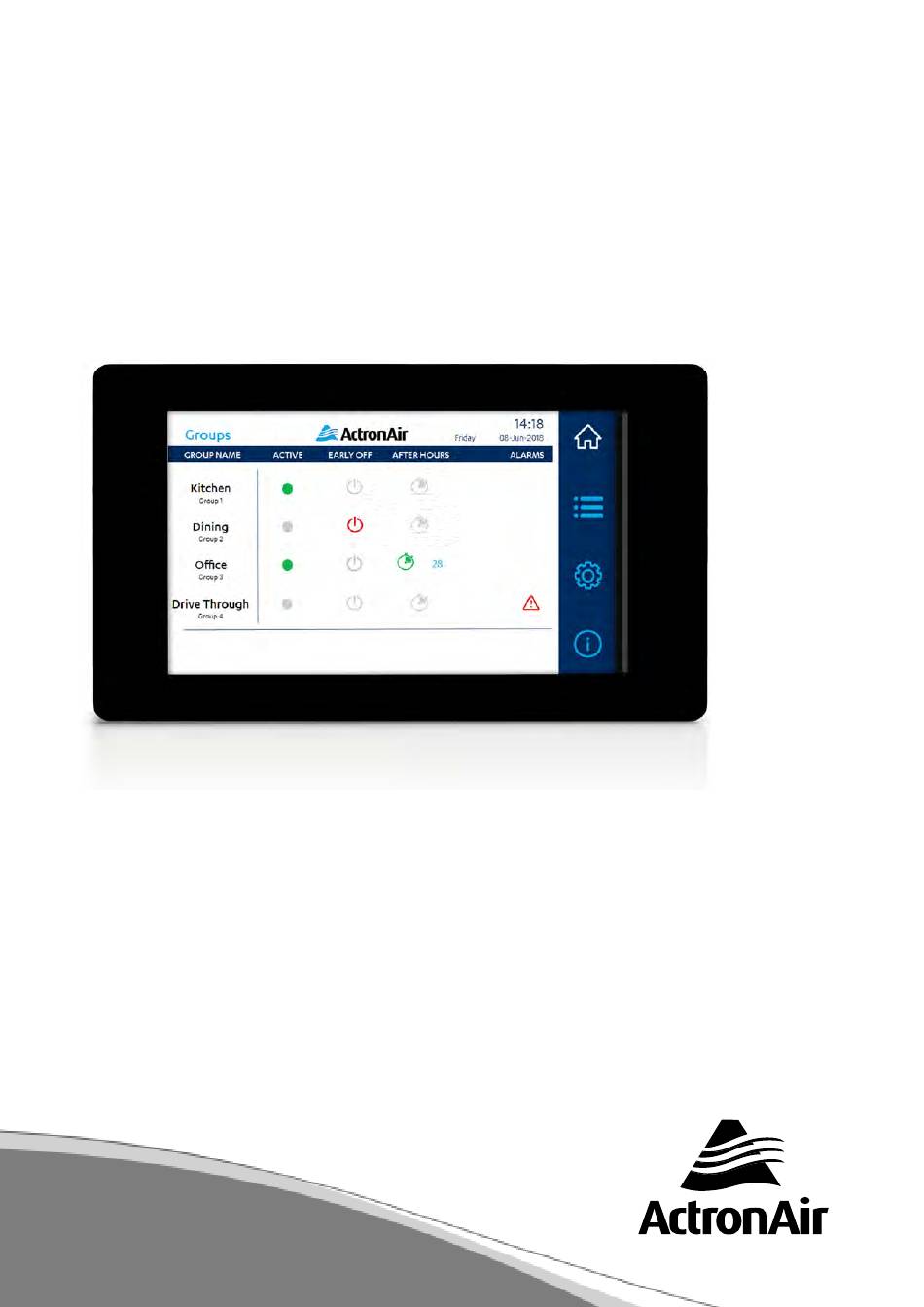

  • Page 1 GROUP CONTROL Installation and Commissioning Guide CGT1000K The single brand solution making group control simple and easy IMPORTANT NOTE: Please read this manual carefully before installing the module on to the air conditioning unit.

  • Page 2: Table Of Contents

    07.10. Assigning Address for System Configuration ..............29 ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 3: Introduction

    (with two spare 250VAC 2A fuses) • Only licensed technicians are allowed to perform the procedures described in this guide. • The ActronAir Group Control kit is NOT FOR OUTDOOR USE. Install the kit away from excessive dust, heat and Switched-Mode Power Supply moisture.

  • Page 4: Touch Screen Wall Control (Cgt100)

    ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 5: Preparing For Assembly

    Wing Clamp ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 6 Step 6. Press and close the black frame to the front of the control. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 7: Electrical And Network Connections

    ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 8: Main Controller (Cg100)

    Refer to WD0991 in Section Group Control System Server Controller for wiring of CG100. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 9: Power Supply

    The maximum length of an Ethernet connection is 100 m between consecutive devices. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 10: Functions

    • The universal inputs/outputs cannot be used as digital outputs. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 11 15:N/O ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 12 ) to go back to main screen. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 13 ) until TCP/IP SETTINGS is selected. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 14: Expansion Module Kit (Cg10K)

    ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 15: Communication Lines Available

    CIRCUIT 5. If ActronAir CO2 Sensor (P. N. CCO2-S) is to be used, then set the DIP switch to 0-10VDC instead of the usual and installation. Image below depicts the DIP switches for the module indicates the DIP switch is ON. The CGT100...

  • Page 16: Wiring Diagram

    Wall Control or Remote Control (as applicable). ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 17 3. No Fault Output Available on unit. 3. Wiring Diagram is also applicable for Split Fan Coil version. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. 9590-3014 ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 18 3. No Fault Output Available on unit. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 19 CAY700T / ELY700T ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 20: Classic Series 1 (Sre/Sra/Sca) / Package System (Pca/Pcg)

    08.03. Classic Series 2 (CRA) ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 21: Advance (R-410A) And Split System Que (Crq)

    0-10V ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 22: Add On Air Conditioning (Src)

    08.07. Add on Air Conditioning (CCA) ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 23: Split System (On/Off Only)

    08.09. Split System (SRA260C) ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 24: Standard Split (Sca)/Package System (Pca/Pcg)

    TEMP ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 25: Vcc (R-32 Series) Inverter Package Ducted Units (Prv)

    08.13. Variable Capacity Split (CRV720-960) ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 26: Variable Capacity Split (Crv/Pkv720-960) One Unit Connected To One Gc

    08.14. Variable Capacity Split (CRV/PKV720-960) One Unit Connected to One GC ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 27: Tri-Cap System (Cay/Pky)

    08.17. Hercules System (PKV) ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 28: Group Control System Power And Rs485 Com

    08.19. Group Control System Server Controller ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 29: Configuration Unit Setup For Cgt1000

    Scroll down to screen Ge3 and setup as below: ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 30: Hercules (Pkv)

    Economy ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 31: Configuration And Setup Of Touch Screen Wall Control

    I/O components ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 32: Troubleshooting

    Step 4. Check the unit is running in cooling. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.

  • Page 33: Start-Up And Commissioning Table (Sct)

    ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 34 TERM ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice.
  • Page 35 No.: AU06394 ©Copyright 2018 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of its products, therefore specifications are subject to change without notice. 9590-3014...
