WALL CONTROLLER
Operation Manual
Model Numbers
LM7-2W (White)
LM7-2G (Grey)
LM24-2W (White)
LM24-2G (Grey)
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.

Advertisement

Table of Contents
loading

Related Manuals for ActronAir LM7-2W

Summary of Contents for ActronAir LM7-2W

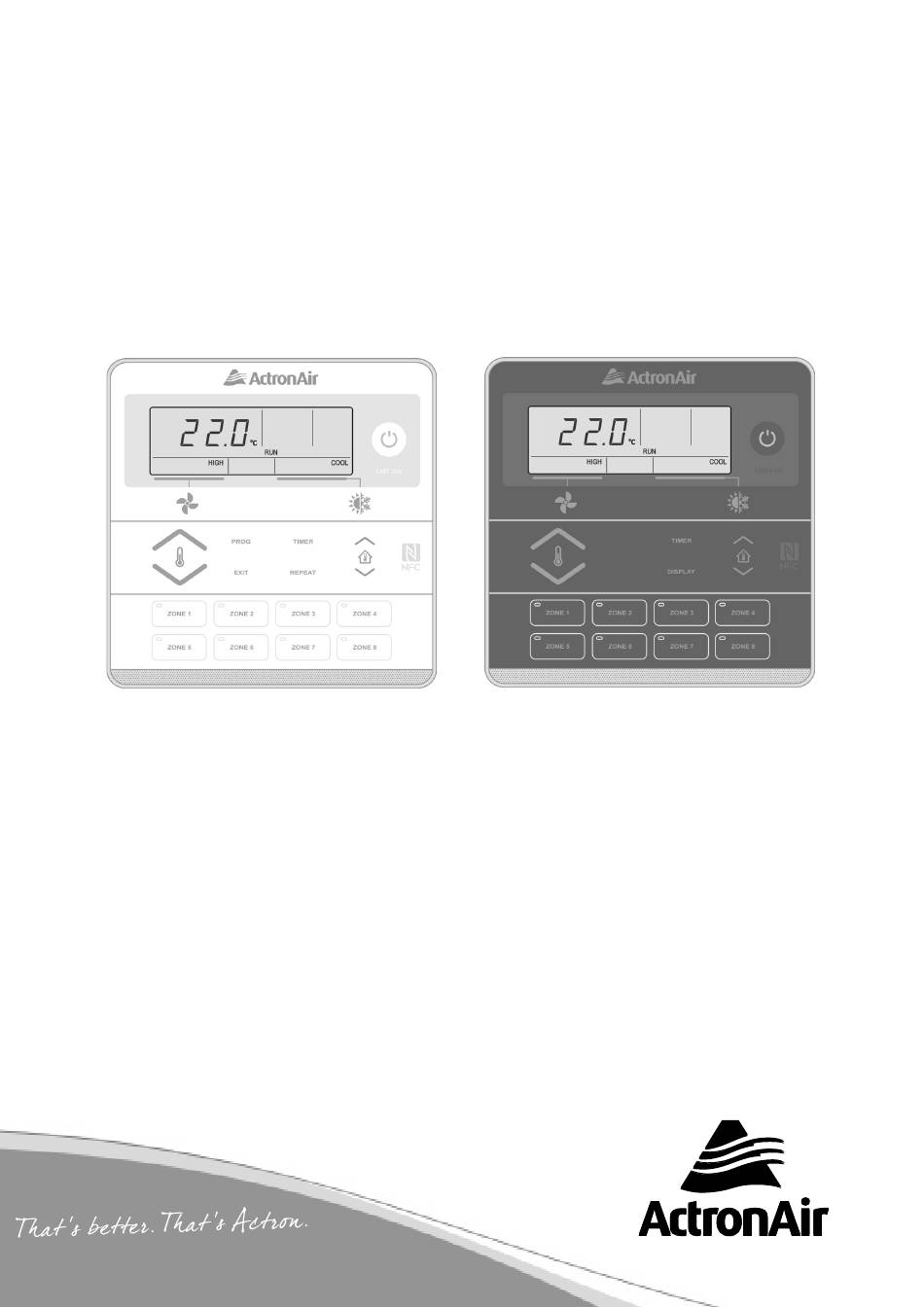

  • Page 1 WALL CONTROLLER Operation Manual Model Numbers LM7-2W (White) LM7-2G (Grey) LM24-2W (White) LM24-2G (Grey) IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.

  • Page 2: Table Of Contents

    Operation Manual LM7/24-2 Wall Controller Table of Contents 01. General Informations ..................3 02. Waste Electrical and Electronic Equipment Disposal Guidelines ...... 4 03. Maintenance ....................4 04. Safety Precautions ................... 4 05. Operational Precautions ...................5 06. System Information ..................5 07. Features ......................6 08.

  • Page 3: General Informations

    100% functional product testing. However, ActronAir cannot guarantee that all the aspects of the product and the software included with the product respond to the requirements of final application, despite the product being developed according to state of the art technology. The customer, both end user/specifier and installer, assume all liability and risks relating to the configuration of the product in order to reach the expected results in relation to the specific design and system installation.

  • Page 4: Waste Electrical And Electronic Equipment Disposal Guidelines

    7. WH&S rules and regulations must be observed and will take precedence during installation process. 8. Only use this control interface with an ActronAir air conditioner as described in this operating manual. Page 4 Operation Manual LM7-2 / LM24-2 Wall Controller...

  • Page 5: Operational Precautions

    Operation Manual LM7/24-2 Wall Controller 05. Operational Precautions ACCESS PANELS AND GUARDS: NEVER remove any access panels or guards as this could cause injury from electric shock and burns from extremely hot components. Never allow any bodily parts such as fingers or objects to protrude through the fan guards or any other opening as they could cause personal injury and damage the air conditioner.

  • Page 6: Features

    Operation Manual LM7/24-2 Wall Controller 07. Features Auto-Restart After Power Failure Should a power failure occur whilst the air conditioner is running, the wall controller will restart the air conditioner in the same mode when the power is restored, if this option is selected. Dual Wall Control Operation (Optional) Up to two wall controllers can be installed on one system.

  • Page 7: Basic Operation

    Operation Manual LM7/24-2 Wall Controller 08. Basic operation 08.01. Wall Controller Functions LM7-2 and LM24-2 have the same Buttons and functions, except for items 2 , 6 and 20 which are not available to LM24-2. LM7-2 LM24-2 LCD Display Zone 5 Button with On/Off Indicator Displays the setting and operation conditions Zone 6 Button with On/Off Indicator (See next page for details).
  • Page 8 LM7-2 Display LM24-2 Display NOTE Wall Controllers LM7-2 and LM24-2 are available in 2 colours. • LM7-2W (White) and LM7-2G (Grey) • LM24-2G (White) and LM24-2G (Grey) Page 8 Operation Manual LM7-2 / LM24-2 Wall Controller Document No. 0525-079 Ver. 1 190821...
  • Page 9 Operation Manual LM7/24-2 Wall Controller Medium Speed Fan Indicator Day Indicator (LM7-2 only) Display the day of the week when the time High Speed Fan Indicator is shown and which day is selected for programming. Set Indicator Illuminates during time and time clock Time Indicator setting adjustments.
  • Page 10 Operation Manual LM7/24-2 Wall Controller 08.02. LCD Backlight Functions LM7-2 / LM24-2 08.02.01. LCD Backlight Level Adjustments Press and hold the REPEAT (LM7-2) or the DISPLAY (LM24-2) Button. Press the Buttons to adjust the backlight level as follow: • To brighten the backlight, press the Button.
  • Page 11 Operation Manual LM7/24-2 Wall Controller 08.03. Cooling Operation (LM7-2) 1. Press the Button. Button until COOL appears on the display. 2. Press the 3. Set the desired temperature by pressing either the Buttons. • Maximum temperature setting 30. • Minimum temperature setting 16. •...
  • Page 12 Operation Manual LM7/24-2 Wall Controller 08.05. Auto Operation (LM7-2) NOTE Automatically changes between heating and cooling mode. 1. Press the Button. 2. Press the Button until AUTO appears on the display. 3. Set the desired temperature by pressing either the Buttons.
  • Page 13 Operation Manual LM7/24-2 Wall Controller 08.07. ESP Fan Feature Available for ESP Plus and ESP Ultima Models CIRCULATION OPERATION Fan Speed Cycle: HIGH = High air circulation. MED = Normal air circulation. LOW = Low air circulation. ESP = Variable air circulation, varying fan speed will be determined by the controller automatically. This will depend on number of outlets or zones open in an installation.
  • Page 14 Operation Manual LM7/24-2 Wall Controller 08.08. Timer Operation (LM7-2) 08.08.01. OFF Timer Function NOTE The system’s status must be On to set an OFF timer. 1. Press the TIMER Button to enter the timer menu. 2. Press the Buttons to select the desired time for the system to remain operating before turning Off.

  • Page 15: Program Menu (Lm7-2)

    Operation Manual LM7/24-2 Wall Controller 2. Press the Buttons to select the desired time for the system to remain operating before turning On. The maximum adjustable timer hours are 24 with 0.5 hour (30 minute) adjustable increments. 3. To cancel the TIMER, press the Button.
  • Page 16 Operation Manual LM7/24-2 Wall Controller 09.02.01. Example of Timeclock Operation 6:00am 6:00am 6:00am 6:00am 6:00am 7:00am 8:00am TIME EVENT 1 OFF TIME 10:00am 10:00am 10:00am 10:00am 10:00am 9:00am 11:00am 4:00pm 4:00pm 4:00pm 4:00pm 1:00pm -:-- -:-- TIME EVENT 2 OFF TIME 10:00pm 10:00pm 10:00pm 10:00pm...
  • Page 17 Operation Manual LM7/24-2 Wall Controller De-activating 1. Press the PROG Button twice. 2. Press the Button until OFF is flashing. 3. Press the EXIT Button. 4. The TIME CLOCK indicator will be turned Off, indicating that the Time clock has been deactivated. 09.05.

  • Page 18: Zone Controller Functions

    Operation Manual LM7/24-2 Wall Controller Re-activating an Individual Event Repeat steps 1 and 2 as above. Press the Button until the time re-appears. 09.07. Repeating a Day’s Events and Times This feature allows you to automatically repeat the previous days, events, and times, into the succeeding days. Proceed to the day you wish to copy the programmed events and times.

  • Page 19: Dual Wall Controller Operation

    Operation Manual LM7/24-2 Wall Controller 11. Dual Wall Controller Operation MIMIC Control • The air conditioner can be operated from either wall controller. • Information displayed on the two wall controllers is identical. Example 1 Using wall controller one, the cooling operation is started, both wall controllers will now show the system is in cooling mode.

  • Page 20: Setting The Upper And Lower Temperature Limits

    Operation Manual LM7/24-2 Wall Controller 12. Setting The Upper And Lower Temperature Limits NOTES The unit must be turned off before operating this procedure. You cannot adjust the upper limit below or the lower limit above your current set-temperature. This feature allows you to set the upper and lower temperature limits on your wall control. This can be used in a variety of ways.

  • Page 21: Operating Tips

    Operation Manual LM7/24-2 Wall Controller 13. Operating Tips 13.01. During Summer NOTE Always allow the necessary amount of fresh air into rooms. 1. Always test run your air conditioner a few weeks before the start of summer and make sure it’s cooling sufficiently.

  • Page 22: Cleaning Maintenance

    Operation Manual LM7/24-2 Wall Controller On days when extreme conditions of High or Low temperatures prevail and the home is unoccupied, it can be practical to leave the air conditioner ON. However to reduce energy costs, set the temperature up 2 C to 4 C (Cool Mode) for summer and down 2...

  • Page 23: Troubleshooting

    Operation Manual LM7/24-2 Wall Controller 15. Troubleshooting Condition Causes or Check Points The system does not start. • Check that 5 minutes has passed from turn on time, as the system has in built safety timers. • Check thermostat settings are correct. •...

  • Page 24: Re-Setting The Wall Control

    App. 4. Once the tag has successfully scanned the image 5. A pop-up window will appear to redirect you to below will appear. https://www.actronair.com.au/nfc Page 24 Operation Manual LM7-2 / LM24-2 Wall Controller Document No. 0525-079 Ver. 1 190821...
  • Page 25 NFC. 4. Once successfully scanned, a pop-up window will appear to redirect you to external website. https://www.actronair.com.au/nfc 5. List of Controller Models will appear on the screen of your mobile device. Select the model number of your controller to view the operation manual.
  • Page 26 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
  • Page 27 THIS PAGE WAS INTENTIONALLY LEFT BLANK...
  • Page 28 ©Copyright 2019 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of it’s products, therefore specifications are subject to change without notice. Document: 0525-079 Ver. 1 Issue Date: 08/2019...
