ActronAir LC7 Operation Manual

ActronAir LC7 Operation Manual

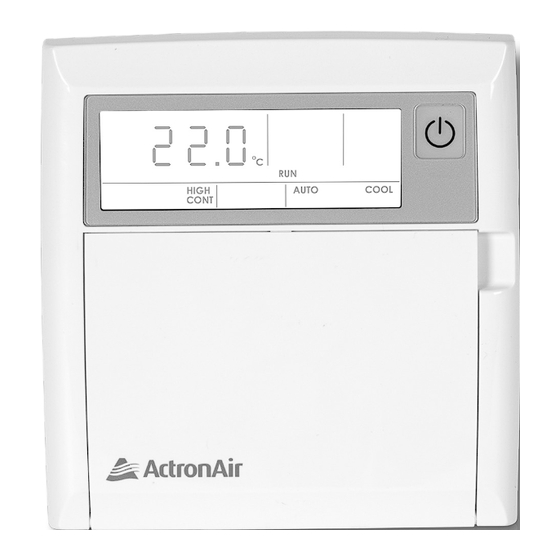

Wall controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

WALL CONTROLLER
Operation Manual
Model Numbers
LC7
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit.

Advertisement

Table of Contents
loading

Related Manuals for ActronAir LC7

Summary of Contents for ActronAir LC7

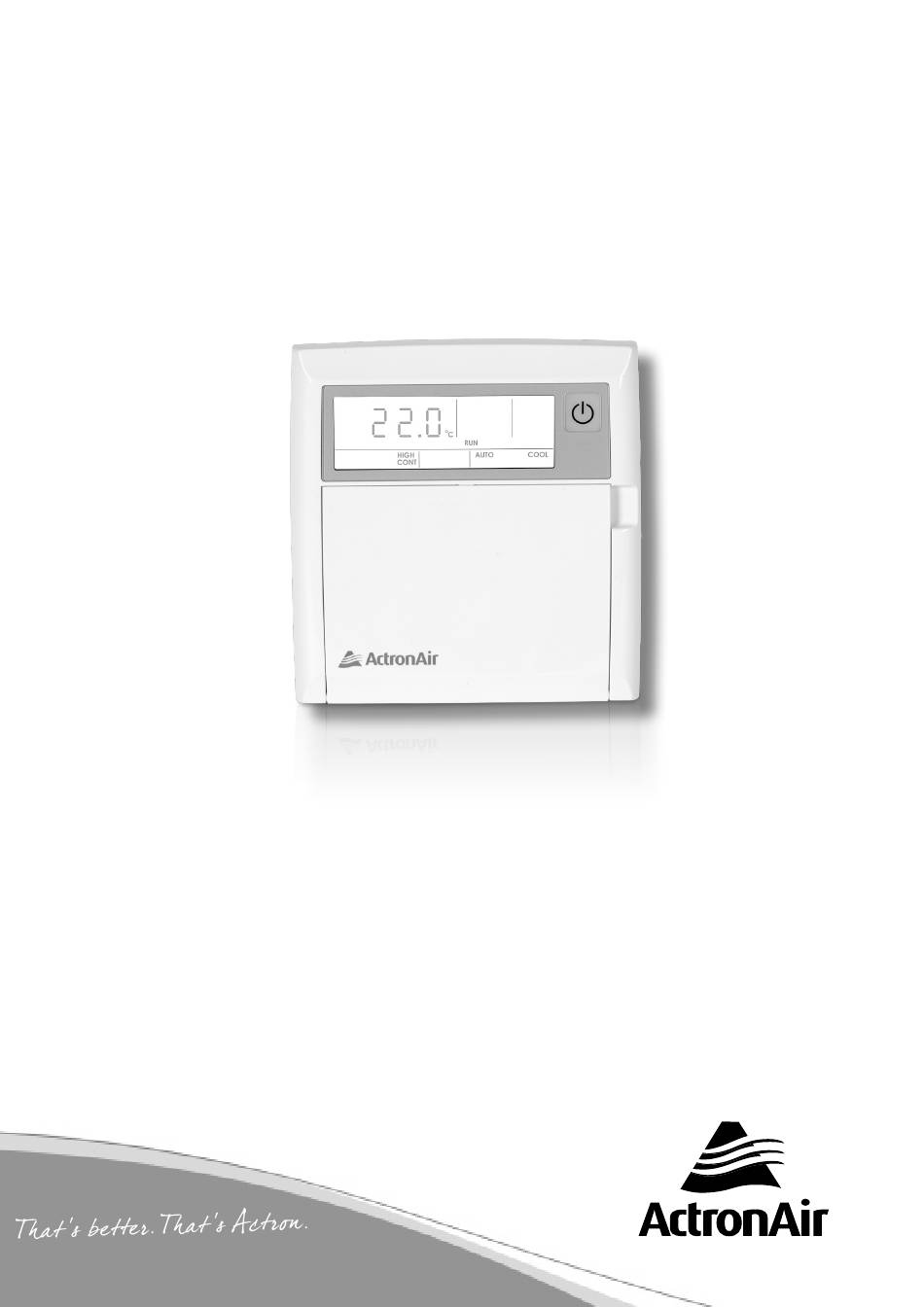

  • Page 1 WALL CONTROLLER Operation Manual Model Numbers IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit.

  • Page 2: Table Of Contents

    Operation Manual LC7 Wall Controller Table of Contents 01. General Information ..............3 02. Waste Electrical and Electronic Equipment Disposal Guideline ... 4 03. Maintenance ................4 04. Safety Precaution ............... 4 05. Operational Precaution .............. 5 06. System Information..............5 07.

  • Page 3: General Information

    100% functional product testing. However, ActronAir cannot guarantee that all the aspects of the product and the software included with the product respond to the requirements of final application, despite the product being developed according to state of the art technology. The customer, both end user/specifier and installer, assume all liability and risks relating to the configuration of the product in order to reach the expected results in relation to the specific design and system installation.

  • Page 4: Waste Electrical And Electronic Equipment Disposal Guideline

    WH&S rules and regulations must be observed and will take precedence during installation process. Only use this control interface with an ActronAir air conditioner as described in this operating manual. Page 4...

  • Page 5: Operational Precaution

    Operation Manual LC7 Wall Controller 05. Operational Precaution ACCESS PANELS AND GUARDS: NEVER remove any access panels or guards as this could cause injury from electric shock and burns from extremely hot components. Never allow any bodily parts such as fingers or objects to protrude through the fan guards or any other opening as they could cause personal injury and damage the air conditioner.

  • Page 6: Features

    Operation Manual LC7 Wall Controller 07. Features Auto-Restart After Power Failure Should a power failure occur whilst the air conditioner is running, the wall controller will restart the air conditioner in the same mode when the power is restored, if this option is selected.

  • Page 7: Wall Controller Functions

    Operation Manual LC7 Wall Controller 08. Wall Controller Functions MON TUE WED THU FRI SAT SUN TIME CLOCK PROG AFTER HOURS STAGE ON TIMER EVENT OFF SET BACK OUTSIDE INSIDE SET TEMP DEFROST FILTER HIGH ENERGY AUTO HEAT COOL AUTO...
  • Page 8 Operation Manual LC7 Wall Controller 17 18 20 21 MON TUE WED THU FRI SAT SUN TIME CLOCK PROG AFTER HOURS TIMER EVENT OFF SET BACK OUTSIDE INSIDE SET TEMP DEFROST FILTER HIGH AUTO HEAT COOL AUTO CONT AFTER DISPLAY...

  • Page 9: Turn Air Conditioner On/Off

    Operation Manual LC7 Wall Controller Set Indicator Illuminates during time and timeclock setting adjustments. Continuous Indicator Illuminates when the fan is set to continuous mode of operation. High Fan Speed Indicator Illuminates when the fan is set to high speed operation.

  • Page 10: Adjusting Set Temperature

    Operation Manual LC7 Wall Controller 10. Adjusting Set Temperature Press either the “SET TEMP ” Button to either increase or decrease the temperature correspondingly. NOTE ● For WARMER a room temperature, press the “SET TEMP ” Button. ● For COOLER a room temperature, press the “SET TEMP ”...
  • Page 11 AUTO                                                            en the system is ON) Operation Manual LC7 Wall Controller 11.02. Cooling Operation HEAT Press the “MODE” Button until “COOL” appears on the display. Set the desired temperature by pressing either the “SET TEMP ” Button Adjust the desired Indoor Fan speed by pressing the “FAN” Button.

  • Page 12: Timer Operation

    Operation Manual LC7 Wall Controller 12. Timer Operation 12.01. OFF Timer Press the “TIMER” Button to enter the timer menu. NOTE The system must be in the “ON” position to set an “OFF” timer. mer menu. er timer menu. Press the “SELECT ” or “SELECT ” Button to select the desired time for the system to remain operating before turning “OFF”.

  • Page 13: Backlight Function

    Operation Manual LC7 Wall Controller  timer menu.  timer menu. Press the “SELECT ” or “SELECT ” Button to select the desired time for the system to turn “ON”. The maximum adjustable timer hours are 24 with 0.5 hour (30 minute) adjustable increments.
  • Page 14 Operation Manual LC7 Wall Controller 13.02. Permanently Turn On LCD Backlight NOTE By default, the LCD Backlight is programmed to turn off 15 seconds after a button has been last pressed. Press and hold the “Repeat/R” Button for 4 seconds.

  • Page 15: Program Menu

    14.01.01. Timeclock Operation NOTE ● The 7-Day Timeclock feature of the LC7 controller allows you to set the air conditioning system to Turn-ON and Turn-OFF at different times for each day of the week. ● Each day can have 2-Programmed Events.
  • Page 16 M" button to enter the timeclock  to enter the timeclock  Operation Manual LC7 Wall Controller                                                                                                            eclock program is "OFF".  ram is "OFF".  Press the “SELECT ” Button to scroll from “OFF” to “ON”. or “ button to scroll through  on to scroll through  ON".                                                                                                  M" button to accept the selection  to accept the selection  clock. Press "EXIT" twice to go   "EXIT" twice to go  splay screen.                                         n.                                         Press the “PROGRAM” Button to accept the selection and re-activate the time clock.
  • Page 17 OCK", "PROG", "ON",  Operation Manual LC7 Wall Controller T" indicators and "Time  OCK", "PROG", "ON",  he "EVENT 1 ON" time  " indicators and "Time  e "EVENT 1 ON" time  Press the “SELECT ” or “SELECT ” Button to adjust the time in 15 minutes increments. AM and PM will toggle after the 12th Hour on to adjust the ON  ments.                                   n to adjust the ON  ggle after the 12th Hour ents.                                  ...
  • Page 18 Operation Manual LC7 Wall Controller ys/Events are  Repeat the above steps until you have programmed all the events you require. Otherwise, press the “EXIT” Button twice to exit Program Menu. “TIMECLOCK” display will show on the screen to indicate that it is active.
  • Page 19 Operation Manual LC7 Wall Controller 14.01.06. Programming Past Midnight NOTE ● Event “ON” times can be set up to 11:45 PM of the current day. ● Event “OFF” times can be set to the following day up to 23 hours and 45 minutes after the “ON” time.
  • Page 20 ON" Event. To delete  pressing "PROGRAM". Operation Manual LC7 Wall Controller Press the “ON/OFF” Button to delete Tuesday’s event “-:--” will be displayed indicating the event is cancelled. "Tuesday's event. Repeat above process to repeat other days event otherwise, press the “EXIT” Button twice to exit Program Menu.
  • Page 21 ON" Event. To delete  pressing "PROGRAM". Operation Manual LC7 Wall Controller to enter the sub menu.  elected) to program  Continue pressing the “PROGRAM” Button to get to desired event to re-activate.  "Tuesday's event. N" Event. Keep  on until you reach  Press the “ON/OFF” Button to re-activate Tuesday’s event The event’s “ON” time will be displayed indicating the event is re-activated.
  • Page 22 Operation Manual LC7 Wall Controller 14.02. Setting the Clock The air conditioning system must be Turned-ON before performing these procedures. Press the “PROGRAM” Button to enter program Menu to enter program  OGRAM“ button to enter program   “PROGRAM“ button to enter program  M“ button to enter program  to enter program  OGRAM“ button to enter program  u.   to enter program  Press the “SELECT or ” Button to navigate to Program Menu 02.
  • Page 23                                            Operation Manual LC7 Wall Controller nking                                  Press the “SELECT or ” Button to adjust the “Minutes”. to accept the desired  n to change                                             nking                                  Press the “PROGRAM” Button to accept the desired minutes. “Day” field will start blinking. Day indicator will be flashing, i.e. “MON”.
  • Page 24 14.03.01. Activating the Temperature Set back NOTE Activating Temperature Set back may cause unit to operate even if the LC7 Wall controller is “OFF”. Please proceed with activating the Temperature Set back feature if you understand the purpose and operating parameters.
  • Page 25 Operation Manual LC7 Wall Controller Press the “PROGRAM” Button to confirm the selection. Press the “EXIT” Button twice to go back to Main Screen. 14.03.02. Setting Temperature Set back NOTE The Set back mode “Cool to” and “Heat to” limits can only be adjusted from the temperature set back menu.
  • Page 26 Operation Manual LC7 Wall Controller Press "PROGRAM"  am Menu Press the “SET TEMP ” Button to change the “COOL” set back temperature. tton to change the  Press the “PROGRAM” Button to accept “COOL” set back temperature. Next screen will show “HEAT” set back temperature adjustment.
  • Page 27 Operation Manual LC7 Wall Controller 14.03.03. Temperature Set back Screens Tabulated below are the different screens that are displayed on the LC7 during Set back operation. - Heat To Set back limit Set back - Cool To Set back limit...
  • Page 28 Operation Manual LC7 Wall Controller to enter                                                                       display.                               to enter program  Press the “PROGRAM” Button to enter Program Menu 03. NOTE Display will show set back display. “ON” field is blinking. on to toggle from                                              on to scroll trough and  irm the selection. Press the “SELECT or ” Button to toggle from “ON” to “OFF”.
  • Page 29 AM“ button to enter program  Operation Manual LC7 Wall Controller Press the “PROGRAM” Button to enter Program Menu 04.  or “ button to scroll trough and   Menu 04, Filter Timer on to turn the Mode  AM“ button to enter program  pt the selection.           NOTE  or “ button to change the air  y default.                            Mode lock is OFF by default. 0 hour increments. on to turn the Mode  Press the “SELECT ” Button to turn the Mode lock “ON”.
  • Page 30 Operation Manual LC7 Wall Controller 14.05. Setpoint Lock 14.05.01. Activating Setpoint Lock Set the Setpoint based on the desired target temperature.  the desired target  n the desired target   is set to the mode you  Press the “PROGRAM” Button to enter program Menu. n to enter program  n to enter program  n to enter program  n to enter program  on to scroll trough and  Press the “SELECT or ”...
  • Page 31 Operation Manual LC7 Wall Controller F by default.                       ept the selection.    Press the “PROGRAM” Button to accept the selection. F by default.                       Press the “EXIT” Button once to go back to main Screen ack to main Screen ack to main Screen When the “SET TEMP” ” Button is pressed. The “Lock” symbol will appear for 3 seconds and user button is pressed. The ...
  • Page 32 Operation Manual LC7 Wall Controller ou wished yo lock. you wished yo lock. Press the “SELECT or ” Button to navigate to Program Menu 06. on to scroll trough and  ton to scroll trough and  you wished yo lock.  Set temp Lock.                   an Speed Lock.                 on to scroll trough and   enter the menu.  o enter the menu.  Fan Speed Lock.                 o enter the menu.  Press the “PROGRAM“ Button to enter Program Menu 06. on to scroll trough and ...
  • Page 33 Operation Manual LC7 Wall Controller 14.07. Keypad Lock et the requird fan speed you wished yo lock. et the requird fan speed you wished yo lock. he requird fan speed you wished yo lock. 14.07.01. Activating Keypad Lock et the requird fan speed you wished yo lock. you wished yo lock. Press the “PROGRAM” Button to enter program Menu ress “Select  or “ button to scroll trough and  n to enter program  ress “Select  or “ button to scroll trough and   “Select  or “ button to scroll trough and  ress “Select  or “ button to scroll trough and  elect Program Menu 07, Fan Speed Lock.                 on to scroll trough and  elect Program Menu 07, Fan Speed Lock.                 t Program Menu 07, Fan Speed Lock.                 elect Program Menu 07, Fan Speed Lock.                 ress "Program" button to enter the menu.  you wished yo lock. you wished yo lock. Fan Speed Lock.                 ress "Program" button to enter the menu. ...

  • Page 34: Filter Timer

    Operation Manual LC7 Wall Controller “ button twice to go back to main                                                    When any Button is pressed (EXCEPT “PROGRAM”, “DISPLAY”, “AFTER HOURS” and “SELECT ”), the “Lock” symbol will appear for 3 seconds and user won’t be able to access any of those Buttons. “ button twice to go back to main ...

  • Page 35: After Hours

    Operation Manual LC7 Wall Controller 16. After Hours NOTE ● “AFTER HOURS” status is disabled (OFF) by default. ● For the “AFTER HOURS” run timer to operate, the “TIMECLOCK” operation has to be enabled. ● If the “AFTER HOURS” run timer overlaps with the scheduled “TIMECLOCK” event “ON”, the unit will continue running with “AFTER HOURS”...
  • Page 36 Operation Manual LC7 Wall Controller Press the to increase / decrease “AFTER HOURS” timer in 0.5 hour (30 minute) “SELECT ” Button increments. Press the “PROGRAM” Button to accept changes. NOTE ● To cancel an active “AFTER HOURS” function, or if you decide to cancel After Hours before the due time, press the “ON/OFF”...
  • Page 37 THIS PAGE WAS INTENTIONALLY LEFT BLANK Page 37...
  • Page 38 THIS PAGE WAS INTENTIONALLY LEFT BLANK Page 38...
  • Page 39 THIS PAGE WAS INTENTIONALLY LEFT BLANK Page 39...
  • Page 40 ©Copyright 2018 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. Document: 0525-072 Issue Date: 02/2019...
