Location
Choose a location where the main cold water line is accessible. The system must
be installed after other water treatment equipment (i.e. softener), but before any
branches (See Figure 1).
To facilitate lamp removal, ensure there is enough space at the lamp connector end
to safely remove the UV lamp and/or quartz sleeve (See Installation Figure 3). The
controller will require a Residual Current Device (RCD) outlet and should be mounted
beside or above the chamber.
IMPORTANT:
All Microlene Aquashield Centurion UV Disinfection Systems are intended to be
installed under a weather proof cover and should not be exposed to the elements.
MCS-C Weather proof cover (purchased separately)
• Protects the chamber and controller from rain and direct elements
• Enables the 3 Stage UV system to be set up left to right or right to left for ease of
installation.
• Mounting holes are aligned with the UV System
• Insert locking pin or screwdriver to
cover open during servicing
• Lamp change through side of the
holes, no disassembling required
• Made from: 1.2mm
titanium laminate zintek
• Powdercoated with matt satin black finish

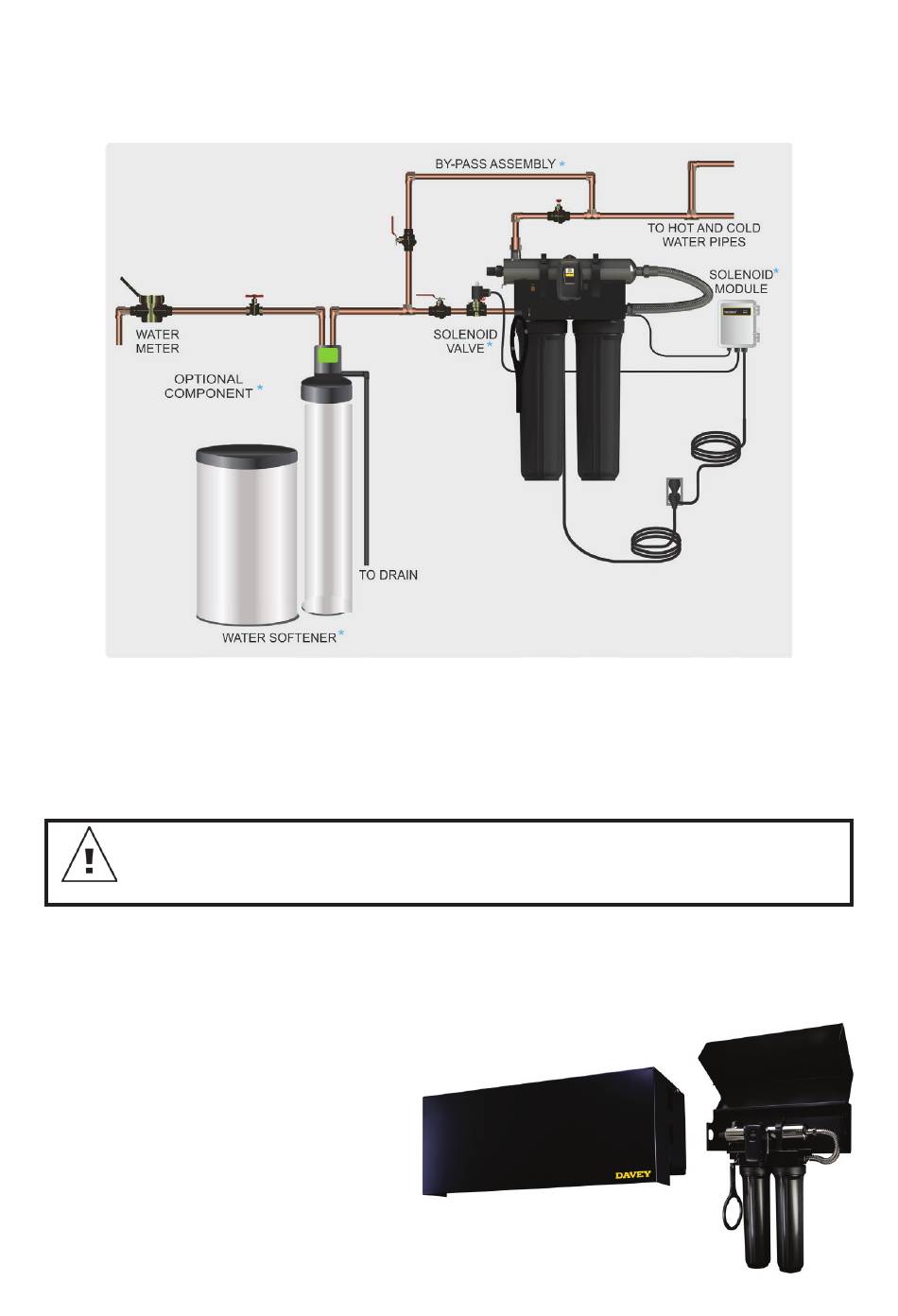

Figure 1. Typical Installation
®
7
lock
cover
zinc-
