INSTALLATION AND OPERATING INSTRUCTIONS
Please pass these instructions on to the operator of this equipment
WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or
property damage.
Prior to using this pump you must ensure that:
•
The pump is installed in a safe and dry environment
•
The pump enclosure has adequate drainage in the event of leakage
•
Any transport plugs are removed
•
The pipe-work is correctly sealed and supported
•
The pump is primed correctly
•
The power supply is correctly connected
•
All steps have been taken for safe operation
Appropriate details for all of these items are contained in the following Installation and Operating Instructions. Read
these in their entirety before switching on this pump. If you are uncertain as to any of these Installation and Operating
Instructions please contact your Davey dealer or the appropriate Davey office as listed on the back of this document.
Location
The pump must be protected from the weather. If it is to be located outside, a weatherproof shelter must be put over the
pump and motor. This shelter must have ventilation to allow the motor to draw in air for cooling, and adequate space, so
as not to restrict the flow of air to the motor. The shelter should be readily removable for access to the pump at a later
date. Locate the pump as close as possible to the liquid to be pumped. Provision is made in the base of the pump for
bolting down, and it is recommended that the pump be permanently secured, particularly for dairy and piggery use.
Installation
Power
In accordance with AS 3350.2.41 we are obliged to inform you that this pump is not to be used by children or infirm
persons and must not be used as a toy by children.
NOMINAL
POWER SUPPLY
230V +10%
480V +10%
415V +6%
* Maximum rated current is the maximum for the motor, and is higher than that required when pumping clean water -
this is to allow a motor power reserve when pumping effluent.

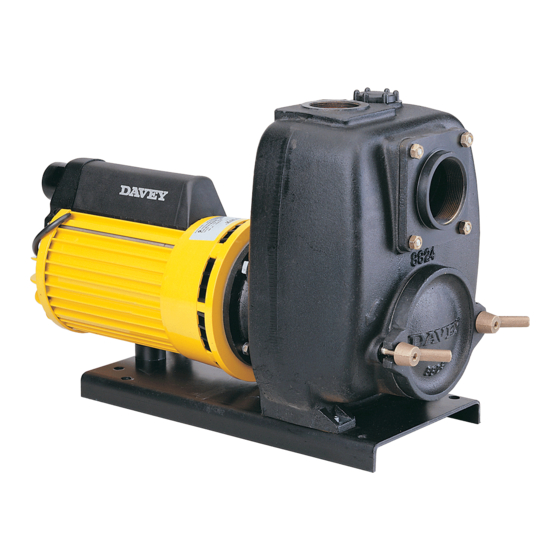

MUKMOVA
MANURE & "TRASH" PUMP
PHASE
CYCLES
1
50 Hz
1
50 Hz
3
50 Hz
MAXIMUM *
RATED CURRENT
11 Amps
5.5 Amps
5.1 Amps
LOCKED
ROTOR CURRENT
68 Amps
38 Amps
24 Amps
Advertisement
Related Manuals for Davey MUKMOVA
Summary of Contents for Davey MUKMOVA
- Page 1 If you are uncertain as to any of these Installation and Operating Instructions please contact your Davey dealer or the appropriate Davey office as listed on the back of this document.
- Page 2 The three phase 415V TEFC motor on this pump must have a contactor wired in which has correctly rated quick trip (M10) thermal overloads, otherwise any failure will not be the responsibility of Davey. Davey recommend the use of overloads which also have the ability to detect “single phasing” or “dropped phase” conditions in the power supply.
- Page 3 Periodic cleaning out of the pump is good practice. Impeller Clearance Adjustment The Mukmova pump has an open face impeller (see the exploded view – Item 4). As this pump is used to pump manure and “trash”, the impeller will wear over time.
- Page 4 Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below. On receipt of your claim, Davey will seek to resolve your difficulties or, if the product is faulty or defective, advise you on how to have your Davey product repaired, obtain a replacement or a refund.
