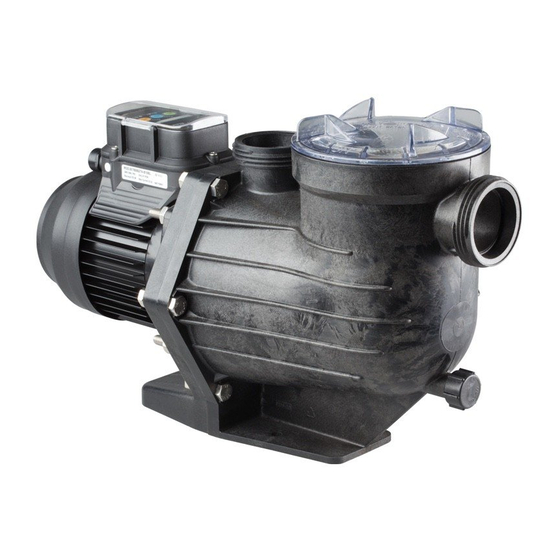

PowerMaster
WARNING: Failure to follow these instructions and comply with all applicable
codes may cause serious bodily injury and/or property damage.
The installation of this product should be carried out by a person knowledgable
in swimming pool plumbing requirements following the installation instructions
provided in this manual.
Please pass these instructions on to the operator of this equipment.
INSTALLATION
AND OPERATING
INSTRUCTIONS
ECO-SERIES
®
Advertisement
Table of Contents
Related Manuals for Davey PowerMaster Eco-Series
Summary of Contents for Davey PowerMaster Eco-Series
- Page 1 PowerMaster ® ECO-SERIES INSTALLATION AND OPERATING INSTRUCTIONS WARNING: Failure to follow these instructions and comply with all applicable codes may cause serious bodily injury and/or property damage. The installation of this product should be carried out by a person knowledgable in swimming pool plumbing requirements following the installation instructions provided in this manual.
- Page 2 Congratulations on the purchase of a quality product from the Davey Water Products range of Pool and Spa Equipment. You are assured of many years of reliable and super-efficient performance from your Davey PowerMaster ® ECO-Series pump. Read these instructions in their entirety before switching on this pump.
- Page 3 Many pool products rely on particular minimum flow rates for best operation and/or efficiency. If you are using a low flow pump on your pool, such as the PowerMaster ECO Series pool pump, Davey recommends that you check ® the compatibility of it with other pool equipment such as: • Automatic pool cleaners...
-
Page 4: Technical Specifications
Technical Specifications: Model PMECO Eco Flow Speed – 1400 Mid Flow Speed – 2400 High Flow Speed – 2850 Enclosure Class (IP) Insulation Class Class B130 Insulation Voltage (V) 240 AC Supply Frequency (Hz) Run Current (A) Eco Flow - 165w / 0.22 hp Motor Input Power (W / hp) Mid Flow –... - Page 5 Power Connection Davey Power Master is suitable for connection to a nominal 240 volt 50Hz ® power supply and are equipped with a flex and 3 pin plug. If a power outlet is not available within 3 metres of the pump, a 3 pin power point in a safe, dry place may need to be provided by an electrician.
- Page 6 Davey Water Products recommends that all installations are fitted with earth leakage or residual current protection devices. CAUTION: In the interest of safety, we advise that all brands and types of pool pumps must be installed in accordance with AS3000 wiring rules or equivalent. This appliance is not intended for use by persons (including children) with...
- Page 7 Pipe Connection A barrel union is provided for connecting to the piping from the pool. The pumps are designed to accept 40mm PVC on the ID or a 50mm PVC fitting on the OD. When plumbing the discharge pipe, ensure that the pipework does not interfere with the touchpad’s protective cover, which needs to fully open and close.
- Page 8 Before starting ensure that: • All pipework is correctly sealed. • The pool/spa water level is at the correct height. • That all appropriate valves are open and there is nothing preventing the • flow of water through the system. The Davey PowerMaster ECO Series motor has 3 speed settings, Eco ® Flow, Mid Flow and High Flow. It will always start on High Flow setting to aid priming and after 2 minutes will automatically revert to the last used speed setting.
- Page 9 Low Energy Operation: Your PowerMaster ECO Series pump has 3 speed settings: ® 1. Eco Flow – Lowest Speed 2. Mid Flow – Medium Speed 3. High Flow – Highest Speed Eco Flow mode provides the lowest speed and therefore the greatest energy savings. Operation Recommended Speed Setting Pool Filtration...
- Page 10 3 Speed pump with a Davey Salt Water ® Chlorinator: Davey ChloroMatic and EcoSalt salt water chlorinators require a minimum flow rate of 80 litres per minute (lpm) through the chlorinator cell for best efficiency and cell life. The Davey PowerMaster Eco Series can provide ®...
- Page 11 Mid setting should be ample for most cleaners but if the cleaner requires better performance, activate the High Flow setting. Eco Flow should be suitable to run a Davey Frill-Neck WIZARD pool cleaner. 4. The cleaner should only be connected for as long as is required to clean the surface of your pool.
-
Page 12: Trouble Shooting
PowerMaster , contact the supplier from whom the pump was ® purchased or your nearest Authorised Davey Pool Equipment Service Centre. If any further assistance is required, contact the Davey Customer Service Centre at the address indicated in this manual. - Page 13 Removal of the Pump from Pipework Should it be necessary to remove the pump, follow these instructions: 1. Switch off the power and remove the plug from the power source. NOTE: If the pump is wired into a time clock or another automatic control, the wiring should be removed by a qualified technician.
- Page 14 POWER CONNECTIONS AND WIRING MUST BE CARRIED OUT BY AN AUTHORISED ELECTRICIAN. DANGER - Hazardous suction. Do not block water entry into filtration system with any part of your body as the pressure can trap hair or body parts, causing severe injury or death. Do not block suction. Turn off pump immediately if someone becomes trapped. Caution! Do not add chemicals directly to the pool skimmer.
- Page 15 Davey Dealer from which you purchased the Davey product. Alternatively you can phone our Customer Service line on 1300 367 866 in Australia, or 0800 654 333 in New Zealand, or send a written letter to Davey at the address listed below.
