Constant Pressure System
Installation and Operating
ATTENTION: Please refer to www.bit.ly/dynadrive
for any product information updates, or simply
scan this QR code.
These can also be found on the product nameplate.
Please pass these instructions on to the operator of this equipment.
READ AND SAVE THESE INSTRUCTIONS.

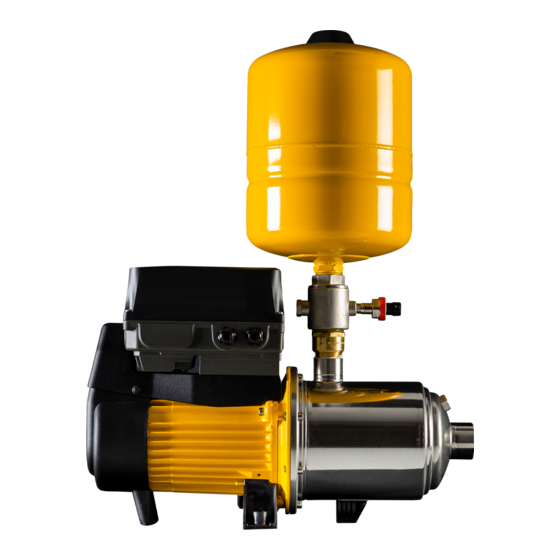

DynaDrive
Instructions
Models: DD15-35NPT
DD60-10NPT
DD90-11NPT
™
Advertisement
Table of Contents
Related Manuals for Davey DynaDrive DD15-35NPT
Summary of Contents for Davey DynaDrive DD15-35NPT
- Page 1 DynaDrive ™ Constant Pressure System Installation and Operating Instructions Models: DD15-35NPT DD60-10NPT DD90-11NPT ATTENTION: Please refer to www.bit.ly/dynadrive for any product information updates, or simply scan this QR code. These can also be found on the product nameplate. Please pass these instructions on to the operator of this equipment. READ AND SAVE THESE INSTRUCTIONS.
-
Page 2: Table Of Contents
DynaDrive ™ Congratulations on your purchase of a high quality, Davey DynaDrive constant pressure system. All components have been designed and manufactured to give trouble free, reliable operation. Contents 1. PRIOR TO USING THIS PRESSURE SYSTEM, YOU MUST ENSURE THAT ..........3 2. -
Page 3: Prior To Using This Pressure System, You Must Ensure That
Read these in their entirety before switching on this pump. If you are uncertain as to any of these Installation and Operating Instructions, please contact your Davey dealer, or the appropriate Davey office as listed on the back of this document. -
Page 4: Your New System
Most water supply authorities have strict regulations regarding connection to mains water supplies, please adhere to those regulations. Do not exceed to Davey pump operating pressures, Davey Water Product Pty Ltd cannot accept responsibility for loss or damage resulting from incorrect installations. -
Page 5: Above Ground Water Sources (Flooded Suction)
3.2 Above ground water sources (flooded suction) The DynaDrive DD15-35NPT model comes factory set to 60psi to suit boosting applications, please note for flooded suction and suction lift applications the factory set pressure will need to be reduced to prevent a dry run situation. Also note the pressure tank will also require adjustment to 70% of the set pressure. -
Page 6: Installation
This will assist laminar flow. Figure 4.2 4.3 Air Handling While Davey must stress the overall requirement for all suction lines to be airtight, we also are aware that sometimes removing air from suction lines or stopping minor leaks can be difficult. -
Page 7: Power Connection
• Ensure motor is connected to power supply specified on nameplate; • Although the Davey electric motor is specifically engineered to perform on a range of power supply voltages, malfunctions or failure caused by adverse voltage supply conditions are not covered under guarantee. -
Page 8: The Pressure Tank
4.5 The pressure tank IMPORTANT: Air pressure in pressure tank should be set to 70% of the DynaDrive set pressure. For example, the pressure that DynaDrive comes pre-set to is as follows: DD15-35NPT 414kPa (60psi); DD60-10NPT 414kPa (60psi); DD90-11NPT 414kPa (60psi). The default air pressure of the pressure tank used with DynaDrive should be set to: DD15-35NPT 290kPa (42psi);... -
Page 9: Features
5. FEATURES 5.1 System features • Provides warning indications for system faults; • Has adjustable pressure setting to allow for various operating conditions; • Provides automatic “cut-out” protection should the pump run out of water, should the pump fail to start due to low voltage or a blockage in the pump;... -
Page 10: Vsd Features
6.1 Start-up procedure After power is initially turned on to the DynaDrive, the display shows the software version and the name Davey, see figure 6.1. All LEDs flash for the initial ~ 5 seconds. The Power LED will remain lit green, showing the DynaDrive has power. - Page 11 The display then reverts to the HOME SCREEN, see figure 6.2. The Power LED will show bright green. The display shows the pre-set pressure (psi) on the top line, shown in Figure 6.2, and pressure (psi) being measured by the DynaDrive pressure transducer on the bottom line, shown in Figure 6.2. The default unit of measurement is psi: Pset 60 Pact 0...
-
Page 12: Manual Override
In addition to automated control, DynaDrive can also be run in manual override on, should the need arise. IMPORTANT: It should be noted that when the pump is manually turned on, the automated protection built into DynaDrive is overridden. Davey recommends use of the manual override only when absolutely necessary and only for a short time period. - Page 13 Pset 60 Pact 60 Figure 6.5 Prime button. The pump will turn on and continue to run until the • Press and hold the Prime button is released, see figure 6.6; While the pump is in manual override the Prime LED will illuminate orange, see figure 6.6. Pset 60 Pact 6 1 Figure 6.6...
-
Page 14: Main Menu Display
6.3 Main menu display After initial startup, pressing the Menu up button will allow display to scroll through the following: • Frequency (Hz); • Outgoing current per phase from the DynaDrive to the pump’s motor (Amps); • Temperature of the DynaDrive (°F). To change the display: •... -
Page 15: Changing The Set Pressure
6.4 Changing the set pressure IMPORTANT: WHEN ADJUSTING SET PRESSURE, DO NOT EXCEED THE PRESSURE CAPABLE OF THE DYNADRIVE IN THE INSTALLATION. REFERENCE TO LOCAL REGULATIONS SHOULD ALSO BE CONSIDERED. When changing the set pressure of DynaDrive, the pressure of the pressure tank must also be adjusted. Refer to section 4.5 pressure tank, of the installation chapter. - Page 16 pressure 60 Psi Figure 6.10 • If the controls are untouched for ~ 30 seconds, the menu will revert back to normal display; • To change the set pressure, use the Menu up button or Menu down button. Pressure changes are in multiples 5psi. •...
-
Page 17: Extra Draw-Off Capacity
70% of the system set pressure. For installations requiring flow rates between 4-17oz/min, it is common for the DynaDrive to run continuously. If this occurs, adjust up the min frequency setting (refer section 7.4) and install a larger pressure tank. If you have any further concerns, please contact your local Davey representative. 6.6 Decommissioning the DynaDrive... -
Page 18: Advanced Settings
7. ADVANCED SETTINGS 7.1 Changing cut-in pressure point The default cut-in pressure of DynaDrive is 7psi less than set point. This can be changed by: • Ensure automated control is turned off. To turn the automated control off, push the Automatic on / manual off button. -
Page 19: Changing The Min Frequency
• If the controls are untouched for ~ 30 seconds, the menu will revert back to normal display; • Using the Menu up button and Menu down button scroll through to Cut-in; • Use the Menu up button and Menu down button to change the setting to adjust the cut-in pressure variance;... - Page 20 pressure 60 Psi Figure 7.4 • If the controls are untouched for ~ 30 seconds, the menu will revert back to normal display; • Using the Menu up button and Menu down button scroll through to Min Freq. • Use the Menu up button and Menu down button to change the setting to.
-
Page 21: Using A Switch To Override Dynadrive Operation
7.3 Using a switch to override DynaDrive operation DynaDrive has the ability to be overridden by a separate switch. This may be of benefit if using a float switch on a source tank (eg rainwater tank). To wire in an independent switch, refer figure 7.5 and 7.6. For model DD15-35NPT ~1 110V or all other models ~1 230V... - Page 22 To set the DynaDrive to recognize the remote switch: • Ensure automated control is turned off. To turn the automated control off, push the Automatic on / manual off button. • The green Automatic LED will turn off, see figure 7.7; Pset 60 Pact 60 Figure 7.7...
- Page 23 DynaDrive controller. The normally open terminals will not trigger fault/alarm/pause conditions. When the terminals are closed circuit, the DynaDrive operates normally. Davey recommends a float switch cable no longer than 3m (10 feet), when using 2 x 0.25mm (24 AWG) cable. If the switch overrides DynaDrive to pause, the DynaDrive display will show a flashing Fault LED.
-
Page 24: Daisy-Chain Multiple Dynadrive Systems
DynaDrive, use the “COMUNIC” terminal 3. Wire to the “COMUNIC” terminal 3 of the second DynaDrive. Davey suggests limiting the distance between the pumps to 2m (6½ feet). To set up multiple DynaDrive to run in a common manifolded system use the following: To set the DynaDrive to recognise the daisy chain configuration: •... -
Page 25: Optional Alarm Monitoring Module
8. TECHNICAL SPECIFICATIONS 8.1 Operating limits The DynaDrive DD15-35NPT model comes factory set to 60psi to suit boosting applications, please note for flooded suction and suction lift applications the factory set pressure will need to be reduced to prevent a dry run situation. Also note the pressure tank will also require adjustment to 70% of inlet pressure. -
Page 26: Hydraulic Performance
8.2 Hydraulic performance DD15-35NPT DD60-10NPT DD90-11NPT 1¼" NPT F 1¼" NPT F Inlet 1" NPT F 1" NPT M 1" NPT M Discharge outlet 1" NPT F Default nominal operating pressure 60psi 60psi 60psi Number of stages (impellers) Maximum pump pressure (head) 46m (151') 69m (226') 59m (194') -
Page 27: Electrical Data
DD15-35NPT Figure 8.7 136mm (5 ") 572mm (22 ") 298mm (11 ") 140mm (5 ") 88mm (3 ") 228mm (9) 196mm (7 ") 228mm (9) 423mm (16 ") 171mm (6 ") 100mm (4") 130mm (5 ") Mounting Hole 8.4 Electrical data DD15-35NPT DD60-10NPT DD90-11NPT... -
Page 28: Maintenance
IMPORTANT: Do not use hydrocarbon based or hydrocarbon propelled sprays around the electrical components of this pump. During servicing, use only approved, non- petrochemical based o-ring and gasket lubrication. If unsure, consult your Davey representative for advice. For protection, DynaDrive monitors input current and will shut down the pump motor in the event of an over load. - Page 29 • DynaDrive attempts random restarts. cooled down (if hot); then restart as per section 6 of this manual. If problem persists, contact your Davey representative via the details at the end of this manual. • A7 SHORTCIRCUIT The device has an electronic system for protection against short circuits as well as peaks •...
-
Page 30: Spare Parts
12. SPARE PARTS DynaDrive 6 stages DD60-10NPT DynaDrive 5 stages DD90-11NPT Notes: A. 2nd Stage body comes with air valve assy which can be retrofi tted onto models without the air valve. Subsequent stage bodies have the air hole which can also be retrofi tted onto models that do not have the air valve already fi tted. B. -
Page 32: Davey Warranty
4. Davey shall not be liable for any loss of profits or any consequential, indirect or special loss, damage or injury of any kind whatsoever arising directly or indirectly from the product or any defect, and the purchaser shall indemnify Davey against any claim by any other person whatsoever in respect of any such loss, damage or injury.
