Sena SPIDER RT1 User Manual

Motorcycle mesh communication system
Hide thumbs Also See for SPIDER RT1:
Table of Contents

Advertisement

Quick Links

SENA
MOTORCYCLE MESH COMMUNICATION SYSTEM
USER'S GUIDE
Version 1.1.0
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPIDER RT1 and is the answer not in the manual?

Questions and answers

Related Manuals for Sena SPIDER RT1

Summary of Contents for Sena SPIDER RT1

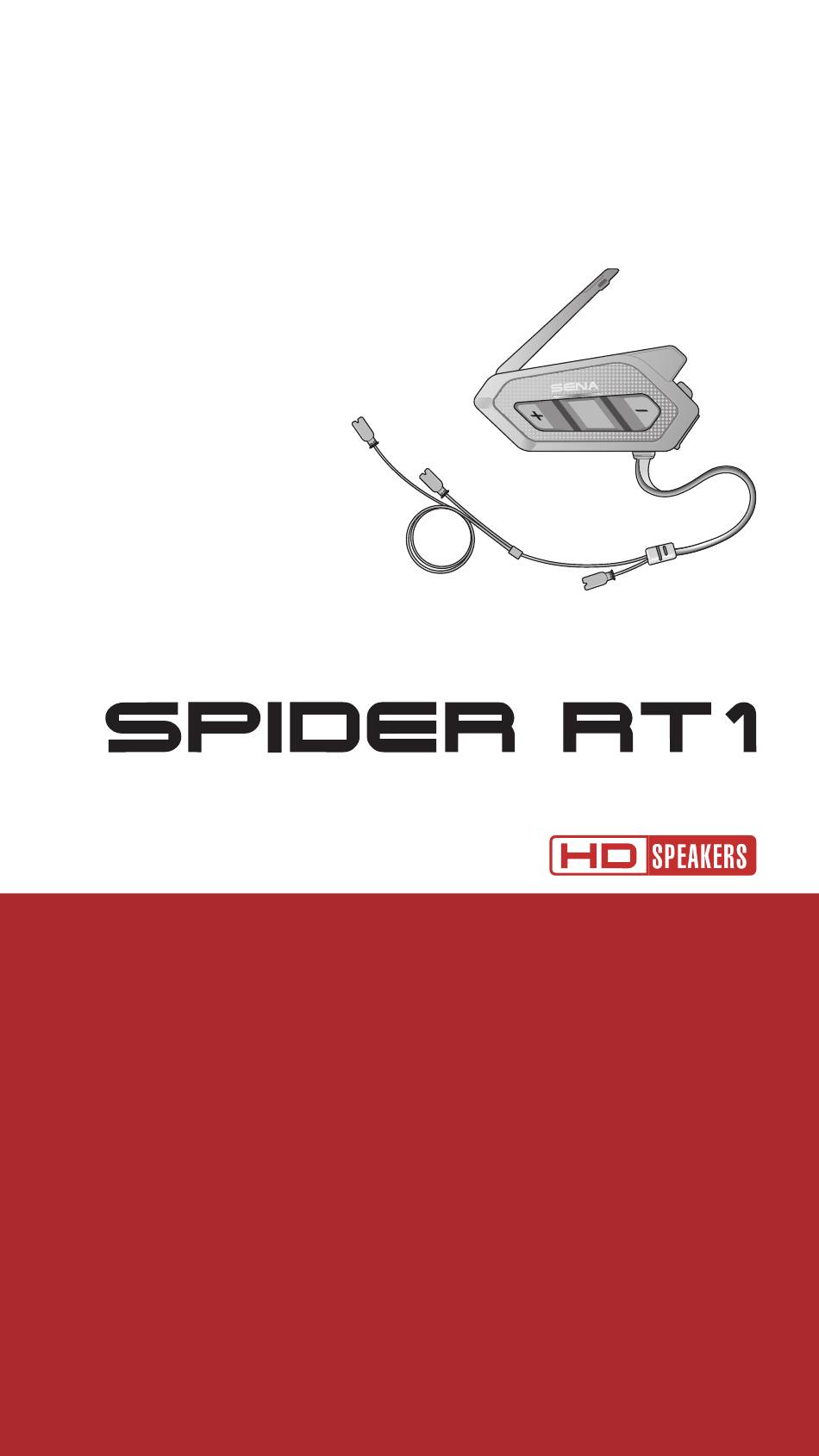

  • Page 1 SENA MOTORCYCLE MESH COMMUNICATION SYSTEM USER’S GUIDE Version 1.1.0 ENGLISH...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ABOUT THE SPIDER RT1 1.1 Product Features 1.2 Product Details 1.3 Package Contents INSTALLING THE HEADSET ON YOUR HELMET 2.1 Installing the Main Unit 2.1.1 Using the Hook and Loop Fasteners for Main Unit 8 2.1.2 Using the Double Sided Adhesive Tapes for Main Unit 2.1.3...
  • Page 3 BLUETOOTH DEVICES 4.1 Phone Pairing 4.1.1 Initially Pairing the SPIDER RT1 4.1.2 Pairing When the SPIDER RT1 is Turned Off 4.1.3 Pairing When the SPIDER RT1 is Turned On 4.2 Second Mobile Phone Pairing - Second Mobile Phone, GPS, and SR10 4.3 GPS Pairing...
  • Page 4 TABLE OF CONTENTS CONTINUED 7.5 Enable/Disable Mic (Default: Enable) 7.6 Toggling Open Mesh/Group Mesh 7.7 Reset Mesh MESH AUDIO MULTITASKING (ALWAYS ON) FUNCTION PRIORITY 10. CONFIGURATION SETTING 10.1 Headset Configuration Menu 10.2 Software Configuration Setting 10.2.1 Audio Equalizer (Default: Off) 10.2.2 VOX Phone (Default: Enable) 10.2.3...

  • Page 5: About The Spider Rt1

    1. ABOUT THE SPIDER RT1 1.1 Product Features Bluetooth ® Mesh Intercom up to 2 km (1.2 mi)* Audio Multitasking™ Music Sharing * in open terrain SPIDER RT1 Motorcycle Mesh Communication System | 5...

  • Page 6: Product Details

    1 ABOUT THE SPIDER RT1 1.2 Product Details Mesh Intercom Button (-) Button Center Button (+) Button Mesh Intercom Antenna Status LED DC Power Speaker Charging & Connectors Firmware Upgrade Port Microphone Connector SPIDER RT1 Motorcycle Mesh Communication System | 6...

  • Page 7: Package Contents

    Microphone Boom for Wired Microphone Microphone Hook and Loop Microphone Speakers Speaker Pads Fasteners for Sponges Speakers USB Power & Boom Microphone Hook and Loop Data Cable Holder Fastener for Holder (USB-C) SPIDER RT1 Motorcycle Mesh Communication System | 7...

  • Page 8: Installing The Headset On Your Helmet

    4. Attach the main unit using the hook and loop fasteners that you fitted. Make sure that the main unit is firmly attached to the helmet. SPIDER RT1 Motorcycle Mesh Communication System | 8...

  • Page 9: Using The Double Sided Adhesive Tapes For Main Unit

    4. Make sure that the main unit sticks on the helmet firmly. Maximum adhesion occurs after 24 hours. Caution: Sena recommends using the hook and loop fasteners for main unit. The double sided adhesive tape is provided for convenience, but is not the recommended mounting method. Sena is not responsible for its use.

  • Page 10: Installing The Speakers

    1. Peel off each cover of the hook and loop fasteners for speakers to expose the adhesive surface. Then, attach the fasteners to the ear pockets inside the helmet. 2. Attach the speakers to the hook and loop fasteners for speakers inside the helmet. SPIDER RT1 Motorcycle Mesh Communication System | 10...

  • Page 11: Installing The Microphones

    Then, attach the hook and loop fastener on the inside surface of the left external shell. 2. Attach the wired boom microphone’s mounting plate to the hook and loop fastener. SPIDER RT1 Motorcycle Mesh Communication System | 11...
  • Page 12 4. Adjust the head of the microphone so that the tab is facing away from your mouth. 5. Align the arrows on the main unit and microphone cables and insert the microphone cable into the microphone connector. Note: The shortest cable is for the microphone. SPIDER RT1 Motorcycle Mesh Communication System | 12...

  • Page 13: Using The Wired Microphone

    3. Align the arrows on the main unit and microphone cables and insert the microphone cable into the microphone connector. Note: The shortest cable is for the microphone. 2.4 External Mesh Intercom Antenna Pull the Mesh Intercom Antenna inwards slightly to unfold it. SPIDER RT1 Motorcycle Mesh Communication System | 13...

  • Page 14: Getting Started

    3. GETTING STARTED 3.1 Downloadable Sena Software 3.1.1 SENA MOTORCYCLES App By simply pairing your phone with your headset, you can use the SENA MOTORCYCLES App for quicker, easier set up and management. SENA MOTORCYCLES • Download the SENA MOTORCYCLES App on Google Play Store Store.

  • Page 15: Charging

    3.5 hours of Mesh communication after charging the headset for 20 minutes. • Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts.

  • Page 16: Volume Adjustment

    3.6 Checking the Battery Level Instructions are for when powering the headset on. Powering On HOLD Note: When the battery is low while in use, you will hear a voice prompt saying “Low battery”. SPIDER RT1 Motorcycle Mesh Communication System | 16...

  • Page 17: Pairing The Headset With Other Bluetooth Devices

    The headset can pair with multiple Bluetooth devices such as a mobile phone, GPS, MP3 player or Sena SR10 Two-Way Radio Adapter via Mobile Phone Pairing, Second Mobile Phone Pairing and GPS Pairing.
  • Page 18 PIN, enter SPIDER RT1 0000. Device B 4.1.2 Pairing When the SPIDER RT1 is Turned Off 1. While the headset is off, press and hold the Center Button and the (+) Button for 5 seconds. Blinking HOLD “Phone Pairing”...

  • Page 19: Second Mobile Phone Pairing - Second Mobile Phone, Gps, And Sr10

    “ Configuration HOLD Menu” 2. Tap the (+) Button. Blinking “ Second mobile phone pairing” 3. Select SPIDER RT1 in the list of Bluetooth devices detected. If your Bluetooth mobile phone asks for a PIN, enter SPIDER RT1 0000. Device B 4.3 GPS Pairing...

  • Page 20: Mobile Phone Usage

    5.2 Speed Dialing 5.2.1 Assigning Speed Dial Presets Speed Dial Presets could be assigned through the Sena Device Manager or the SENA MOTORCYCLES App. 5.2.2 Using Speed Dial Presets 1. Enter into the Speed Dial menu.
  • Page 21 5 MOBILE PHONE USAGE 3. Call one of your Speed Dial Presets numbers. “ Speed dial (#)” 4. Redial the last number called. Redial Last Number “ Last number redial” SPIDER RT1 Motorcycle Mesh Communication System | 21...

  • Page 22: Stereo Music

    “Music sharing on” [Creator] HOLD [Participants] “ Would you like to accept music sharing?” 2. The Creator will share music with the first participant that accepts the request. [Participant] Accept [Participant] Refuse HOLD SPIDER RT1 Motorcycle Mesh Communication System | 22...

  • Page 23: Mesh Intercom

    The working distance between each SPIDER RT1 in Mesh Intercom can be up to 2 km (1.2 miles) in open terrain. In open terrain, the Mesh can be extended up to 8 km (5 miles) between a minimum of six users.

  • Page 24: Open Mesh

    Mesh needs to be created by the users. When users create a private group in Group Mesh by Mesh Grouping, the headset automatically switches from Open Mesh to Group Mesh. Up to 24 users can all be connected in each private group. Group Mesh SPIDER RT1 Motorcycle Mesh Communication System | 24...

  • Page 25: Starting Mesh Intercom

    7 MESH INTERCOM 7.2 Starting Mesh Intercom When Mesh Intercom is enabled, the SPIDER RT1 will automatically connect to nearby SPIDER RT1 users and allow them to talk to each other by pressing the Mesh Intercom Button. Mesh Intercom On Blinking “...

  • Page 26: Using Mesh In Group Mesh

    • The channel will be remembered even if you turn off the SPIDER RT1. • You can use the SENA MOTORCYCLES App to change the channel. 7.4 Using Mesh in Group Mesh 7.4.1 Creating a Group Mesh...
  • Page 27 Note: If the Mesh Grouping is not completed within 30 seconds, the current user (You) will hear a low tone double beep and the new users (D and F) will hear a voice prompt, “Grouping failed”. SPIDER RT1 Motorcycle Mesh Communication System | 27...

  • Page 28: Enable/Disable Mic (Default: Enable)

    Open Mesh and Group Mesh. You will hear a voice prompt, “No Group Available”. 7.7 Reset Mesh If a headset in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1). HOLD SPIDER RT1 Motorcycle Mesh Communication System | 28...

  • Page 29: Mesh Audio Multitasking (Always On)

    Management settings. The Intercom-Audio Overlay Sensitivity and the Audio Overlay Volume Management settings can be found in the Software Configuration Setting, accessible through the Sena Device Manager or the SENA MOTORCYCLES App. SPIDER RT1 Motorcycle Mesh Communication System | 29...

  • Page 30: Function Priority

    Mesh Intercom Music sharing via Bluetooth stereo (lowest) Bluetooth stereo music A lower-priority function gets interrupted by a higher-priority function. For example, stereo music will be interrupted by an incoming mobile phone call. SPIDER RT1 Motorcycle Mesh Communication System | 30...

  • Page 31: Configuration Setting

    Factory Reset Execute Exit Execute 10.2 Software Configuration Setting You can change the settings of the headset through the Sena Device Manager or the SENA MOTORCYCLES App. SENA MOTORCYCLES Sena Device Manager SPIDER RT1 Motorcycle Mesh Communication System | 31...
  • Page 32 Level 1 has the lowest sensitivity and level 5 has the highest sensitivity. Note: If your voice is not louder than the sensitivity of the selected level, the overlaid audio will not be lowered. SPIDER RT1 Motorcycle Mesh Communication System | 32...
  • Page 33 10.2.7 Voice Prompt (Default: Enable) You can disable voice prompts by software configuration settings, but the following voice prompts are always on. - Headset configuration settings menu, battery level indicator, speed dial SPIDER RT1 Motorcycle Mesh Communication System | 33...

  • Page 34: Troubleshooting

    To erase all of your settings and start fresh, the headset can be restored to factory default settings using the Factory Reset feature. HOLD “Configuration menu” “Factory Reset” “ Headset reset, good-bye” SPIDER RT1 Motorcycle Mesh Communication System | 34...
  • Page 35 Hero4 allowing for Bluetooth capabilities. The Bluetooth word mark and logos are owned by the ® Bluetooth SIG, Inc. and any use of such marks by Sena is under license. iPhone and iPod touch are registered trademarks of ®...

This manual is also suitable for:

Spider st1Spider-rt1-01Spider-rt1-01d
