Sena SPIDER RT1 - Mesh Intercom Headset Quick Start Guide

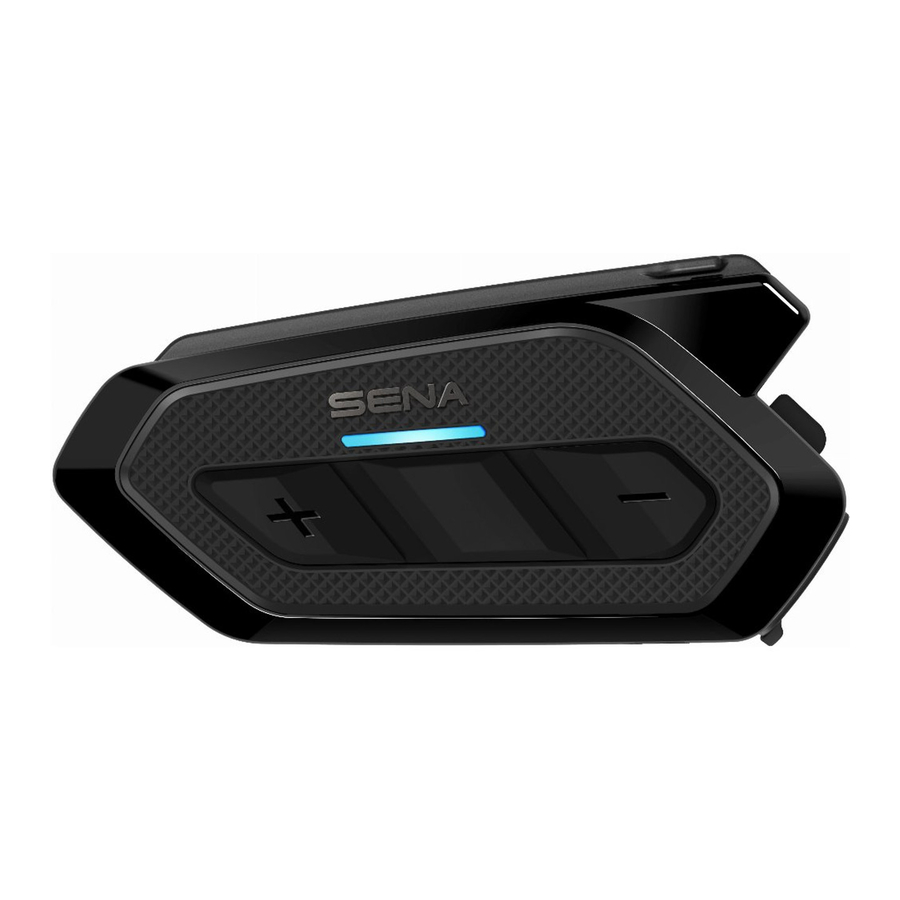

Product Details

1. Mesh Intercom Antenna
2. Status LED
3.

4. Microphone Connector
5. Speaker Connectors
6.

   1. (+) Button

   2. Center Button

   3. (-) Button

   4. Mesh Intercom Button


Installation

Using the Hook and Loop Fasteners for Main Unit

Using the Double Sided Adhesive Tapes for Main Unit

Using the Clamp for Main Unit

Installing the Speakers

Installing the Wired Boom Microphone

Installing the Wired Microphone

• For more information about installation, refer to the User's Guide.

Mesh Intercom Antenna

Pull the Mesh Intercom Antenna inwards slightly to unfold it.

NOTICE

• This Quick Start Guide (Version 2.0) explains how to operate the SPIDER RT1 with firmware version 2.0 or higher.
• For the operation of the SPIDER RT1 with a firmware version lower than 2.0, refer to the SPIDER RT1 Quick Start Guide (Version 1.1.0) or lower.

Icon Legend

Tap button the specified number of times

Press and Hold button for the specified amount of time

Basic Operations

Powering On

Powering Off

Volume Up

Volume Down

Checking the Battery Level

Powering On			=
			=
			=

Phone Pairing

1.

2. Select SPIDER RT1 in the list of Bluetooth devices detected.

   • The headset will enter the Phone Pairing mode automatically when you initially turn on the headset.
   • For more information on phone pairing, refer to the User's Guide.

Using the Phone

Answer a Call

End a Call

Reject a call

Voice Dial

Music Control

Play/Pause

Track Forward

Track Backward

Mesh Intercom™

Open Mesh™: communication within the same channel.

Group Mesh™: communication within the same private group.

• For more information on Mesh Intercom, refer to the User's Guide.

Mesh Intercom On

Mesh Intercom Off

Note: When Mesh Intercom is on, the SPIDER RT1 will automatically connect to nearby SPIDER RT1 users and the headset will be in Open Mesh (default: channel 1) initially.

Open Mesh

Channel Setting (Default: channel 1) in Open Mesh

Using the Button

1. Enter into the Channel Setting.

2. Navigate between channels.
   (1 → 2 → ••• → 8 → 9 → Exit → 1 → •••)

3. Save the channel.


Using the SENA MOTORCYCLES App

You can select the channel through the SENA MOTORCYCLES App.

Group Mesh

Group Mesh is a closed group intercom function that allows users to join, leave, or rejoin a group intercom conversation without pairing each headset.

Creating a Group Mesh

Creating a Group Mesh requires two or more Open Mesh users.

Open Mesh


Group Mesh

1. Users (You, B, and C) enter into Mesh Grouping to create a Group Mesh.

2. When Mesh Grouping is completed, the users (You, B and C) will hear a voice prompt on their headset as Open Mesh switches to Group Mesh.


Joining an Existing Group Mesh

One of the current users in an Existing Group Mesh can allow new users (one or more) in Open Mesh to join the Existing Group Mesh.

Existing Group Mesh

1. One (You) of the current users in the Existing Group Mesh and new users (D and F) in Open Mesh enter into Mesh Grouping to join the Existing Group Mesh.

2. When Mesh Grouping is completed, the new users (D and F) will hear a voice prompt on their headset as Open Mesh switches to Group Mesh.


Enable/Disable Mic (Default: Enable)

Users can enable/disable the microphone when communicating in a Mesh Intercom.

Reset Mesh

If a headset in an Open Mesh or Group Mesh resets the Mesh, it will automatically return to Open Mesh (default: channel 1).

Configuration Menu

Accessing the Configuration Menu

Navigating Between Menu Options

Execute Menu Options

Troubleshooting

Factory Reset

Fault Reset

Note: Fault Reset will not restore the headset to the factory default settings.

Quick Reference

TYPE	OPERATION	BUTTON COMMANDS
Basic Operations	Power on / Power off
	Volume up / Volume down
Mobile Phone	Answer phone call
	End phone call
	Reject phone call
	Voice Dial
Music	Play/Pause music
	Track forward
	Track backward
Mesh Intercom™	Mesh Intercom on/off
	Channel setting
	Mesh Grouping
	Reset Mesh
	Enable/Disable Mic

Downloadable Sena Software

Download the SENA MOTORCYCLES App at Google Play Store or App Store.

SENA MOTORCYCLES

Download the following items at sena.com.

• Firmware
• Sena Device Manager
  • Firmware upgrade
  • Device configuration setting
• Quick Start Guide, User's Guide

Follow us on Facebook, YouTube, Twitter and Instagram to check the latest information and helpful tips.

SENA Technologies, Inc.
Customer Support: sena.com

2.0.0_EN_June2022
