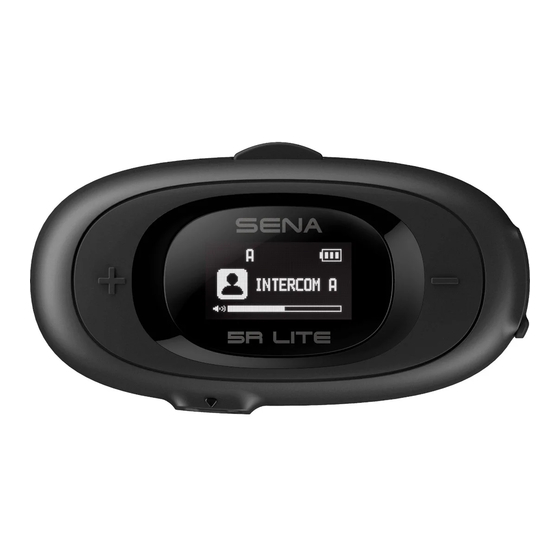

Sena 5R LITE User Manual

Motorcycle bluetooth communication system
Hide thumbs Also See for 5R LITE:
Table of Contents

Advertisement

Quick Links

Download this manual
5R LITE
MOTORCYCLE BLUETOOTH
®
COMMUNICATION SYSTEM
USER'S GUIDE
Version 1.0.0
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5R LITE and is the answer not in the manual?

Questions and answers

Chris Longson
April 29, 2025

Can you auto answer a phone call without pressing a button?

0

Related Manuals for Sena 5R LITE

Summary of Contents for Sena 5R LITE

  • Page 1 5R LITE MOTORCYCLE BLUETOOTH ® COMMUNICATION SYSTEM USER’S GUIDE Version 1.0.0 ENGLISH...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ABOUT THE 5R LITE 1.1 Product Features 1.2 Product Details 1.3 Package Contents INSTALLING THE HEADSET ON YOUR HELMET 2.1 Preparing the Helmet for Installation 2.2 Using the Clamp for Headset Main Unit 2.3 Using the Glued Surface Mounting Adapter for Headset Main Unit 2.4 Installing the Speakers...
  • Page 3 OTHER BLUETOOTH DEVICES 4.1 Phone Pairing 4.1.1 Initially Pairing the 5R LITE 4.1.2 Pairing When the 5R LITE is Turned Off 4.1.3 Pairing When the 5R LITE is Turned On 4.2 Second Mobile Phone Pairing - Second Mobile Phone, GPS, and SR10 4.3 GPS Pairing...
  • Page 4 TABLE OF CONTENTS CONTINUED UNIVERSAL INTERCOM 8.1 Universal Intercom Pairing 8.2 Two-Way Universal Intercom FUNCTION PRIORITY AND FIRMWARE UPGRADES 9.1 Function Priority 9.2 Firmware Upgrades 10. CONFIGURATION SETTING 10.1 Headset Configuration Menu 10.1.1 Delete All Pairings 10.1.2 Remote Control Pairing 10.2 Software Configuration Setting 10.2.1 Headset Language...

  • Page 5: About The 5R Lite

    1. ABOUT THE 5R LITE 1.1 Product Features Bluetooth ® Intercom up to 1 km (0.6 mi)* Two-way Intercom Audio Multitasking™ LCD Display Firmware Upgradeable * in open terrain 5R LITE Motorcycle Bluetooth Communication System | 5 ®...

  • Page 6: Product Details

    1 ABOUT THE 5R LITE 1.2 Product Details (+) Button Multi-function Button (-) Button LCD Display Speakers and DC Power Charging & Microphone Port Firmware Upgrade Port 5R LITE Motorcycle Bluetooth Communication System | 6 ®...

  • Page 7: Package Contents

    1 ABOUT THE 5R LITE 1.3 Package Contents Speakers and 5R LITE Clamp Boom Microphone cable Glued Surface Hook and Loop Speaker Sponges Mounting Adapter Fasteners for Speakers USB Power & Data Cable Microphone Sponges (USB-C) 5R LITE Motorcycle Bluetooth Communication System | 7 ®...

  • Page 8: Installing The Headset On Your Helmet

    1. Insert the headset main unit into the clamp using the two connecting slots on the back. 2. Insert the back plate of the clamp unit between the internal padding and external shell of the left side of the helmet. 5R LITE Motorcycle Bluetooth Communication System | 8 ®...

  • Page 9: Using The Glued Surface Mounting Adapter For Headset Main Unit

    3. Peel off the cover of adhesive tape of the glued surface mounting adapter and attach it to the left side of your helmet. 5R LITE Motorcycle Bluetooth Communication System | 9 ®...

  • Page 10: Installing The Speakers

    Then, attach the hook and loop fasteners for speakers to the ear pockets inside the helmet. 2. Attach the speakers to the hook and loop fasteners for speakers inside the helmet. 5R LITE Motorcycle Bluetooth Communication System | 10 ®...

  • Page 11: Cables Organization

    Make sure that the microphone is located properly close to your mouth when you wear the helmet. Adjust the direction of the microphone so that the fin side of the microphone is facing outward, away from your lips. 5R LITE Motorcycle Bluetooth Communication System | 11 ®...

  • Page 12: Getting Started

    3. GETTING STARTED 3.1 Downloadable Sena Software 3.1.1 SENA MOTORCYCLES App By simply pairing your phone with your headset, you can use the SENA MOTORCYCLES App for quicker, easier set up and management. SENA MOTORCYCLES • Device Configuration Setting • Download the SENA MOTORCYCLES App on Google Play Store Store.

  • Page 13: Legend

    3 GETTING STARTED Note: • Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC, or other locally approved agencies. • Use of a non-approved charger may cause fire, explosion, leakage, and other hazards which may also reduce the life time or performance of the battery.

  • Page 14: Checking The Battery Level

    You can raise or lower the volume by tapping the (+) Button or the (-) Button. Volume is set and maintained independently at different levels for each audio source (i.e., phone, intercom), even when the headset is rebooted. Volume Up & Down 5R LITE Motorcycle Bluetooth Communication System | 14 ®...

  • Page 15: Pairing The Headset With Other Bluetooth Devices

    The headset can pair with multiple Bluetooth devices such as a mobile phone, GPS, MP3 player or Sena SR10 Two-Way Radio Adapter via Mobile Phone Pairing and Second Mobile Phone Pairing.

  • Page 16: Pairing When The 5R Lite Is Turned Off

    • The phone pairing mode lasts for 3 minutes. • To cancel phone pairing, tap the Multi-function Button. 4.1.2 Pairing When the 5R LITE is Turned Off 1. While the headset is off, press and hold the (+) Button and the (-) Button until the LCD display screen changes to the phone pairing screen and you hear a voice prompt, “Phone pairing.”...

  • Page 17: Second Mobile Phone Pairing - Second Mobile Phone, Gps, And Sr10

    4 PaIRIng ThE hEadSET wITh oThER BLuETooTh dEvICES 2. Tap the (+) Button. “ Phone pairing” 3. Select 5R LITE in the list of Bluetooth devices detected. If your Bluetooth mobile phone asks for a PIN, enter 5R LITE 0000.

  • Page 18: Gps Pairing

    1. Press and hold the Multi-function Button for 10 seconds. “ Configuration menu” HOLD 2. Tap the (+) Button 3 times. “ GPS pairing” 3. Select 5R LITE in the list of devices detected. If your Bluetooth device Bluetooth asks for a PIN, enter 0000. 5R LITE...

  • Page 19: Advanced Selective Pairing: Hands-Free Or A2Dp Stereo

    1. Press and hold the Multi-function Button for 10 seconds. “ Configuration menu” HOLD 2. Tap the (+) Button 4 times. “ Phone selective pairing” 3. Select 5R LITE in the list of Bluetooth devices detected. If your Bluetooth mobile phone asks for a PIN, enter 5R LITE 0000.

  • Page 20: Media Selective Pairing - A2Dp Profile

    1. Press and hold the Multi-function Button for 10 seconds. “ Configuration menu” HOLD 2. Tap the (+) Button 5 times. “ Media selective pairing” 3. Select 5R LITE in the list of Bluetooth devices detected. If your Bluetooth mobile phone asks for a PIN, enter 5R LITE 0000.

  • Page 21: Mobile Phone Usage

    Reject a Call HOLD Make a Call with Voice Dialer In stand-by HOLD mode Note: If you have a GPS device connected, you will not hear its voice navigations during a phone call. 5R LITE Motorcycle Bluetooth Communication System | 21 ®...

  • Page 22: Speed Dialing

    5 MOBILE PHONE USAGE 5.2 Speed Dialing 5.2.1 Assigning Speed Dial Presets Speed Dial Presets could be assigned through the SENA MOTORCYCLES App. 5.2.2 Using Speed Dial Presets 1. Enter into the Speed Dial menu. “ Speed dial” HOLD 2. Navigate forward or backward through Speed Dial Preset numbers.
  • Page 23 5 MOBILE PHONE USAGE 3. Call one of your Speed Dial Presets numbers. “ Speed dial (#)” 4. Redial the last number called. “ Last number redial” 5R LITE Motorcycle Bluetooth Communication System | 23 ®...

  • Page 24: Stereo Music

    6. STEREO MUSIC 6.1 Bluetooth Stereo Music Play/Pause Music HOLD Next Track Previous Track HOLD HOLD 5R LITE Motorcycle Bluetooth Communication System | 24 ®...

  • Page 25: Music Sharing

    GPS instructions. • When Audio Multitasking is enabled, if an intercom call is made when you are listening to music, music sharing will not work. Start/Terminate Sharing Music “[Beep, Beep]” HOLD 5R LITE Motorcycle Bluetooth Communication System | 25 ®...

  • Page 26: Bluetooth Intercom

    7.1.1 Using the Smart Intercom Pairing (SIP) SIP allows you to quickly pair with your friends for intercom communication by scanning the QR code on the SENA MOTORCYCLES App without remembering the button operation. 1. Pair the mobile phone with the headset.

  • Page 27: Using The Button

    5. Tap Scan ) and repeat steps 3-4 to pair with Intercom Friends (C) and (D). Note: The Smart Intercom Pairing (SIP) is not compatible with Sena products that use Bluetooth 3.0 or below. 7.1.2 Using the Button Users (You, B) enter into Intercom Pairing.

  • Page 28: Last-Come, First-Served

    Friend of headset (A). headset (C) is the Second Intercom Friend of headset (A), and headset (B) is the Third Intercom Friend of headset (A). Intercom Pairing Order Last-Come, First-Served Intercom Friend1 Intercom Intercom Friend1 Friend2 Intercom Intercom Intercom Friend1 Friend2 Friend3 5R LITE Motorcycle Bluetooth Communication System | 28 ®...

  • Page 29: Two-Way Intercom

    Friend3 Start/End Conversation with the First Intercom Friend D Intercom Friend1 Start/End Conversation with the Second Intercom Friend C Intercom Friend2 Start/End Conversation with the Third Intercom Friend B Intercom Friend3 5R LITE Motorcycle Bluetooth Communication System | 29 ®...

  • Page 30: Universal Intercom

    Universal Intercom allows you to have intercom conversations with users of non-Sena Bluetooth headsets. Non-Sena Bluetooth headset can be connected to the Sena headset if they support the Bluetooth Hands-Free Profile (HFP). You can pair the headset with only one non-Sena headset at a time.

  • Page 31: Two-Way Universal Intercom

    8 UNIVERSAL INTERCOM 8.2 Two-Way Universal Intercom You can initiate the Universal Intercom connection with non-Sena Bluetooth headsets using the same intercom connection method as you would between other Sena headsets. Non-Sena Headset You may start/end a Two-Way Universal Intercom using the same way as you do in a normal Two-Way Intercom.

  • Page 32: Function Priority And Firmware Upgrades

    The USB Power & Data Cable (USB-C) must be connected to your PC to upgrade firmware using the Sena Device Manager. Please visit sena.com to check for the latest software downloads. Click Here to Visit sena.com 5R LITE Motorcycle Bluetooth Communication System | 32 ®...

  • Page 33: Configuration Setting

    Second Mobile Phone Pairing None GPS Pairing None Phone Selective Pairing None Media Selective Pairing None Delete All Pairings Execute Remote Control Pairing Execute Universal Intercom Pairing Execute Factory Reset Execute Exit Execute 5R LITE Motorcycle Bluetooth Communication System | 33 ®...

  • Page 34: Delete All Pairings

    Remote Control device in pairing mode. 10.2 Software Configuration Setting You can change the settings of the headset through the SENA MOTORCYCLES App or the Sena Device Manager. SENA MOTORCYCLES Sena Device Manager 5R LITE Motorcycle Bluetooth Communication System | 34 ®...
  • Page 35 In this case, you have to tap the Multi-function Button to restart the intercom. This is to prevent repeated unintentional intercom connections by strong wind noise. After rebooting the headset, you can start the intercom by voice again. 5R LITE Motorcycle Bluetooth Communication System | 35 ®...
  • Page 36 The volume of the foreground audio can be adjusted using the headset. How much background audio that is heard can be adjusted using the Sena Device Manager or the SENA MOTORCYCLES App. HD Intercom, HD Voice, and Audio Source Priority become disabled temporarily when Audio Multitasking is enabled.

  • Page 37: Advanced Noise Control™ (Always On)

    - Headset configuration settings menu, battery level indicator, speed dial 10.2.10 Advanced Noise Control™ (Always On) The background noise is reduced during an intercom conversation. 5R LITE Motorcycle Bluetooth Communication System | 37 ®...

  • Page 38: Troubleshooting

    11. TROUBLESHOOTING Please visit sena.com for more troubleshooting information. • Customer Support: sena.com 11.1 Fault Reset When the headset is not working properly, you can easily reset the unit: 1. Locate the Pinhole Fault Reset Button below on the back of the main unit.

  • Page 39: Factory Reset

    To erase all of your settings and start fresh, the headset can be restored to factory default settings using the Factory Reset feature. “ Configuration menu” HOLD “ Factory reset” “ Headset reset, good-bye” 5R LITE Motorcycle Bluetooth Communication System | 39 ®...
  • Page 40 ® for Bluetooth capabilities. The Bluetooth word mark and logos are owned by the Bluetooth ® SIG, Inc. and any use of such marks by Sena is under license. iPhone and iPod touch are registered trademarks of Apple Inc. ®...
