USER GUIDE
Firmware Version: 2.3.x
Last updated on Dec 13, 2024
SPIDER RT1
MOTORCYCLE MESH COMMUNICATION SYSTEM
The firmware version 2.3.x indicates that this manual is applicable to all
firmware updates within the version 2.3 series.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPIDER RT1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sena SPIDER RT1

Summary of Contents for Sena SPIDER RT1

  • Page 1 USER GUIDE Firmware Version: 2.3.x Last updated on Dec 13, 2024 SPIDER RT1 MOTORCYCLE MESH COMMUNICATION SYSTEM The firmware version 2.3.x indicates that this manual is applicable to all firmware updates within the version 2.3 series.
  • Page 2 TABLE OF CONTENTS ABOUT THE SPIDER RT1 1.1 Product Features 1.2 Product Details 1.3 Package Contents INSTALLING THE HEADSET ON YOUR HELMET 2.1 Installing the Main Unit 2.1.1 Using the Hook and Loop Fasteners for Main Unit 2.1.2 Using the Double Sided Adhesive Tapes for Main Unit 2.1.3...
  • Page 3 TABLE OF CONTENTS CONTINUED 4.2 Second Mobile Phone Pairing 4.3 GPS Pairing MOBILE PHONE USAGE 5.1 Making and Answering Calls 5.2 Speed Dialing 5.2.1 Assigning Speed Dial Presets 5.2.2 Using Speed Dial Presets 5.3 HD Voice (Always On) STEREO MUSIC 6.1 Playing Music with Bluetooth Devices MESH INTERCOM 7.1 What is Mesh Intercom?
  • Page 4 TABLE OF CONTENTS CONTINUED FUNCTION PRIORITY AND FIRMWARE UPDATE 29 9.1 Function Priority 9.2 Firmware Update 10. CONFIGURATION SETTING 10.1 Headset Configuration Menu 10.1.1 Remote Control Pairing 10.2 Software Configuration Setting 10.2.1 Language 10.2.2 Mesh Reach-Out (Default: Disable) 10.2.3 Equalizer (Default: Off) 10.2.4 VOX Phone (Default: Enable) 10.2.5...
  • Page 5 • Mesh Intercom 3.0 - delivers improved sound quality, a more robust connection, and extended talk time • Dual version Mesh - Mesh 2.0 for backward compatibility Audio Multitasking™ Advanced Noise Control™ Bluetooth ® Over-The-Air (OTA) Firmware Update SPIDER RT1 Motorcycle Mesh Communication System | 5...

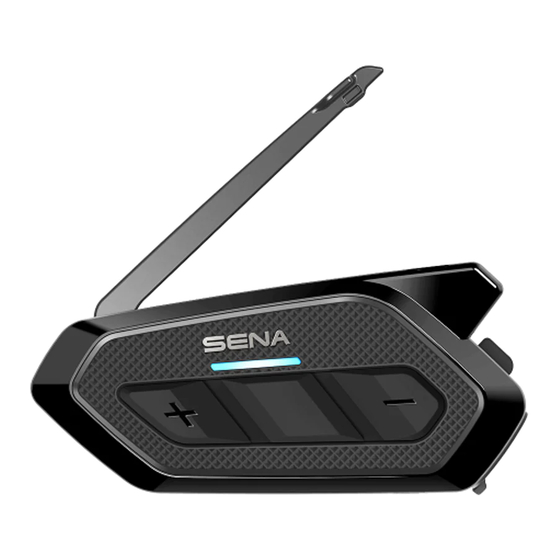

  • Page 6 1 ABOUT THE SPIDER RT1 1.2 Product Details Mesh Intercom Button (-) Button Center Button (+) Button Mesh Intercom Antenna Status LED DC Power Speaker Charging & Connectors Firmware Upgrade Port Microphone Connector SPIDER RT1 Motorcycle Mesh Communication System | 6...
  • Page 7 Microphone Boom for Wired Microphone Microphone Hook and Loop Microphone Speakers Speaker Pads Fasteners for Sponges Speakers USB Power & Boom Microphone Hook and Loop Data Cable Holder Fastener for Holder (USB-C) SPIDER RT1 Motorcycle Mesh Communication System | 7...
  • Page 8 4. Attach the main unit using the hook and loop fasteners that you fitted. Make sure that the main unit is firmly attached to the helmet. SPIDER RT1 Motorcycle Mesh Communication System | 8...
  • Page 9 2. Peel off the cover from one side of the double sided adhesive tapes for main unit and attach it to the back plate of the main unit. SPIDER RT1 Motorcycle Mesh Communication System | 9...
  • Page 10 2. Attach the speakers to the hook and loop fasteners for speakers inside the helmet. 3. Align the arrows on the main unit and speaker cables and insert speaker cables into each speaker connector. SPIDER RT1 Motorcycle Mesh Communication System | 10...
  • Page 11 • After you install the wired boom microphone, make sure you reinstall the helmet’s internal padding. • You can use the boom microphone holder after attaching the hook and loop fastener for boom microphone holder on it to ensure secure installation. SPIDER RT1 Motorcycle Mesh Communication System | 11...
  • Page 12 Then, attach the hook and loop fastener on the inside of the helmet’s chin guard. 2. Attach the wired microphone to the hook and loop fastener for wired microphone. SPIDER RT1 Motorcycle Mesh Communication System | 12...
  • Page 13 3. Align the arrows on the main unit and microphone cables and insert the microphone cable into the microphone connector. Note: The shortest cable is for the microphone. 2.4 External Mesh Intercom Antenna Pull the Mesh Intercom Antenna inwards slightly to unfold it. SPIDER RT1 Motorcycle Mesh Communication System | 13...
  • Page 14 2.0 hours of Mesh communication after charging the headset for 20 minutes. • Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies.
  • Page 15 Instructions are for when powering the headset on. Powering On HOLD “ Battery level is high/medium/low” Note: When the battery is low while in use, you will hear a voice prompt saying “Low battery.” SPIDER RT1 Motorcycle Mesh Communication System | 15...
  • Page 16 0000. Device B Note: • When you turn on the SPIDER RT1 for the first time or reboot it after a factory reset, the SPIDER RT1 will automatically enter phone pairing mode. • To cancel phone pairing, press any button.
  • Page 17 HOLD “ Configuration menu” 2. Tap the (+) Button. Blinking “ Second mobile phone pairing” 3. Select SPIDER RT1 in the list of Bluetooth devices detected. If your Bluetooth Bluetooth device asks for a PIN, SPIDER RT1 enter 0000. Device B 4.3 GPS Pairing...
  • Page 18 HOLD HOLD mode 5.2 Speed Dialing 5.2.1 Assigning Speed Dial Presets Speed Dial Presets could be assigned through the Sena Device Manager or the Sena Motorcycles App. 5.2.2 Using Speed Dial Presets 1. Enter into the Speed Dial menu. HOLD “...
  • Page 19 This feature increases the quality so that the audio will be crisp and clear during phone call conversations. Note: Refer to the manufacturer of your Bluetooth device that will be connected to the headset to see if it supports HD Voice. SPIDER RT1 Motorcycle Mesh Communication System | 19...
  • Page 20 6. STEREO MUSIC 6.1 Playing Music with Bluetooth Devices Play/Pause Music HOLD Track Forward/Backward HOLD HOLD SPIDER RT1 Motorcycle Mesh Communication System | 20...
  • Page 21 The working distance between each SPIDER RT1 in Mesh Intercom can be up to 1.2 mi (2 km) in open terrain. In open terrain, the Mesh can be extended up to 5 mi (8 km) between a minimum of six users.
  • Page 22 Mesh needs to be created by the users. When users create a private group in Group Mesh by Mesh Grouping, the headset automatically switches from Open Mesh to Group Mesh. Up to 24 users can all be connected in each private group. Group Mesh SPIDER RT1 Motorcycle Mesh Communication System | 22...
  • Page 23 7 MESH INTERCOM 7.2 Starting Mesh Intercom When Mesh Intercom is enabled, the SPIDER RT1 will automatically connect to nearby SPIDER RT1 users and allow them to talk to each other. Mesh Intercom On Blinking “ Mesh intercom on, Open Mesh, channel 1”...
  • Page 24 • The channel will be remembered even if you turn off the SPIDER RT1. • You can use the Sena Motorcycles App to change the channel. 7.5 Using Mesh in Group Mesh 7.5.1 Creating a Group Mesh...
  • Page 25 “ Mesh grouping” 2. When Mesh Grouping is completed, the new users (D and F) will hear a voice prompt on their headset as Open Mesh switches to Group Mesh. “ Group Mesh” SPIDER RT1 Motorcycle Mesh Communication System | 25...
  • Page 26 HOLD “Group Mesh” Group Mesh Note: If you have never participated in Group Mesh, you cannot toggle between Open Mesh and Group Mesh. You will hear a voice prompt, “No group available.” SPIDER RT1 Motorcycle Mesh Communication System | 26...
  • Page 27 “ Mesh intercom requested” 3. Friends who receive the request message need to manually turn on their Mesh Intercom using the headset’s Button or the Sena Motorcycles App. Note: • *: Up to 109 yds (100 m) in open terrain •...
  • Page 28 Management settings. The Intercom-Audio Overlay Sensitivity and the Audio Overlay Volume Management settings can be found in the Software Configuration Setting, accessible through the Sena Device Manager or the Sena Motorcycles App. SPIDER RT1 Motorcycle Mesh Communication System | 28...
  • Page 29 9.2 Firmware Update You can update the firmware via Over-The-Air (OTA) directly from the settings in the Sena Motorcycles App or via the Sena Device Manager by connecting the SPIDER RT1 to your PC. Download the Sena Device Manager at sena.com.
  • Page 30 Execute Exit Execute 10.1.1 Remote Control Pairing You can remotely control the headset using Sena Remote Control devices (sold separately). 1. Turn on the headset and the Remote Control device. 2. Execute Remote Control Pairing. 3. Enter pairing mode in the Remote Control device. The headset will automatically connect with the Remote Control device in pairing mode.
  • Page 31 10 CONFIGURATION SETTING 10.2 Software Configuration Setting You can change the settings of the headset through the Sena Device Manager or the Sena Motorcycles App. 10.2.1 Language You can select the device language. The selected language is maintained even when the headset is rebooted.
  • Page 32 - Headset configuration settings menu, battery level indicator, speed dial 10.2.9 Advanced Noise Control™ (Always On) The background noise is reduced during an intercom conversation. SPIDER RT1 Motorcycle Mesh Communication System | 32...
  • Page 33 To erase all of your settings and start fresh, the headset can be restored to factory default settings using the Factory Reset feature. HOLD “Configuration menu” “Factory reset” “ Headset reset, good-bye” SPIDER RT1 Motorcycle Mesh Communication System | 33...
  • Page 34 Hero3 and Hero4 allowing for Bluetooth capabilities. ® The Bluetooth word mark and logos are owned by the Bluetooth SIG, ® Inc. and any use of such marks by Sena is under license. iPhone ® iPod touch are registered trademarks of Apple Inc. ®...
